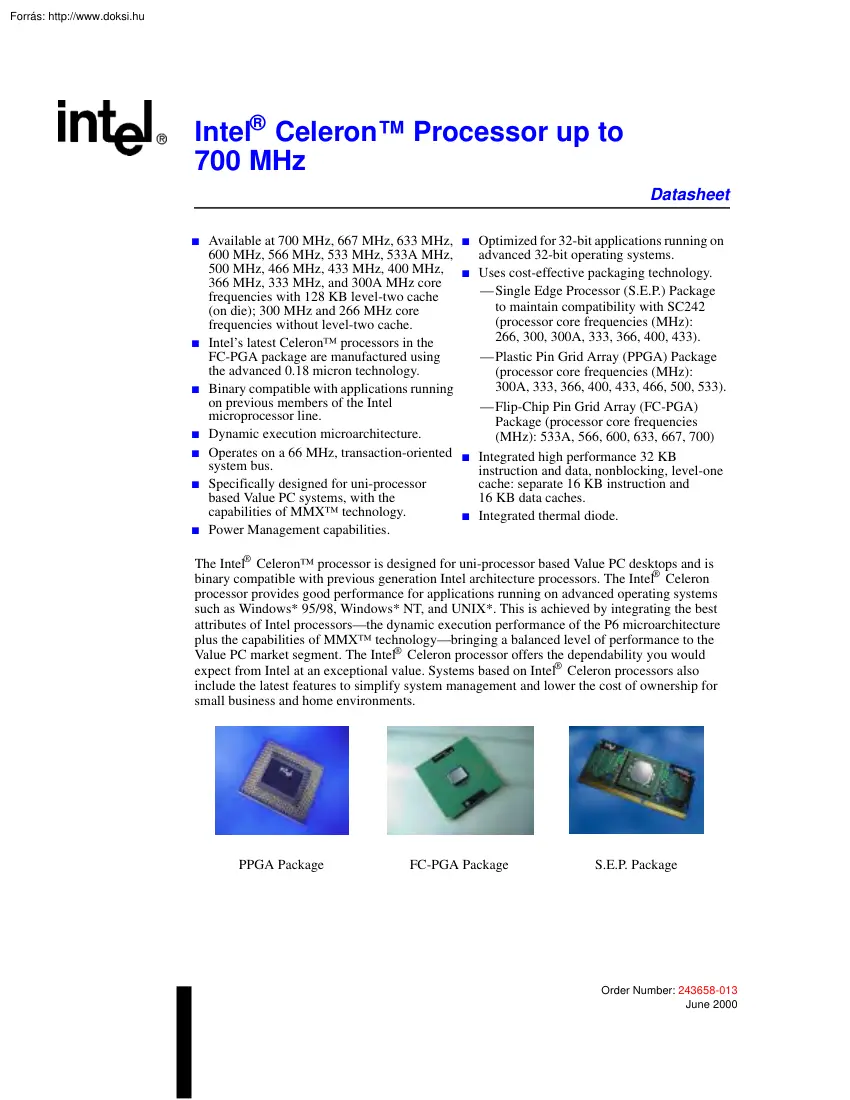

Intel® Celeron™ Processor up to 700 MHz Datasheet Available at 700 MHz, 667 MHz, 633 MHz, ■ Optimized for 32-bit applications running on 600 MHz, 566 MHz, 533 MHz, 533A MHz, advanced 32-bit operating systems. 500 MHz, 466 MHz, 433 MHz, 400 MHz, ■ Uses cost-effective packaging technology. 366 MHz, 333 MHz, and 300A MHz core Single Edge Processor (S.EP) Package frequencies with 128 KB level-two cache to maintain compatibility with SC242 (on die); 300 MHz and 266 MHz core (processor core frequencies (MHz): frequencies without level-two cache. 266, 300, 300A, 333, 366, 400, 433). ■ Intel’s latest Celeron™ processors in the Plastic Pin Grid Array (PPGA) Package FC-PGA package are manufactured using the advanced 0.18 micron technology (processor core frequencies (MHz): 300A, 333, 366, 400, 433, 466, 500, 533). ■ Binary compatible with applications running on previous members of the Intel Flip-Chip Pin Grid Array (FC-PGA) microprocessor line. Package (processor core

frequencies ■ Dynamic execution microarchitecture. (MHz): 533A, 566, 600, 633, 667, 700) ■ Operates on a 66 MHz, transaction-oriented ■ Integrated high performance 32 KB system bus. instruction and data, nonblocking, level-one ■ Specifically designed for uni-processor cache: separate 16 KB instruction and based Value PC systems, with the 16 KB data caches. capabilities of MMX™ technology. ■ Integrated thermal diode. ■ Power Management capabilities. ■ The Intel® Celeron™ processor is designed for uni-processor based Value PC desktops and is binary compatible with previous generation Intel architecture processors. The Intel® Celeron processor provides good performance for applications running on advanced operating systems such as Windows* 95/98, Windows NT, and UNIX. This is achieved by integrating the best attributes of Intel processorsthe dynamic execution performance of the P6 microarchitecture plus the capabilities of MMX™ technologybringing a balanced level of

performance to the Value PC market segment. The Intel® Celeron processor offers the dependability you would expect from Intel at an exceptional value. Systems based on Intel® Celeron processors also include the latest features to simplify system management and lower the cost of ownership for small business and home environments. PPGA Package FC-PGA Package S.EP Package Order Number: 243658-013 June 2000 Information in this document is provided in connection with Intel products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual

property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructuions marked “reserved“ or “undefined“. Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or imcompatibilities arising from future changes to them. The Intel Celeron™ processor may contain design defects or errors known as errata which may cause the product to deviate from published specifcations. Current characterized errata are available on request Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an ordering number and are referenced in this document, or other Intel literature may be obtained by calling 1-800-548-4725 or

by visiting Intel's website at http://www.intelcom Copyright Intel Corporation, 1996, 1997, 1998, 1999. 2000 *Third-party brands and names are the property of their respective owners. Datasheet Intel® Celeron™ Processor up to 700 MHz Contents 1.0 Introduction. 9 1.1 1.2 2.0 Electrical Specifications.13 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 2.10 2.11 2.12 3.0 System Bus and Vref.13 Clock Control and Low Power States.13 2.21 Normal StateState 1 14 2.22 AutoHALT Power Down StateState 2 14 2.23 Stop-Grant StateState 3 15 2.24 HALT/Grant Snoop StateState 4 15 2.25 Sleep StateState 515 2.26 Deep Sleep StateState 6 16 2.27 Clock Control16 Power and Ground Pins .16 2.31 Phase Lock Loop (PLL) Power17 Processor Decoupling .17 2.41 System Bus AGTL+ Decoupling17 Voltage Identification .17 System Bus Unused Pins.19 Processor System Bus Signal Groups .19 2.71 Asynchronous Vs Synchronous for System Bus Signals 21 2.72 System Bus Frequency Select Signal (BSEL[1:0])21 Test Access

Port (TAP) Connection.21 Maximum Ratings.21 Processor DC Specifications.22 AGTL+ System Bus Specifications .28 System Bus AC Specifications .29 System Bus Signal Simulations.44 3.1 3.2 3.3 3.4 Datasheet Terminology. 9 1.11 Package Terminology10 1.12 Processor Naming Convention11 References .12 System Bus Clock (BCLK) Signal Quality Specifications and Measurement Guidelines .44 AGTL+ Signal Quality Specifications and Measurement Guidelines .47 Non-AGTL+ Signal Quality Specifications and Measurement Guidelines.49 3.31 Overshoot/Undershoot Guidelines 49 3.32 Ringback Specification 50 3.33 Settling Limit Guideline51 AGTL+ Signal Quality Specifications and Measurement Guidelines (FC-PGA Package) .51 3.41 Overshoot/Undershoot Guidelines (FC-PGA Package) 51 3.42 Overshoot/Undershoot Magnitude (FC-PGA Package) 51 3.43 Overshoot/Undershoot Pulse Duration (FC-PGA Package)52 3.44 Activity Factor (FC-PGA Package)52 3.45 Reading Overshoot/Undershoot Specification Tables (FC-PGA Package).53 3

Intel® Celeron™ Processor up to 700 MHz 3.46 4.0 Thermal Specifications and Design Considerations. 56 4.1 5.0 5.2 5.3 5.4 5.5 6.2 6.3 Mechanical Specifications for the Boxed Intel® Celeron™ Processor . 99 6.11 Mechanical Specifications for the SEP Package 99 6.111 Boxed Processor Heatsink Weight 101 6.112 Boxed Processor Retention Mechanism 101 6.12 Mechanical Specifications for the PPGA Package 102 6.121 Boxed Processor Heatsink Dimensions 104 6.122 Boxed Processor Heatsink Weight 104 6.13 Mechanical Specifications for the FC-PGA Package 104 6.131 Boxed Processor Heatsink Weight 106 Thermal Specifications. 106 6.21 Thermal Requirements for the Boxed Intel® Celeron™ Processor 106 6.211 Boxed Processor Cooling Requirements 106 6.212 Boxed Processor Thermal Cooling Solution Clip 107 Electrical Requirements for the Boxed Intel® Celeron™ Processor. 108 6.31 Electrical Requirements 108 Intel® Celeron™ Processor Signal Description . 111 7.1 4 S.EP Package

60 5.11 Materials Information 60 5.12 Signal Listing (S.EP Package) 61 PPGA Package . 70 5.21 PPGA Package Materials Information 70 5.22 PPGA Package Signal Listing 72 FC-PGA Package. 83 5.31 Materials Information 83 5.32 Processor Markings 85 FC-PGA Signal List . 86 Heat Sink Volumetric Keepout Zone Guidelines . 98 Boxed Processor Specifications. 99 6.1 7.0 Thermal Specifications. 56 4.11 Thermal Diode 58 Mechanical Specifications. 60 5.1 6.0 Determining if a System meets the Overshoot/Undershoot Specifications (FC-PGA Package) . 54 Signal Summaries . 117 Datasheet Intel® Celeron™ Processor up to 700 MHz Figures 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 Datasheet Clock Control State Machine.14 BCLK to Core Logic Offset .40 BCLK*, PICCLK, and TCK Generic Clock Waveform .40 System Bus Valid Delay Timings .41 System Bus Setup and Hold Timings.41 System Bus Reset and Configuration Timings (For the S.EP

and PPGA Packages)41 System Bus Reset and Configuration Timings (For the FC-PGA Package) .42 Power-On Reset and Configuration Timings.42 Test Timings (TAP Connection) .43 Test Reset Timings .43 BCLK, TCK, PICCLK Generic Clock Waveform at the Processor Core Pins .45 BCLK, TCK, PICCLK Generic Clock Waveform at the Processor Edge Fingers.46 Low to High AGTL+ Receiver Ringback Tolerance.48 Non-AGTL+ Overshoot/Undershoot, Settling Limit, and Ringback .49 Maximum Acceptable AGTL+ Overshoot/Undershoot Waveform (FC-PGA Package) .55 Processor Functional Die Layout .58 Processor Substrate Dimensions (S.EP Package) 61 Processor Substrate Primary/Secondary Side Dimensions (S.EP Package)61 Package Dimensions (PPGA Package) .70 PPGA Package (Pin Side View).72 Package Dimensions (FC-PGA Package).83 Top Side Processor Markings (PPGA and FC-PGA Packages) .85 Package Dimensions (FC-PGA Package).86 Retention Mechanism for the Boxed Intel® Celeron™ Processor in the S.EP Package 100 Side View Space

Requirements for the Boxed Processor in the S.EP Package 100 Front View Space Requirements for the Boxed Processor the S.EP Package 101 Boxed Intel® Celeron™ Processor in the PPGA Package.102 Side View Space Requirements for the Boxed Processor in the PPGA Package.102 Top View Space Requirements for the Boxed Processor in the FC-PGA and PPGA Packages .103 Side View Space Requirements for the Boxed Processor ‘in the FC-PGA and PPGA Packages .103 Boxed Intel® Celeron™ processor in the 370-pin socket (FC-PGA Package) .105 Dimensions of Notches in Heatsink Base .105 Dimensions of Mechanical Step Feature in Heatsink Base for the FC-PGA Package .106 Top View Airspace Requirements for the Boxed Processor in the S.EP Package 107 Side View Airspace Requirements for the Boxed Intel® Celeron™ Processor in the FC-PGA and PPGA packages .107 Clip Keepout Requirements for the 370-Pin (Top View) .108 Boxed Processor Fan Heatsink Power Cable Connector Description.109 Motherboard Power Header

Placement for the S.EP Package109 Motherboard Power Header Placement Relative to the 370-pin Socket .110 5 Intel® Celeron™ Processor up to 700 MHz Tables 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 6 Processor Identification. 11 Voltage Identification Definition . 18 Intel® Celeron™ Processor System Bus Signal Groups . 20 Absolute Maximum Ratings . 22 Voltage and Current Specifications . 23 AGTL+ Signal Groups DC Specifications . 27 Non-AGTL+ Signal Group DC Specifications . 28 Processor AGTL+ Bus Specifications . 29 System Bus AC Specifications (Clock) at the Processor Edge Fingers (for S.EP Package) 30 System Bus AC Specifications (Clock) at the Processor Core Pins (for Both S.EP and PGA Packages) 31 Valid Intel® Celeron™ Processor System Bus, Core Frequency . 32 System Bus AC Specifications (AGTL+ Signal Group) at the Processor Edge Fingers (for S.EP Package) 32 System Bus AC Specifications (AGTL+ Signal Group) at the Processor

Core Pins (for S.EP Package) 33 Processor System Bus AC Specifications (AGTL+ Signal Group) at the Processor Core Pins (for PPGA Package) . 33 System Bus AC Specifications (AGTL+ Signal Group) at the Processor Core Pins (for FC-PGA Package) . 34 System Bus AC Specifications (CMOS Signal Group) at the Processor Edge Fingers (for S.EP Package) 34 System Bus AC Specifications (CMOS Signal Group) at the Processor Core Pins (for Both S.EP and PGA Packages) 35 System Bus AC Specifications (Reset Conditions) (for Both S.EP and PPGA Packages) 35 System Bus AC Specifications (Reset Conditions) (for the FC-PGA Package) . 36 System Bus AC Specifications (APIC Clock and APIC I/O) at the Processor Edge Fingers (for S.EP Package) 36 System Bus AC Specifications (APIC Clock and APIC I/O) at the Processor Core Pins (For S.EP and PGA Packages) 37 System Bus AC Specifications (TAP Connection) at the Processor Edge Fingers (For S.EP Package) 38 System Bus AC Specifications (TAP Connection) at the

Processor Core Pins (for Both S.EP and PPGA Packages) 39 BCLK Signal Quality Specifications for Simulation at the Processor Core (for Both S.EP and PPGA Packages) 44 BCLK/PICCLK Signal Quality Specifications for Simulation at the Processor Pins (for the FC-PGA Package) . 45 BCLK Signal Quality Guidelines for Edge Finger Measurement (for the S.EP Package) 46 AGTL+ Signal Groups Ringback Tolerance Specifications at the Processor Core (For Both the S.EP and PPGA Packages) 47 AGTL+ Signal Groups Ringback Tolerance Specifications at the Processor Pins (For FC-PGA Packages) . 47 AGTL+ Signal Groups Ringback Tolerance Guidelines for Edge Finger Measurement on the S.EP Package 48 Datasheet Intel® Celeron™ Processor up to 700 MHz 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 Datasheet Signal Ringback Specifications for Non-AGTL+ Signal Simulation at the Processor Core (S.EP and PPGA Packages) 50 Signal Ringback Guidelines for Non-AGTL+

Signal Edge Finger Measurement (S.EP Package) 50 Signal Ringback Specifications for Non-AGTL+ Signal Simulation at the Processor Pins (FC-PGA Package) .50 Example Platform Information .53 66 MHz AGTL+ Signal Group Overshoot/Undershoot Tolerance at Processor Pins (FC-PGA Package) .54 33 MHz CMOS Signal Group Overshoot/Undershoot Tolerance at Processor Pins (FC-PGA Package) .55 Processor Power for the S.EP Package 156 Processor Power for the PPGA and FC-PGA Packages 1 .57 Thermal Diode Parameters (S.EP and PPGA Packages) 458 Thermal Diode Parameters (FC-PGA Package) .59 Thermal Diode Interface.59 S.EP Package Signal Listing by Pin Number 62 S.EP Package Signal Listing by Signal Name 66 Package Dimensions (PPGA Package) .71 Information Summary (PPGA Package).71 PPGA Package Signal Listing by Pin Number .73 PPGA Package Signal Listing in Order by Signal Name.78 Package Dimensions.84 Processor Die Loading Parameters (FC-PGA Package) .84 FC-PGA Signal Listing in Order by Signal Name .87

FC-PGA Signal Listing in Order by Pin Number.93 Boxed Processor Fan Heatsink Spatial Dimensions for the S.EP Package 101 Boxed Processor Fan Heatsink Spatial Dimensions for the PPGA and FC-PGA Packages .104 Fan Heatsink Power and Signal Specifications.109 Alphabetical Signal Reference .111 Output Signals.117 Input Signals.117 Input/Output Signals (Single Driver).118 Input/Output Signals (Multiple Driver) .118 7 Intel® Celeron™ Processor up to 700 MHz THIS PAGE IS INTENTIONALLY LEFT BLANK. 8 Datasheet Intel® Celeron™ Processor up to 700 MHz 1.0 Introduction The Intel® Celeron™ processor is based on the P6 microarchitecture and is optimized for the Value PC market segment. The Intel Celeron processor, like the Pentium ® II processor, features a Dynamic Execution microarchitecture and executes MMX technology instructions for enhanced media and communication performance. The Intel Celeron processor also utilizes multiple lowpower states such as AutoHALT, Stop-Grant,

Sleep, and Deep Sleep to conserve power during idle times. The Intel Celeron processor is capable of running today’s most common PC applications with up to 4 GB of cacheable memory space. As this processor is intended for Value PC systems, it does not provide multiprocessor support. The Pentium II and Pentium ® III processors should be used for multiprocessor system designs. To be cost-effective at both the processor and system level, the Intel Celeron processor utilizes cost-effective packaging technologies. They are the SEP (Single-Edge Processor) package, the PPGA (Plastic Pin Grid Array) package, and the FC-PGA (Flip-Chip Pin Grid Array) package. Refer to the Intel® Celeron™ Processor Specification Update for the latest packaging and frequency support information (Order Number 243337). Note: 1.1 This datasheet describes the Intel Celeron processor for the PPGA package, FC-PGA package, and the S.EP Package versions Unless otherwise specified, the information in this document

applies to all versions and information on PGA packages, refer to both PPGA and FC-PGA packages. Terminology In this document, a ‘#’ symbol after a signal name refers to an active low signal. This means that a signal is in the active state (based on the name of the signal) when driven to a low level. For example, when FLUSH# is low, a flush has been requested. When NMI is high, a nonmaskable interrupt has occurred. In the case of signals where the name does not imply an active state but describes part of a binary sequence (such as address or data), the ‘#’ symbol implies that the signal is inverted. For example, D[3:0] = ‘HLHL’ refers to a hex ‘A’, and D[3:0]# = ‘LHLH’ also refers to a hex ‘A’ (H= High logic level, L= Low logic level). The term “system bus” refers to the interface between the processor, system core logic (a.ka the AGPset components), and other bus agents. The system bus is an interface to the processor, memory, and I/O. Datasheet 9

Intel® Celeron™ Processor up to 700 MHz 1.11 Package Terminology The following terms are used often in this document and are explained here for clarification: • Processor substrateThe structure on which passive components (resistors and capacitors) are mounted. • Processor coreThe processor’s execution engine. • S.EP PackageSingle-Edge Processor Package, which consists of a processor substrate, processor core, and passive components. This package differs from the SEC Cartridge as this processor has no external plastic cover, thermal plate, or latch arms. • PPGA packagePlastic Pin Grid Array package. The package is a pinned laminated printed circuit board structure. • FC-PGA - Flip-Chip Pin Grid Array. The FC-PGA uses the same 370-pin zero insertion force socket (PGA370) as the PPGA. Thermal solutions are attached directly to the back of the processor core package without the use of a thermal plate or heat spreader. • Keep-out zone - The area on or near a FC-PGA

packaged processor that system designs can not utilize. • Keep-in zone - The area of a FC-PGA packaged processor that thermal solutions may utilize. Additional terms referred to in this and other related documentation: • SC242242-contact slot connector. A processor in the SEP Package uses this connector to interface with a system board. • 370-pin socket (PGA370)The zero insertion force (ZIF) socket in which a processor in the PPGA package will use to interface with a system board. • Retention mechanismA mechanical assembly which holds the package in the SC242 connector. 10 Datasheet Intel® Celeron™ Processor up to 700 MHz 1.12 Processor Naming Convention A letter(s) is added to certain processors (e.g, 533A MHz) when the core frequency alone may not uniquely identify the processor. Below is a summary of what each letter means as well as a table listing all the FC-PGA processors for the PGA370 socket. Table 1. Processor Identification Processor Core Frequency

(MHz) System Bus Frequency (MHz) CPUID1 266 266 66 065xh 300 300 66 065xh 300A 300 66 066xh 366 366 66 066xh 400 400 66 066xh 433 433 66 066xh 466 466 66 066xh 500 500 66 066xh 533 533 66 066xh 533A 533 66 068xh 566 566 66 068xh 600 600 66 068xh 633 633 66 068xh 667 667 66 068xh 700 700 66 068xh NOTES: 1. Refer to the Celeron™ Processor Specification Update for the exact CPUID for each processor Datasheet 11 Intel® Celeron™ Processor up to 700 MHz 1.2 References1,2 The reader of this specification should also be familiar with material and concepts presented in the following documents: • AP-485, Intel® Processor Identification and the CPUID Instruction (Order Number 241618)1 • AP-589, Design for EMI (Order Number 243334)1 • AP-900, Identifying Support for Streaming SIMD Extensions in the Processor and Operating System1 • AP-905, Pentium® III Processor Thermal Design Guidelines1 • AP-907, Pentium®

III Processor Power Distribution Guidelines1 • Intel® Pentium® III Processor for the PGA370 Socket at 500 MHz to 933 MHz Datasheet (Order Number 245264) • Intel® Pentium® III Processor Thermal Metrology for CPUID 068h Family1 • Intel® Pentium® III Processor Software Application Development Application Notes1 • Intel® Celeron™ Processor Specification Update (Order Number 243748) • 370-Pin Socket (PGA370) Design Guidelines (Order Number 244410) • Intel® Architecture Software Developer’s Manual (Order Number 243193) Volume I: Basic Architecture (Order Number 243190) Volume II: Instruction Set Reference (Order Number 243191) Volume III: System Programming Guide (Order Number 243192) • Intel® 440EX AGPset Design Guide (Order Number 290637) • Intel® Celeron™ Processor with the Intel® 440LX AGPset Design Guide (Order Number 245088) • Intel® 440BX AGPset Design Guide (Order Number 290634) • Intel® Celeron™ Processor with the Intel® 440ZX-66

AGPset Design Guide (Order Number 245126) • Intel® Celeron™ Processor (PPGA) at 466 MHz Thermal Solutions Guidelines (Order Number 245156) Notes: 1. This reference material can be found on the Intel Developer’s Website located at: http://developer.intelcom 2. For a complete listing of the Intel® Celeron™ processor reference material, refer to the Intel Developer’s Website when this processor is formally launched. The website is located at: http://developer.intelcom/design/celeron/ 12 Datasheet Intel® Celeron™ Processor up to 700 MHz 2.0 Electrical Specifications 2.1 System Bus and VREF Intel® Celeron processor signals use a variation of the low voltage Gunning Transceiver Logic (GTL) signaling technology. The Intel Celeron processor system bus specification is similar to the GTL specification, but has been enhanced to provide larger noise margins and reduced ringing. The improvements are accomplished by increasing the termination voltage level and controlling

the edge rates. Because this specification is different from the standard GTL specification, it is referred to as Assisted Gunning Transceiver Logic (AGTL+) in this document. The Intel® Celeron processor varies from the Pentium Pro processor in its output buffer implementation. The buffers that drive the system bus signals on the Intel® Celeron processor are actively driven to VCCCORE for one clock cycle during the low-to-high transition. This improves rise times and reduces overshoot. These signals should still be considered open-drain and require termination to a supply that provides the logic-high signal level. The AGTL+ inputs use differential receivers which require a reference signal (VREF). VREF is used by the receivers to determine if a signal is a logic-high or a logic-low, and is provided to the processor core by either the processor substrate (S.EP Package) or the motherboard (PGA370 socket). Local VREF copies should be generated on the motherboard for all other devices on

the AGTL+ system bus. Termination is used to pull the bus up to the high voltage level and to control reflections on the transmission line. The processor may contain termination resistors (SEP Package and FC-PGA Package) that provide termination for one end of the Intel Celeron processor system bus. Otherwise, this termination must exist on the motherboard. Solutions exist for single-ended termination as well, though this implementation changes system design and eliminate backwards compatibility for Intel® Celeron™ processors in the PPGA package. Single-ended termination designs must still provide an AGTL+ termination resistor on the motherboard for the RESET# signal. The AGTL+ bus depends on incident wave switching. Therefore timing calculations for AGTL+ signals are based on motherboard flight time as opposed to capacitive deratings. Analog signal simulation of the Intel Celeron processor system bus, including trace lengths, is highly recommended when designing a system. See the

Pentium® II Processor AGTL+ Layout Guidelines and the Pentium® II Processor I/O Buffer Models, Quad Format (Electronic Form) for details. 2.2 Clock Control and Low Power States Intel® Celeron processors allow the use of AutoHALT, Stop-Grant, Sleep, and Deep Sleep states to reduce power consumption by stopping the clock to internal sections of the processor, depending on each particular state. See Figure 1 for a visual representation of the Intel Celeron processor low power states. For the processor to fully realize the low current consumption of the Stop-Grant, Sleep, and Deep Sleep states, a Model Specific Register (MSR) bit must be set. For the MSR at 02AH (Hex), bit 26 must be set to a ‘1’ (this is the power on default setting) for the processor to stop all internal clocks during these modes. For more information, see the Pentium® II Processor Developer’s Manual (Order Number 243502). Datasheet 13 Intel® Celeron™ Processor up to 700 MHz 2.21 Normal StateState

1 This is the normal operating state for the processor. 2.22 AutoHALT Power Down StateState 2 AutoHALT is a low power state entered when the processor executes the HALT instruction. The processor will transition to the Normal state upon the occurrence of SMI#, BINIT#, INIT#, or LINT[1:0] (NMI, INTR). RESET# will cause the processor to immediately initialize itself The return from a System Management Interrupt (SMI) handler can be to either Normal Mode or the AutoHALT Power Down state. See the Intel Architecture Software Developer’s Manual, Volume III: System Programmer’s Guide (Order Number 243192) for more information. FLUSH# will be serviced during the AutoHALT state, and the processor will return to the AutoHALT state. The system can generate a STPCLK# while the processor is in the AutoHALT Power Down state. When the system deasserts the STPCLK# interrupt, the processor will return execution to the HALT state. Figure 1. Clock Control State Machine 2. Auto HALT Power Down

State BCLK running. Snoops and interrupts allowed. Snoop Event Occurs Snoop Event Serviced 4. Auto HALT Power Down State BCLK running. Snoops and interrupts allowed. HALT Instruction and HALT Bus Cycle generated INIT#, BINIT#, INTR, SMI#, RESET# STPCLK# Deasserted and Stop Grant entered from Auto HALT. Snoop event occurs Snoop event serviced 1. Normal State Normal execution. STPCLK# asserted STPCLK# deasserted 3. Stop Grant State BCLK running. Snoops and interrupts allowed. SLP# asserted SLP# deasserted 5. Sleep State BCLK running. Snoops and interrupts allowed. BCLK input stopped BCLK input restarted 6. Deep Sleep State BCLK stopped. No Snoops and interrupts allowed. 14 Datasheet Intel® Celeron™ Processor up to 700 MHz 2.23 Stop-Grant StateState 3 The Stop-Grant state on the processor is entered when the STPCLK# signal is asserted. Since the AGTL+ signal pins receive power from the system bus, these pins should not be driven (allowing the level to return to

VTT) for minimum power drawn by the termination resistors in this state. In addition, all other input pins on the system bus should be driven to the inactive state BINIT# will not be serviced while the processor is in Stop-Grant state. The event will be latched and can be serviced by software upon exit from Stop-Grant state. FLUSH# will not be serviced during Stop-Grant state. RESET# will cause the processor to immediately initialize itself, but the processor will stay in Stop-Grant state. A transition back to the Normal state will occur with the deassertion of the STPCLK# signal. A transition to the HALT/Grant Snoop state will occur when the processor detects a snoop on the system bus (see Section 2.24) A transition to the Sleep state (see Section 225) will occur with the assertion of the SLP# signal. While in the Stop-Grant State, SMI#, INIT#, and LINT[1:0] will be latched by the processor, and only serviced when the processor returns to the Normal State. Only one occurrence of each

event will be recognized upon return to the Normal state. 2.24 HALT/Grant Snoop StateState 4 The processor will respond to snoop transactions on the Intel® Celeron processor system bus while in Stop-Grant state or in AutoHALT Power Down state. During a snoop transaction, the processor enters the HALT/Grant Snoop state. The processor will stay in this state until the snoop on the Intel Celeron processor system bus has been serviced (whether by the processor or another agent on the Intel Celeron processor system bus). After the snoop is serviced, the processor will return to the Stop-Grant state or AutoHALT Power Down state, as appropriate. 2.25 Sleep StateState 5 The Sleep state is a very low power state in which the processor maintains its context, maintains the phase-locked loop (PLL), and has stopped all internal clocks. The Sleep state can only be entered from Stop-Grant state. Once in the Stop-Grant state, the SLP# pin can be asserted, causing the processor to enter the Sleep

state. The SLP# pin is not recognized in the Normal or AutoHALT states. Snoop events that occur while in Sleep State or during a transition into or out of Sleep state will cause unpredictable behavior. In the Sleep state, the processor is incapable of responding to snoop transactions or latching interrupt signals. No transitions or assertions of signals (with the exception of SLP# or RESET#) are allowed on the system bus while the processor is in Sleep state. Any transition on an input signal before the processor has returned to Stop-Grant state will result in unpredictable behavior. If RESET# is driven active while the processor is in the Sleep state, and held active as specified in the RESET# pin specification, then the processor will reset itself, ignoring the transition through Stop-Grant State. If RESET# is driven active while the processor is in the Sleep State, the SLP# and STPCLK# signals should be deasserted immediately after RESET# is asserted to ensure the processor

correctly executes the Reset sequence. Datasheet 15 Intel® Celeron™ Processor up to 700 MHz While in the Sleep state, the processor is capable of entering its lowest power state, the Deep Sleep state, by stopping the BCLK input. (See Section 226) Once in the Sleep state, the SLP# pin can be deasserted if another asynchronous system bus event occurs. The SLP# pin has a minimum assertion of one BCLK period. 2.26 Deep Sleep StateState 6 The Deep Sleep state is the lowest power state the processor can enter while maintaining context. The Deep Sleep state is entered by stopping the BCLK input (after the Sleep state was entered from the assertion of the SLP# pin). The processor is in Deep Sleep state immediately after BLCK is stopped. It is recommended that the BLCK input be held low during the Deep Sleep State Stopping of the BCLK input lowers the overall current consumption to leakage levels. To re-enter the Sleep state, the BCLK input must be restarted. A period of 1 ms (to

allow for PLL stabilization) must occur before the processor can be considered to be in the Sleep State. Once in the Sleep state, the SLP# pin can be deasserted to re-enter the Stop-Grant state. While in Deep Sleep state, the processor is incapable of responding to snoop transactions or latching interrupt signals. No transitions or assertions of signals are allowed on the system bus while the processor is in Deep Sleep state. Any transition on an input signal before the processor has returned to Stop-Grant state will result in unpredictable behavior. 2.27 Clock Control BCLK provides the clock signal for the processor and on die L2 cache. During AutoHALT Power Down and Stop-Grant states, the processor processes a system bus snoop. The processor does not stop the clock to the L2 cache during AutoHALT Power Down or Stop-Grant states. Entrance into the Halt/Grant Snoop state allows the L2 cache to be snooped, similar to the Normal state. When the processor is in the Sleep or Deep Sleep

states, it does not respond to interrupts or snoop transactions. During the Sleep state, the internal clock to the L2 cache is not stopped During the Deep Sleep state, the internal clock to the L2 cache is stopped. The internal clock to the L2 cache will be restarted only after the internal clocking mechanism for the processor is stable (i.e, the processor has re-entered Sleep state). PICCLK should not be removed during the AutoHALT Power Down or Stop-Grant states. PICCLK can be removed during the Sleep or Deep Sleep states. When transitioning from the Deep Sleep state to the Sleep state, PICCLK must be restarted with BCLK. 2.3 Power and Ground Pins There are five pins defined on the S.EP Package for voltage identification (VID) and four pins on the PPGA and FC-PGA packages. These pins specify the voltage required by the processor core These have been added to cleanly support voltage specification variations on current and future Intel® Celeron processors. For clean on-chip power

distribution, Intel Celeron processors in the S.EP Package have 27 VCC (power) and 30 VSS (ground) inputs. The 27 VCC pins are further divided to provide the different voltage levels to the components. VCCCORE inputs for the processor core account for 19 of the VCC pins, while 4 VTT inputs (1.5 V) are used to provide a AGTL+ termination voltage to the processor For only the S.EP Package, one VCC5 pin is provided for Voltage Transient Tools VCC5 and VCCCORE must remain electrically separated from each other. 16 Datasheet Intel® Celeron™ Processor up to 700 MHz The PPGA package has more power (88) and ground (80) pins than the S.EP Package Of the power pins, 77 are used for the processor core (VCCCORE) and 8 are used as a AGTL+ reference voltage (VREF). The other 3 power pins are VCC15, VCC25 and VCCCMOS and are used for future processor compatibility. FC-PGA package has 77 VCCCORE, 77 ground pins, eight VREF, one VCC1.5, one VCC25, and one VCCCMOS. VCCCORE inputs supply the

processor core, including the on-die L2 cache The VREF inputs are used as the AGTL+ reference voltage for the processor. The VCCCMOS pin is provided as a feature for future processor support in a flexible design. In such a design, the VCCCMOS pin is used to provide the CMOS voltage for use by the platform. Additionally, 2.5 V must be provided to the VCC25 input and 15 V must be provided to the Vcc15 input. The processor routes the CMOS voltage level through the package that it is compatible with For example, processors requiring 1.5 V CMOS voltage levels route 15 V to the VCCCMOS output Each power signal, regardless of package, must meet the specifications stated in Table 4. In addition, all VCCCORE pins must be connected to a voltage island while all VSS pins have to connect to a system ground plane. In addition, the motherboard must implement the VTT pins as a voltage island or large trace. Similarly, all VSS pins must be connected to a system ground plane 2.31 Phase Lock Loop

(PLL) Power It is highly critical that phase lock loop power delivery to the processor meets Intel’s requirements. A low pass filter is required for power delivery to pins PLL1 and PLL2. This serves as an isolated, decoupled power source for the internal PLL. 2.4 Processor Decoupling Due to the large number of transistors and high internal clock speeds, the processor is capable of generating large average current swings between low and full power states. This causes voltages on power planes to sag below their nominal values if bulk decoupling is not adequate. Care must be taken in the board design to ensure that the voltage provided to the processor remains within the specifications listed in Table 5. Failure to do so can result in timing violations or a reduced lifetime of the component. 2.41 System Bus AGTL+ Decoupling The S.EP Package and FC-PGA package contain high frequency decoupling capacitance on the processor substrate, where the PPGA package does not. Therefore, Intel®

Celeron™ processors in the PGA packages require high frequency decoupling on the system motherboard. Bulk decoupling must be provided on the motherboard for proper AGTL+ bus operation for all packages. See AP585, Pentium® II Processor AGTL+ Guidelines (Order Number 243330), AP-587, Pentium® II Processor Power Distribution Guidelines (Order Number 243332), and the Pentium® II Processor Developer’s Manual (Order Number 243502) for more information. 2.5 Voltage Identification The processor’s voltage identification (VID) pins can be used to automatically select the VCCCORE voltage from a compatible voltage regulator. There are five VID pins (VID[4:0]) on the SEP Package, while there are only four (VID[3:0]) on the PGA packages. This is because there are no Intel® Celeron™ processors in the PGA package that require more than 2.05 V (see Table 2) Datasheet 17 Intel® Celeron™ Processor up to 700 MHz VID pins are not signals, but rather are an open or short circuit to

VSS on the processor. The combination of opens and shorts defines the processor core’s required voltage. The VID pins also allow for compatibility with current and future Intel Celeron processors. Note that the ‘11111’ (all opens) ID can be used to detect the absence of a processor core in a given slot (S.EP Package only), as long as the power supply used does not affect the VID signals Detection logic and pull-ups should not affect VID inputs at the power source (see Section 7.0) External logic monitoring the VID signals or the voltage regulator may require the VID pins to be pulled-up. If this is the case, the VID pins should be pulled up to a TTL-compatible level with external resistors to the power source of the regulator. The power source chosen must be guaranteed to be stable whenever the voltage regulator’s supply is stable. This will prevent the possibility of the processor supply going above the specified VCCCORE in the event of a failure in the supply for the VID

lines. In the case of a DC-to-DC converter, this can be accomplished by using the input voltage to the converter for the VID line pull-ups. In addition, the power supply must supply the requested voltage or disable itself Table 2. Voltage Identification Definition 1, 2, 3 VID4 (S.EPP only) VID3 VID2 VID1 VID0 VCCCORE 0 1 1 1 1 1.30 0 1 1 1 0 1.35 0 1 1 0 1 1.40 0 1 1 0 0 1.45 0 1 0 1 1 1.50 0 1 0 1 0 1.55 0 1 0 0 1 1.60 0 1 0 0 0 1.65 0 0 1 1 1 1.70 0 0 1 1 0 1.75 0 0 1 0 1 1.80 0 0 1 0 0 1.85 0 0 0 1 1 1.90 0 0 0 1 0 1.95 0 0 0 0 1 2.00 0 0 0 0 0 2.05 1 1 1 1 1 No Core4 1 1 1 1 0 2.14 NOTES: 1. 0 = Processor pin connected to VSS 2. 1 = Open on processor; may be pulled up to TTL VIH on motherboard 3. The Intel® Celeron™ processor core uses a 20 V power source 4. VID4 applies only to the SEP Package VID[3:0] applies to both SEP and PGA packages 18 Datasheet Intel®

Celeron™ Processor up to 700 MHz 2.6 System Bus Unused Pins All RESERVED pins must remain unconnected. Connection of these pins to VCCCORE, VSS, or to any other signal (including each other) can result in component malfunction or incompatibility with future Intel® Celeron™ processor products. See Section 50 for a pin listing of the processor and the location of each RESERVED pin. For Intel Celeron processors in the S.EP Package, the TESTHI pin must be at a logic-high level when the core power supply comes up. For more information, please refer to erratum C26 of the Intel® Celeron™ Processor Specification Update (Order Number 243748). Also note that the TESTHI signal is not available on Intel Celeron processors in the PGA package. PICCLK must be driven with a valid clock input and the PICD[1:0] lines must be pulled-up to 2.5 V even when the APIC will not be used A separate pull-up resistor must be provided for each PICD line. For reliable operation, always connect unused

inputs or bi-directional signals to their deasserted signal level. The pull-up or pull-down resistor value is system dependent and should be chosen such that the logic-high (VIH) and logic-low (VIL) requirements are met. For the S.EP Package, unused AGTL+ inputs should not be connected as the package substrate has termination resistors. On the other hand, the PGA packages do not have AGTL+ termination in their package and must have any unused AGTL+ inputs terminated through a pull-up resistor. For designs that intend to only support the FC-PGA processor, unused AGTL+ inputs will be terminated by the processor’s on-die termination resistors and, thus, do not need to be terminated on the motherboard. However, the reset pin should always be terminated on the motherboard For unused CMOS inputs, active-low signals should be connected through a pull-up resistor to meet VIH requirements and active-high signals should be connected through a pull-down resistor to meet VIL requirements. Unused

CMOS outputs can be left unconnected A resistor must be used when tying bi-directional signals to power or ground. For any signal pulled to either power or ground, a resistor will allow for system testability. 2.7 Processor System Bus Signal Groups To simplify the following discussion, the Intel® Celeron™ processor system bus signals have been combined into groups by buffer type. All Intel® Celeron™ processor system bus outputs are open drain and require a high-level source provided externally by the termination or pull-up resistor. AGTL+ input signals have differential input buffers, which use VREF as a reference signal. AGTL+ output signals require termination to 1.5 V In this document, the term "AGTL+ Input" refers to the AGTL+ input group as well as the AGTL+ I/O group when receiving. Similarly, "AGTL+ Output" refers to the AGTL+ output group as well as the AGTL+ I/O group when driving. EMI pins (S.EP Package only) should be connected to motherboard

ground and/or to chassis ground through zero ohm (0 Ω) resistors. The zero ohm resistors should be placed in close proximity to the SC242 connector. The path to chassis ground should be short in length and have a low impedance. The PWRGOOD, BCLK, and PICCLK inputs can each be driven from ground to 2.5 V Other CMOS inputs (A20M#, IGNNE#, INIT#, LINT0/INTR, LINT1/NMI, PREQ#, SMI, SLP#, and STPCLK#) must be pulled up to VCCCMOS. In addition, the CMOS, APIC, and TAP outputs are Datasheet 19 Intel® Celeron™ Processor up to 700 MHz open drain and should be pulled high to VCCCMOS. This ensures not only correct operation for current Intel Celeron processors, but compatibility for future Intel Celeron processor products as well. The groups and the signals contained within each group are shown in Table 3. Refer to Section 70 for descriptions of these signals. Table 3. Intel® Celeron™ Processor System Bus Signal Groups Group Name Signals AGTL+ Input BPRI#, DEFER#, RESET#11,

RS[2:0]#, TRDY# AGTL+ Output PRDY# AGTL+ I/O A[31:3]#, ADS#, BNR#, BP[3:2]#, BPM[1:0]#, BR0#8, D[63:0]#, DBSY#, DRDY#, HIT#, HITM#, LOCK#, REQ[4:0]#, CMOS Input4 A20M#, FLUSH#, IGNNE#, INIT#, LINT0/INTR, LINT1/NMI, PREQ#, SMI#, SLP#2, STPCLK# CMOS Input PWRGOOD1,9 CMOS Output4 FERR#, IERR#, THERMTRIP#3 System Bus Clock BCLK9 APIC Clock PICCLK9 APIC I/O 4 PICD[1:0] 4 TCK, TDI, TMS, TRST# TAP Input TAP Output 4 Power/Other5 TDO CPUPRES#7, EDGCTRL7, EMI6, PLL[2:1]7, SLOTOCC#6, THERMDP, THERMDN, VCC1.57, VCC257, VCCL25, VCC56, VCCCMOS7, VCCCORE, VCOREDET7, VID[3:0]7, VID[4:0]6, VREF[7:0]7, VSS, VTT14, RTTCTRL12, BSEL[1:0]10, SLEWCTRL13 NOTES: 1. See Section 70 for information on the PWRGOOD signal 2. See Section 70 for information on the SLP# signal 3. See Section 70 for information on the THERMTRIP# signal 4. These signals are specified for 25 V operation for SEPP and PPGA packages; they are specified at 15V operation for the FC-PGA package 5. VCCCORE is the power

supply for the processor core VID[4:0] and VID[3:0] are described in Section 2.0 VTT is used to terminate the system bus and generate VREF on the processor substrate. VSS is system ground. VCC5 is not connected to the Intel® Celeron™ processor. This supply is used for Voltage Transient Tools SLOTOCC# is described in Section 7.0 BSEL is described in Section 2.72 and Section 70 EMI pins are described in Section 7.0 VCCL2 is a Pentium® II processor reserved signal provided to maintain compatibility with the Pentium® II processor and may be left as a no-connect for “Intel Celeron processor-only” designs. 6. Only applies to Intel Celeron processors in the SEP Package 7. Only applies to Intel Celeron processors in the PPGA and FC-PGA packages 8. The BR0# pin is the only BREQ# signal that is bidirectional See Section 70 for more information 9. These signals are specified for 25 V operation 10.BSEL1 is not used in Celeron processors 11. RESET# must always be terminated to VTT on the

motherboard for PGA packages On-die termination is not provided for this signal on FC-PGA. 12.For the FC-PGA, this signal is used to control the value of the processor on-die termination resistance Refer to the specific platform design guide for the recommended pull-down resistor value. 13.Only applies to Intel Celeron processors in the FC-PGA Package 14.SEP Package and FC-PGA Package 20 Datasheet Intel® Celeron™ Processor up to 700 MHz 2.71 Asynchronous Vs. Synchronous for System Bus Signals All AGTL+ signals are synchronous to BCLK. All of the CMOS, APIC, and TAP signals can be applied asynchronously to BCLK. All APIC signals are synchronous to PICCLK All TAP signals are synchronous to TCK. 2.72 System Bus Frequency Select Signal (BSEL[1:0]) The BSEL pins have two functions. First, they can act as outputs and can be used by an external clock generator to select the proper system bus frequency. Second, they can act as an inputs and can be used by a system BIOS to detect

and report the processor core frequency. See the Intel® Celeron™ Processor with the Intel® 440ZX-66 AGPset Design Guide (Order Number 245126) for an example implementation of BSEL. BSEL0 is 3.3 V tolerant for the SEP Package, while it is 25 V tolerant on the PPGA package A logic-low on BSEL0 is defined as 66 MHz. On the FC-PGA a logic low on both BSEL0 and BSEL1 are defined as 66 MHz and are 3.3V tolerant 2.8 Test Access Port (TAP) Connection Due to the voltage levels supported by other components in the Test Access Port (TAP) logic, it is recommended that the Intel® Celeron™ processor be first in the TAP chain and followed by any other components within the system. A translation buffer should be used to connect to the rest of the chain unless one of the other components is capable of accepting a VccCMOS (1.5V or 25 V) input. Similar considerations must be made for TCK, TMS, and TRST# Two copies of each signal may be required with each driving a different voltage level. A

Debug Port may be placed at the start and end of the TAP chain with the TDI of the first component coming from the Debug Port and the TDO from the last component going to the Debug Port. 2.9 Maximum Ratings Table 4 contains the Intel® Celeron™ processor stress ratings only. Functional operation at the absolute maximum and minimum is not implied nor guaranteed. The processor should not receive a clock while subjected to these conditions. Functional operating conditions are given in the AC and DC tables. Extended exposure to the maximum ratings may affect device reliability Furthermore, although the processor contains protective circuitry to resist damage from static electric discharge, one should always take precautions to avoid high static voltages or electric fields. Datasheet 21 Intel® Celeron™ Processor up to 700 MHz Table 4. Absolute Maximum Ratings Symbol TSTORAGE Parameter Min Max Unit –40 85 °C • PPGA and S.EPP –0.5 Operating voltage + 1.0 V

• FC-PGA –0.5 2.1 V –0.3 VCCCORE + 0.7 V VTT - 2.18 2.18 V 7, 8 -0.3 3.3 V 3 VTT - 2.18 -0.58 2.18 3.18 V V 7, 8, 9 10 Processor storage temperature Notes Any processor supply voltage with respect to VSS VCC(All) 1, 2 AGTL+ buffer DC input voltage with respect to VSS VinAGTL+ • PPGA and S.EPP • FC-PGA CMOS buffer DC input voltage with respect to VSS VinCMOS • PPGA and S.EPP • FC-PGA IVID Max VID pin current 5 mA ISLOTOCC# Max SLOTOCC# pin current 5 mA 5 ICPUPRES# Max CPUPRES# pin current 5 mA 6 Mech Max Edge Fingers5 Mechanical integrity of processor edge fingers 50 Insertions/ Extractions 4, 5 NOTES: 1. Operating voltage is the voltage to which the component is designed to operate See Table 5 2. This rating applies to the VCCCORE, VCC5, and any input (except as noted below) to the processor 3. Parameter applies to CMOS, APIC, and TAP bus signal groups only 4. The electrical and mechanical integrity of the processor edge

fingers are specified to last for 50 insertion/ extraction cycles. 5. SEP Package Only 6. PGA Packages Only 7. Input voltage can never exceed VSS + 28 volts 8. Input voltage can never go below VTT - 218 volts 9. Parameter applies to CMOS (except BCLK, PICCLK, and PWRGOOD), APIC, and TAP bus signal groups only for VinCMOS on the FC-PGA Package only. 10.Parameter applies to CMOS signals BCLK, PICCLK, and PWRGOOD for VinCMOS15 on FC-PGA Package only. 2.10 Processor DC Specifications The processor DC specifications in this section are defined for the Intel® Celeron™ processor. See Section 7.0 for signal definitions and Section 50 for signal listings Most of the signals on the Intel Celeron processor system bus are in the AGTL+ signal group. These signals are specified to be terminated to 1.5 V The DC specifications for these signals are listed in Table 6. To allow connection with other devices, the Clock, CMOS, APIC, and TAP signals are designed to interface at non-AGTL+ levels. The

DC specifications for these pins are listed in Table 7 Table 5 through Table 8 list the DC specifications for Intel Celeron processors operating at 66 MHz Intel Celeron processor system bus frequencies. Specifications are valid only while meeting specifications for case temperature, clock frequency, and input voltages. Care should be taken to read all notes associated with each parameter. 22 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 5. Voltage and Current Specifications 1 Processor Symbol Parameter Min Core Freq Notes 2.00 2, 3, 4 2.00 2, 3, 4 0650h 2.00 2, 3, 4 0651h 2.00 2, 3, 4 0660h 2.00 2, 3, 4 0665h 2.00 2, 3, 4 0660h 2.00 2, 3, 4 0665h 2.00 2, 3, 4 0660h 2.00 2, 3, 4 0665h 2.00 2, 3, 4 0660h 2.00 2, 3, 4 0665h 2.00 2, 3, 4 0660h 2.00 2, 3, 4 0665h 2.00 2, 3, 4 466 MHz 0665h 2.00 2, 3, 4 500 MHz 0665h 2.00 2, 3, 4 533 MHz 0665h 300A MHz 333 MHz 366 MHz 400 MHz 433 MHz 533A MHz 566 MHz 600 MHz

633 MHz 667 MHz 700 MHz Datasheet Unit 0651h 300 MHz VCC for processor core Max 0650h 266 MHz VCCCORE Typ CPUID 2.00 V 2, 3, 4 0683h 1.50 2, 3, 4 0686h 1.70 2, 3, 4 0683h 1.50 2, 3, 4 0686h 1.70 2, 3, 4 0683h 1.50 2, 3, 20 0686h 1.70 2, 3, 20 0683h 1.65 2, 3, 20 0686h 1.70 2, 3, 20 0683h 1.65 2, 3, 20 0686h 1.70 2, 3, 20 0683h 1.65 2, 3, 20 0686h 1.70 2, 3, 20 23 Intel® Celeron™ Processor up to 700 MHz Table 5. Voltage and Current Specifications 1 Processor Symbol Parameter Min Max Unit Notes 2/ VTT + 2% 3 V ± 2%, 11 1.50 1.545 V 1.5 ± 3% 1.365 1.50 1.365 V 1.5 ± 3% 2.375 2.5 2.625 V 2.5 ± 5% 1.365 1.50 1.635 V 1.5 ± 9%5 Processor core voltage static tolerance level at SC242 pins –0.070 0.100 V 6 Processor core voltage transient tolerance level at SC242 pins –0.120 0.120 V 6 • SC242 edge fingers –0.085 0.100 V 7 • PPGA processor pins

-0.089 0.100 V 8 • FC-PGA processor pins -0.080 0.040 V 17 • SC242 edge fingers –0.140 0.140 V 7 • PPGA processor pins -0.144 0.144 V 8 • FC-PGA processor pins -0.130 0.080 V 17 Core Freq CPUID AGTL+ input reference voltage 2/ VTT – 2% 3 Static AGTL+ bus termination voltage 1.455 Transient AGTL+ bus termination voltage VCC2.518 VCC for VCCCMOS VTT AGTL+ bus termination voltage Baseboard Tolerance, Static Baseboard Tolerance, Transient VREF19 VCC1.516 Typ Processor core voltage static tolerance level at: VCCCORE Tolerance, Static Processor core voltage transient tolerance level at: VCCCORE Tolerance, Transient 24 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 5. Voltage and Current Specifications 1 Processor Symbol Parameter Min Core Freq ICCCORE IVTT ISGnt Datasheet ICC for processor core Termination voltage supply current ICC Stop-Grant for processor core Typ Max

266 MHz 8.2 300 MHz 9.3 300A MHz 9.3 333 MHz 10.1 366 MHz 11.2 400 MHz 12.2 433 MHz 12.6 466 MHz 13.4 500 MHz 14.2 533 MHz 14.9 533A MHz 11.4 566 MHz 11.9 600 MHz 12.0 633 MHz 12.7 667 MHz 13.3 700 MHz 14.0 2.7 266 MHz 1.12 300 MHz 1.15 300A MHz 1.15 333 MHz 1.18 366 MHz 1.21 400 MHz 1.25 433 MHz 1.30 466 MHz 500 MHz Unit Notes A 9, 10 A 11 A 12 CPUID 1.35 1.43 533 MHz 1.52 533A MHz 2.5 566 MHz 2.5 600 MHz 2.5 633 MHz 2.5 667 MHz 2.5 700 MHz 2.5 25 Intel® Celeron™ Processor up to 700 MHz Table 5. Voltage and Current Specifications 1 Processor Symbol Parameter Min Core Freq ISLP ICC Sleep for processor core Typ Max 266 MHz 0.90 300 MHz 0.94 300A MHz 0.94 333 MHz 0.96 366 MHz 0.97 400 MHz 0.99 433 MHz 1.01 466 MHz 500 MHz Unit Notes CPUID 1.03 1.09 533 MHz 1.16 533A MHz 2.5 566 MHz 2.5 600 MHz 2.5 633 MHz 2.5 667 MHz 2.5 700 MHz 2.5 A ICC

Deep Sleep for processor core: IDSLP • S.EPP and PPGA 0.90 A • FC-PGA 2.2 A • S.EPP and PPGA 500 mA • FC-PGA 250 mA • S.EPP 20 A/µs 13, 14, 15 • PPGA and FCPGA 240 A/µs 13, 14 A/µs See Table 8, Table 18, Table 20 ICC for VCCCMOS ICCCMOS Power supply current slew rate dICCCORE/dt dICCVTT/dt Termination current slew rate 8 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all processor frequencies 2. VCCCORE and ICCCORE supply the processor core 3. These voltages are targets only A variable voltage source should exist on systems in the event that a different voltage is required. 4. Use the Typical Voltage specification with the Tolerance specifications to provide correct voltage regulation to the processor. 5. VTT must be held to 15 V ± 9% It is recommended that V TT be held to 15 V ± 3% while the Intel® Celeron™ processor system bus is idle. This is measured

at the processor edge fingers 6. These are the tolerance requirements, across a 20 MHz bandwidth, at the SC242 connector pin on the bottom side of the baseboard. The requirements at the SC242 connector pins account for voltage drops (and impedance discontinuities) across the connector, processor edge fingers, and to the processor core. VCCCORE must return to within the static voltage specification within 100 µs after a transient event. 26 Datasheet Intel® Celeron™ Processor up to 700 MHz 7. These are the tolerance requirements, across a 20 MHz bandwidth, at the processor edge fingers The requirements at the processor edge fingers account for voltage drops (and impedance discontinuities) at the processor edge fingers and to the processor core. VCCCORE must return to within the static voltage specification within 100 µs after a transient event. 8. These are the tolerance requirements, across a 20 MHz bandwidth, at the top of the PPGA package VCCCORE must return to within the

static voltage specification within 100 µs after a transient event. 9. Max ICCCORE measurements are measured at VCCCORE max voltage (VCCCORE TYP + maximum static tolerance), under maximum signal loading conditions. 10.Voltage regulators may be designed with a minimum equivalent internal resistance to ensure that the output voltage, at maximum current output, is no greater than the nominal (i.e, typical) voltage level of VCCCORE (VCCCORE TYP). In this case, the maximum current level for the regulator, ICCCORE REG, can be reduced from the specified maximum current ICCCORE MAX and is calculated by the equation: ICCCORE REG = ICCCORE MAX × VCCCORE TYP / (VCCCORE TYP + VCCCORE Tolerance, Transient) 11. The current specified is the current required for a single Intel Celeron processor A similar amount of current is drawn through the termination resistors on the opposite end of the AGTL+ bus, unless single-ended termination is used (see Section 2.1) 12.The current specified is also for

AutoHALT state 13.Maximum values are specified by design/characterization at nominal VCCCORE 14.Based on simulation and averaged over the duration of any change in current Use to compute the maximum inductance tolerable and reaction time of the voltage regulator. This parameter is not tested 15.dICC/dt specifications are measured and specified at the SC242 connector pins 16.FC-PGA only 17.These are the tolerance requirements across a 20 MHz bandwidth at the FC-PGA socket pins on the solder side of the motherboard. VCCCORE must return to within the static voltage specification within 100 µs after a transient event. 18.PGA only 19.SEP Package and FC-PGA Packages only 20.These processors implement independent VTT and VCCCORE power planes Table 6. AGTL+ Signal Groups DC Specifications 1 Symbol Parameter Min Max Unit Notes Input Low Voltage VIL • S.EPP and PPGA –0.3 0.82 V • FC-PGA –0.150 VREF - 0.200 V 9 1.22 VTT V 2, 3 Input High Voltage VIH • S.EPP and

PPGA VTT V 2, 3 RON Buffer On Resistance 16.67 Ω 8 IL Leakage Current for inputs, outputs, and I/O ±100 µA 6, 7 • FC-PGA VREF + 0.200 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies and cache sizes. 2. VIH and VOH for the Intel Celeron processor may experience excursions of up to 200 mV above VTT for a single system bus clock. However, input signal drivers must comply with the signal quality specifications in Section 3.0 3. Minimum and maximum VTT are given in Table 8 4. Parameter correlated to measurement into a 25 Ω resistor terminated to 15 V 5. IOH for the Intel Celeron processor may experience excursions of up to 12 mA for a single system bus clock 6. (0 ≤ VIN ≤ 20 V +5%) for SEP Package and PPGA Package; (0 ≤ VIN ≤ 15V +3%) for FC-PGA package 7. (0 ≤ VOUT ≤ 20 V +5%) for SEP Package and PPGA Package; (0 ≤ VOUT ≤ 15V +3%) for FC-PGA package. 8. Refer to the I/O Buffer

Models for IV characteristics 9. Steady state input voltage must not be above VSS + 165V or below VTT - 165V Datasheet 27 Intel® Celeron™ Processor up to 700 MHz Table 7. Non-AGTL+ Signal Group DC Specifications 1 Symbol Parameter Min Max Unit Notes VIL Input Low Voltage –0.3 0.7 V 10 VIH Input High Voltage 1.7 2.625 V 2.5 V +5% maximum, Note 10 VIL1.5 Input Low Voltage –0.150 VREF - 0.200 V 8, 9 VIL2.5 Input Low Voltage -0.58 0.700 V 7, 9 VIH1.5 Input High Voltage VREF + 0.200 VTT V 5, 8, 9 VIH2.5 Input High Voltage 2.0 3.18 V 7, 9 VOL Output Low Voltage 0.4 V 2 2.625 V All outputs are opendrain to 2.5 V +5% VTT V 6, 8, 9 Output High Voltage VOH • S.EPP and PPGA N/A • FC-PGA Output Low Current IOL • S.EPP and PPGA 14 mA • FC-PGA 9 mA 9 IL Leakage Current for Inputs, Outputs, and I/O µA 3, 4, 5, 6 ±100 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel®

Celeron™ processor frequencies 2. Parameter measured at 14 mA (for use with TTL inputs) for SEP Package and PPGA Package It is 9 mA for FC-PGA. 3. (0 ≤ VIN ≤ 25 V +5%) for PPGA Package and SEP Package only 4. (0 ≤ VOUT ≤ 25 V +5%) for PPGA Package and SEP Package only 5. (0≤ VIN ≤ 15V +3%) for FC-PGA Package only 6. (0≤ VOUT ≤ 15V +3%) for FC-PGA Package only 7. Applies to non-AGTL+ signals BCLK, PICCLK, and PWRGOOD for FC-PGA Package only 8. Applies to non-AGTL+ signals except BCLK, PICCLK, and PWRGOOD for FC-PGA Package only 9. These values are specified at the processor pins for FC-PGA Package only 10.SEP Package and PPGA Package only 2.11 AGTL+ System Bus Specifications It is recommended that the AGTL+ bus be routed in a daisy-chain fashion with termination resistors to VTT at each end of the signal trace. These termination resistors are placed electrically between the ends of the signal traces and the VTT voltage supply and generally are chosen to approximate

the substrate impedance. The valid high and low levels are determined by the input buffers using a reference voltage called VREF. Single ended termination may be possible if trace lengths are tightly controlled, see the Intel® 440EX AGPset Design Guide (Order Number 290637) or the Intel® Celeron™ Processor (PPGA) with the Intel® 440LX AGPset Design Guide (Order Number 245088) for more information. Table 8 below lists the nominal specification for the AGTL+ termination voltage (VTT). The AGTL+ reference voltage (VREF) is generated on the processor substrate (S.EP Package only) for the processor core, but should be set to 2/3 VTT for other AGTL+ logic using a voltage divider on the motherboard. It is important that the motherboard impedance be specified and held to: • ±20% tolerance (S.EEP and PPGA) • ±15% tolerance (FC-PGA) 28 Datasheet Intel® Celeron™ Processor up to 700 MHz It is also important that the intrinsic trace capacitance for the AGTL+ signal group

traces is known and well-controlled. For more details on AGTL+, see the Pentium® II Processor Developer’s Manual (Order Number 243502) and AP-585, Pentium® II Processor AGTL+ Guidelines (Order Number 243330). Table 8. Processor AGTL+ Bus Specifications 1 Symbol Parameter Min Typ Max Units Notes 1.365 1.50 1.635 V 1.5 V ± 9% 2 V 4 Bus Termination Voltage VTT • S.EPP and PPGA • FC-PGA 1.50 Termination Resistor RTT • S.EPP and PPGA • FC-PGA (on die RTT) 56 40 130 Ω ± 5% Ω 5 V ± 2% 3 V 6 Bus Reference Voltage VREF 2 • S.EPP and PPGA • FC-PGA 0.950 /3 VTT 2/3 VTT 1.05 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. VTT must be held to 15 V ± 9%; dICCVTT/dt is specified in Table 5 It is recommended that VTT be held to 1.5 V ± 3% while the Intel Celeron processor system bus is idle This is measured at the processor edge fingers. 3. VREF is generated on the

processor substrate to be 2/3 VTT nominally with the SEP package It must be created on the motherboard for processors in the PPGA package. 4. VTT and Vcc15 must be held to 15V ±9% It is required that VTT and Vcc15 be held to 15V ±3% while the processor system bus is idle (static condition). This is measured at the PGA370 socket pins on the bottom side of the baseboard. 5. The value of the on-die RTT is determined by the resistor value measured by the RTTCTRL signal pin The on-die RTT tolerance is ±15% based on the RTTCTRL resistor pull-down of ±1%. See Section 70 for more details on the RTTCTRL signal. Refer to the recommendation guidelines for the specific chipset/processor combination. 6. VREF is generated on the motherboard and should be 2/3 VTT ±2% nominally Insure that there is adequate VREF decoupling on the motherboard. 2.12 System Bus AC Specifications The Intel® Celeron™ processor system bus timings specified in this section are defined at the Intel Celeron processor

edge fingers and the processor core pins. Timings specified at the processor edge fingers only apply to the S.EP Package and timings given at the processor core pins apply to all S.EP Package and PGA packages Unless otherwise specified, timings are tested at the processor core during manufacturing. Timings at the processor edge fingers are specified by design characterization. See Section 70 for the Intel Celeron processor signal definitions Note that at 66 MHz system bus operation, the Intel Celeron processor timings at the processor edge fingers are identical to the Pentium II processor timings at the edge fingers. See the Pentium® II Processor at 233, 266, 300, and 333 MHz (Order Number 243335) for more detail. Table 9 through Table 23 list the AC specifications associated with the Intel Celeron processor system bus. These specifications are broken into the following categories: Table 9 through Table 11 contain the system bus clock specifications, Table 12 and Table 13 contain the

AGTL+ specifications, Table 16 and Table 17 are the CMOS signal group specifications, Table 18 contains timings for the Reset conditions, Table 20 and Table 21 cover APIC bus timing, and Table 22 and Datasheet 29 Intel® Celeron™ Processor up to 700 MHz Table 23 cover TAP timing. For each pair of tables, the first table contains timing specifications for measurement or simulation at the processor edge fingers. The second table contains specifications for simulation at the processor core pads. All Intel Celeron processor system bus AC specifications for the AGTL+ signal group are relative to the rising edge of the BCLK input. All AGTL+ timings are referenced to VREF for both ‘0’ and ‘1’ logic levels unless otherwise specified. The timings specified in this section should be used in conjunction with the I/O buffer models provided by Intel. These I/O buffer models, which include package information, are available in Quad format as the Intel Celeron™ Processor I/O Buffer

Models, Quad XTK Format (Electronic Form). AGTL+ layout guidelines are also available in AP-585, Pentium® II Processor AGTL+ Guidelines (Order Number 243330). Care should be taken to read all notes associated with a particular timing parameter. Table 9. System Bus AC Specifications (Clock) at the Processor Edge Fingers (for S.EP Package) 1, 2, 3 T# Parameter Min System Bus Frequency T1’: BCLK Period Nom Max T2’: BCLK Period Stability Figure Notes 66.67 MHz ns 3 4, 5, 6 0.78 ns 3 Absolute Value 7,8 15.0 T1B’: SC242 to Core Logic BCLK Offset Unit ± 300 ps See Table 10 T3’: BCLK High Time 4.44 ns 3 @>2.0 V 6 T4’: BCLK Low Time 4.44 ns 3 @<0.5 V 6 T5’: BCLK Rise Time 0.84 2.31 ns 3 (0.5 V–20 V) 6, 9 T6’: BCLK Fall Time 0.84 2.31 ns 3 (2.0 V–05 V) 6, 9 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. All AC timings for the AGTL+ signals are

referenced to the BCLK rising edge at 070 V at the processor edge fingers. This reference is to account for trace length and capacitance on the processor substrate, allowing the processor core to receive the signal with a reference at 1.25 V All AGTL+ signal timings (address bus, data bus, etc.) are referenced at 100 V at the processor edge fingers 3. All AC timings for the CMOS signals are referenced to the BCLK rising edge at 070 V at the processor edge fingers. This reference is to account for trace length and capacitance on the processor substrate, allowing the processor core to receive the signal with a reference at 1.25 V All CMOS signal timings (compatibility signals, etc.) are referenced at 125 V at the processor edge fingers 4. The internal core clock frequency is derived from the Intel Celeron processor system bus clock The system bus clock to core clock ratio is determined during initialization. Table 11 shows the supported ratios for each processor. 5. The BCLK period

allows a +05 ns tolerance for clock driver variation 6. This specification applies to Intel Celeron processors when operating at a system bus frequency of 66 MHz 7. The BCLK offset time is the absolute difference needed between the BCLK signal arriving at the Intel Celeron processor edge finger at 0.5 V vs arriving at the core logic at 125 V The positive offset is needed to account for the delay between the SC242 connector and processor core. The positive offset ensures both the processor core and the core logic receive the BCLK edge concurrently. 8. See Section 31 for Intel Celeron processor system bus clock signal quality specifications 9. Not 100% tested Specified by design characterization as a clock driver requirement 30 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 10. System Bus AC Specifications (Clock) at the Processor Core Pins (for Both S.EP and PGA Packages) 1, 2, 3, 7 T# Parameter Min System Bus Frequency T1: BCLK Period Nom Max 66.67 Figure

Notes MHz 15.0 T2: BCLK Period Stability Unit ± 300 ns 3 4, 5, 6 ps 3 6, 8, 9 T3: BCLK High Time 4.94 ns 3 @>2.0 V 6 T4: BCLK Low Time 4.94 ns 3 @<0.5 V 6 T5: BCLK Rise Time • S.EPP and PPGA 0.34 1.36 ns 3 (0.5 V–20 V) 6, 10 • FC-PGA 0.40 1.6 ns 3 10, 11 • S.EPP and PPGA 0.34 1.36 ns 3 (2.0 V–05 V) 6, 10 • FC-PGA 0.40 1.6 ns 3 10, 11 T6: BCLK Fall Time NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. All AC timings for the AGTL+ signals are referenced to the BCLK rising edge at 125 V at the processor core pin. All AGTL+ signal timings (address bus, data bus, etc) are referenced at 100 V at the processor core pins. 3. All AC timings for the CMOS signals are referenced to the BCLK rising edge at 125 V at the processor core pin. All CMOS signal timings (compatibility signals, etc) are referenced at 125 V at the processor core pins 4. The internal

core clock frequency is derived from the Intel Celeron processor system bus clock The system bus clock to core clock ratio is determined during initialization. Table 11 shows the supported ratios for each processor. 5. The BCLK period allows a +05 ns tolerance for clock driver variation 6. This specification applies to the Intel Celeron processor when operating at a system bus frequency of 66 MHz. 7. See Section 31 for Intel Celeron processor system bus clock signal quality specifications 8. Due to the difficulty of accurately measuring clock jitter in a system, it is recommended that a clock driver be used that is designed to meet the period stability specification into a test load of 10 to 20 pF. This should be measured on the rising edges of adjacent BCLKs crossing 1.25 V at the processor core pin The jitter present must be accounted for as a component of BCLK timing skew between devices. 9. The clock driver’s closed loop jitter bandwidth must be set low to allow any PLL-based

device to track the jitter created by the clock driver. The –20 dB attenuation point, as measured into a 10 to 20 pF load, should be less than 500 kHz. This specification may be ensured by design characterization and/or measured with a spectrum analyzer. 10.Not 100% tested Specified by design characterization as a clock driver requirement 11. BCLK Rise time is measure between 05V–20V BCLK fall time is measured between 20V–05V Datasheet 31 Intel® Celeron™ Processor up to 700 MHz Table 11. Valid Intel® Celeron™ Processor System Bus, Core Frequency 1, 2 Core Frequency (MHz) BCLK Frequency (MHz) Frequency Multiplier 266 66 4 300 66 4.5 333 66 5 366 66 5.5 400 66 6 433 66 6.5 466 66 7 500 66 7.5 533 66 8 566 66 8.5 600 66 9 633 66 9.5 667 66 10 700 66 10.5 NOTES: 1. Contact your local Intel representative for the latest information on processor frequencies and/or frequency multipliers. 2. While other bus ratios are defined,

operation at frequencies other than those listed are not supported Table 12. System Bus AC Specifications (AGTL+ Signal Group) at the Processor Edge Fingers (for S.EP Package) 1, 2, 3, 4 T# Parameter Min Max Unit T7’: AGTL+ Output Valid Delay 1.07 6.37 ns Figure Notes 4 4, 5 T8’: AGTL+ Input Setup Time 1.96 ns 5 4, 6, 7, 8 T9’: AGTL+ Input Hold Time 1.53 ns 5 4, 9 T10’: RESET# Pulse Width 1.00 ms 6 10 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. Not 100% tested Specified by design characterization 3. All AC timings for the AGTL+ signals are referenced to the BCLK rising edge at 050 V at the processor edge fingers. All AGTL+ signal timings (compatibility signals, etc) are referenced at 100 V at the processor edge fingers. 4. This specification applies to Intel Celeron processors operating with a 66 MHz Intel Celeron processor system bus only. 5. Valid delay timings for

these signals are specified into 50 Ω to 15 V and with VREF at 10 V 6. A minimum of 3 clocks must be guaranteed between two active-to-inactive transitions of TRDY# 7. RESET# can be asserted (active) asynchronously, but must be deasserted synchronously 8. Specification is for a minimum 040 V swing 9. Specification is for a maximum 10 V swing 10.After VCCCORE, and BCLK become stable 32 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 13. System Bus AC Specifications (AGTL+ Signal Group) at the Processor Core Pins (for S.EP Package) 1, 2, 3, 4 T# Parameter Min Max Unit Figure Notes T7: AGTL+ Output Valid Delay 0.17 5.16 ns 4 5 T8: AGTL+ Input Setup Time 2.10 ns 5 5, 6, 7, 8 T9: AGTL+ Input Hold Time 0.77 ns 5 9 T10: RESET# Pulse Width 1.00 ms 6 7, 10 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel ®Celeron™ processor frequencies 2. These specifications are tested during manufacturing 3. All AC timings

for the AGTL+ signals are referenced to the BCLK rising edge at 125 V at the processor core pin. All AGTL+ signal timings (compatibility signals, etc) are referenced at 100 V at the processor core pins 4. This specification applies to the Intel Celeron processor operating with a 66 MHz Intel Celeron processor system bus only. 5. Valid delay timings for these signals are specified into 25 Ω to 15 V and with VREF at 10 V 6. A minimum of 3 clocks must be guaranteed between two active-to-inactive transitions of TRDY# 7. RESET# can be asserted (active) asynchronously, but must be deasserted synchronously 8. Specification is for a minimum 040 V swing 9. Specification is for a maximum 10 V swing 10.After VCCCORE and BCLK become stable Table 14. Processor System Bus AC Specifications (AGTL+ Signal Group) at the Processor Core Pins (for PPGA Package) 1, 2, 3, 4 T# Parameter Min Max Unit Figure T7: AGTL+ Output Valid Delay 0.30 4.43 ns 4 5 T8: AGTL+ Input Setup Time 2.10 ns 5

5, 6, 7 T9: AGTL+ Input Hold Time 0.85 ns 5 T10: RESET# Pulse Width 1.00 ms 6 Notes 7, 8 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all processor frequencies 2. These specifications are tested during manufacturing 3. All AC timings for the AGTL+ signals are REFerenced to the BCLK rising edge at 125 V at the processor pin All GTL+ signal timings (compatibility signals, etc.) are referenced at 100 V at the processor pins 4. This specification applies to the processor operating with a 66 MHz system bus only 5. Valid delay timings for these signals are specified into 25 Ω to 15 V and with VREF at 10 V 6. A minimum of 3 clocks must be guaranteed between two active-to-inactive transitions of TRDY# 7. RESET# can be asserted (active) asynchronously, but must be deasserted synchronously 8. After VCCCORE and BCLK become stable Datasheet 33 Intel® Celeron™ Processor up to 700 MHz Table 15. System Bus AC Specifications (AGTL+ Signal Group) at

the Processor Core Pins (for FC-PGA Package)1, 2, 3 T# Parameter Min Max Unit Figure Notes T7: AGTL+ Output Valid Delay 0.40 3.25 ns 4 4, 10 T8: AGTL+ Input Setup Time 1.20 ns 5 5, 6, 7, 10 T9: AGTL+ Input Hold Time 1.00 ns 5 8, 10 T10: RESET# Pulse Width 1.00 ms 7 6, 9, 10 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processors at all frequencies and cache sizes. 2. These specifications are tested during manufacturing 3. All AC timings for the AGTL+ signals are referenced to the BCLK rising edge at 125V at the processor pin All AGTL+ signal timings (compatibility signals, etc.) are referenced at 100V at the processor pins 4. Valid delay timings for these signals are specified into 50 Ω to 15V and with VREF at 10 V 5. A minimum of 3 clocks must be guaranteed between two active-to-inactive transitions of TRDY# 6. RESET# can be asserted (active) asynchronously, but must be deasserted synchronously 7.

Specification is for a minimum 040 V swing from VREF - 200 mV to VREF + 200 mV This assumes an edge rate of 0.3V/ns 8. Specification is for a maximum 10 V swing from VTT - 1V to VTT This assumes an edge rate of 3V/ns 9. This should be measured after VCCCORE, VCCCMOS, and BCLK become stable 10.This specification applies to the FC-PGA running at 66 MHz system bus frequency Table 16. System Bus AC Specifications (CMOS Signal Group) at the Processor Edge Fingers (for S.EP Package) 1, 2, 3, 4 T# Parameter Min Max Unit Figure Notes T14’: CMOS Input Pulse Width, except PWRGOOD 2 BCLKs 8 Active and Inactive states T14B: LINT[1:0] Input Pulse Width 6 BCLKs 8 5 T15’: PWRGOOD Inactive Pulse Width 10 BCLKs 8 6, 7 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. Not 100% tested Specified by design characterization 3. All AC timings for the CMOS signals are referenced to the BCLK rising edge at 050 V

at the processor edge fingers. All CMOS signal timings (address bus, data bus, etc) are referenced at 125 V 4. These signals may be driven asynchronously 5. This specification only applies when the APIC is enabled and the LINT1 or LINT0 pin is configured as an edge-triggered interrupt with fixed delivery; otherwise, specification T14 applies. PWRGOOD must remain below VIL,max (Table 6) until all the voltage planes meet the voltage tolerance specifications in Table 5 and BCLK has met the BCLK AC specifications in Table 10 for at least 10 clock cycles. PWRGOOD must rise glitch-free and monotonically to 25 V 6. When driven inactive or after VCCCORE, and BCLK become stable 7. If the BCLK signal meets its AC specification within 150 ns of turning on, then the PWRGOOD inactive pulse width specification (T15) is waived and BCLK may start after PWRGOOD is asserted. PWRGOOD must still remain below VIL,max until all the voltage planes meet the voltage tolerance specifications. 34 Datasheet

Intel® Celeron™ Processor up to 700 MHz Table 17. System Bus AC Specifications (CMOS Signal Group) at the Processor Core Pins (for Both S.EP and PGA Packages) 1, 2, 3, 4 T# Parameter Min Max Unit Figure Notes T14: CMOS Input Pulse Width, except PWRGOOD 2 BCLKs 8 Active and Inactive states T14B: LINT[1:0] Input Pulse Width (S.EPP Only) 6 BCLKs 8 5 T15: PWRGOOD Inactive Pulse Width 10 BCLKs 8 6, 7 NOTES: ® 1. Unless otherwise noted, all specifications in this table apply to all Intel Celeron™ processor frequencies 2. These specifications are tested during manufacturing 3. All AC timings for the CMOS signals are referenced to the BCLK rising edge at 125 V at the processor core pins. All CMOS signal timings (address bus, data bus, etc) are referenced at 125 V 4. These signals may be driven asynchronously 5. This specification only applies when the APIC is enabled and the LINT1 or LINT0 pin is configured as an edge-triggered interrupt with fixed delivery;

otherwise, specification T14 applies. 6. When driven inactive or after VCCCORE, and BCLK become stable 7. If the BCLK signal meets its AC specification within 150 ns of turning on, then the PWRGOOD inactive pulse width specification (T15) is waived and BCLK may start after PWRGOOD is asserted. PWRGOOD must still remain below VIL,max until all the voltage planes meet the voltage tolerance specifications. PWRGOOD must remain below VIL,max (Table 6) until all the voltage planes meet the voltage tolerance specifications in Table 5 and BCLK has met the BCLK AC specifications in Table 10 for at least 10 clock cycles. PWRGOOD must rise glitch-free and monotonically to 25 V Table 18. System Bus AC Specifications (Reset Conditions) (for Both S.EP and PPGA Packages) 1 T# Parameter Min T16: Reset Configuration Signals (A[14:5]#, BR0#, FLUSH#, INIT#) Setup Time 4 T17: Reset Configuration Signals (A[14:5]#, BR0#, FLUSH#, INIT#) Hold Time 2 Max 20 Unit Figure Notes BCLKs 6 Before

deassertion of RESET# BCLKs 6 After clock that deasserts RESET# NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel ® Celeron™ processor frequencies Datasheet 35 Intel® Celeron™ Processor up to 700 MHz Table 19. System Bus AC Specifications (Reset Conditions) (for the FC-PGA Package) 1 T# Parameter Min T16: Reset Configuration Signals (A[14:5]#, BR0#, INIT#) Setup Time 4 T17: Reset Configuration Signals (A[14:5]#, BR0#, INIT#) Hold Time 2 T18: Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Setup Time 1 T19: Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Delay Time T20: Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Hold Time 2 Max Unit Figure Notes BCLKs 7 Before deassertion of RESET# BCLKs 7 After clock that deasserts RESET# ms 7 Before deassertion of RESET#, 3 5 BCLKs 7 After assertion of RESET#, 2, 3 20 BCLKs 7 After clock that deasserts RESET#, 3 20 NOTES: 1. Unless otherwise

noted, all specifications in this table apply to Intel® Celeron™ FC-PGA processors at all frequencies and cache sizes. 2. For a reset, the clock ratio defined by these signals must be a safe value (their final or a lower-multiplier) within this delay unless PWRGOOD is being driven inactive. 3. These parameters apply to processor engineering samples only For production units, the processor core frequency will be determined through the processor internal logic. Table 20. System Bus AC Specifications (APIC Clock and APIC I/O) at the Processor Edge Fingers (for S.EP Package) 1, 2, 3, 4 T# Parameter Min Max Unit Figure T21’: PICCLK Frequency 2.0 33.3 MHz T22’: PICCLK Period 30.0 500.0 ns 3 T23’: PICCLK High Time 12.0 ns 3 T24’: PICCLK Low Time 12.0 ns 3 T25’: PICCLK Rise Time 0.25 3.0 ns 3 T26’: PICCLK Fall Time 0.25 3.0 ns 3 Notes T27’: PICD[1:0] Setup Time 8.5 ns 5 5 T28’: PICD[1:0] Hold Time 3.0 ns 5 5 T29’: PICD[1:0] Valid

Delay 3.0 ns 4 5, 6, 7 12.0 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. Not 100% tested Specified by design characterization 3. All AC timings for the APIC I/O signals are referenced to the PICCLK rising edge at 07 V at the processor edge fingers. All APIC I/O signal timings are referenced at 125 V at the processor edge fingers 4. This specification applies to Intel Celeron processors operating with a 66 MHz Intel Celeron processor system bus only. 5. Referenced to PICCLK rising edge 6. For open drain signals, valid delay is synonymous with float delay 7. Valid delay timings for these signals are specified to 25 V +5% 36 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 21. System Bus AC Specifications (APIC Clock and APIC I/O) at the Processor Core Pins (For S.EP and PGA Packages) 1, 2, 3, 4 T# Parameter Min Max Unit Figure T21: PICCLK Frequency 2.0 33.3 MHz T22: PICCLK

Period 30.0 500.0 ns 3 Notes T23: PICCLK High Time • S.EPP and PPGA 11.0 ns 3 @>2.0V • FC-PGA 10.5 ns 3 @>2.0V • S.EPP and PPGA 11.0 ns 3 @<0.5V • FC-PGA 10.5 ns 3 @<0.5V T25: PICCLK Rise Time 0.25 3.0 ns 3 (0.5V-20V) T26: PICCLK Fall Time 0.25 3.0 ns 3 (2.0V-05V) T24: PICCLK Low Time T27: PICD[1:0] Setup Time • S.EPP and PPGA 8.0 ns 5 5 • FC-PGA 5.0 ns 5 5 T28: PICD[1:0] Hold Time 2.5 ns 5 5 T29: PICD[1:0] Valid Delay (S.EPP and PPGA only) 1.5 10.0 ns 4 5, 6, 7 T29a: PICD[1:0] Valid Delay (Rising Edge) (FC-PGA only) 1.5 8.7 ns 4 5, 6, 8 T29b: PICD[1:0] Valid Delay (Falling Edge) (FC-PGA only) 1.5 12.0 ns 4 5, 6, 8 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. These specifications are tested during manufacturing 3. All AC timings for the APIC I/O signals are referenced to the PICCLK rising edge at 125 V at the

processor core pins. All APIC I/O signal timings are referenced at 125 V at the processor core pins 4. This specification applies to Intel Celeron processors operating with a 66 MHz Intel Celeron processor system bus only. 5. Referenced to PICCLK rising edge 6. For open drain signals, valid delay is synonymous with float delay 7. Valid delay timings for these signals are specified to 25 V +5% 8. Valid delay timings for these signals are specified to 15 V +5% Datasheet 37 Intel® Celeron™ Processor up to 700 MHz Table 22. System Bus AC Specifications (TAP Connection) at the Processor Edge Fingers (For S.EP Package) 1, 2, 3, 4, 5 T# Parameter Min T30’: TCK Frequency Max Unit 16.667 MHz Figure Notes T31’: TCK Period 60.0 ns 3 T32’: TCK High Time 25.0 ns 3 @1.7 V T33’: TCK Low Time 25.0 ns 3 @0.7 V T34’: TCK Rise Time 5.0 ns 3 (0.7 V–17 V) 4 T35’: TCK Fall Time 5.0 ns 3 (1.7 V–07 V) 4 40.0 ns 6 Asynchronous T36’: TRST# Pulse

Width T37’: TDI, TMS Setup Time 5.5 ns 9 5 T38’: TDI, TMS Hold Time 14.5 ns 9 5 T39’: TDO Valid Delay 2.0 13.5 ns 9 6, 7 28.5 ns 9 6, 7 27.5 ns 9 6, 8, 9 T40’: TDO Float Delay T41’: All Non-Test Outputs Valid Delay 2.0 T42’: All Non-Test Inputs Setup Time ns 9 6, 8, 9 T43’: All Non-Test Inputs Setup Time 5.5 27.5 ns 9 5, 8, 9 T44’: All Non-Test Inputs Hold Time 14.5 ns 9 5, 8, 9 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel ® Celeron™ processor frequencies 2. All AC timings for the TAP signals are referenced to the TCK rising edge at 070 V at the processor edge fingers. All TAP signal timings (TMS, TDI, etc) are referenced at 125 V at the processor edge fingers 3. Not 100% tested Specified by design characterization 4. 1 ns can be added to the maximum TCK rise and fall times for every 1 MHz below 16667 MHz 5. Referenced to TCK rising edge 6. Referenced to TCK falling edge 7. Valid delay

timing for this signal is specified to 25 V +5% 8. Non-Test Outputs and Inputs are the normal output or input signals (besides TCK, TRST#, TDI, TDO, and TMS). These timings correspond to the response of these signals due to TAP operations 9. During Debug Port operation, use the normal specified timings rather than the TAP signal timings 38 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 23. System Bus AC Specifications (TAP Connection) at the Processor Core Pins (for Both S.EP and PPGA Packages) 1, 2, 3 T# Parameter Min T30: TCK Frequency Max Unit 16.667 MHz Figure T31: TCK Period 60.0 ns 3 T32: TCK High Time 25.0 ns 3 T33: TCK Low Time 25.0 Notes @1.7 V 10 ns 3 @0.7 V 10 T34: TCK Rise Time 5.0 ns 3 (0.7 V–17 V) 4, 10 T35: TCK Fall Time 5.0 ns 3 (1.7 V–07 V) 4, 10 ns 6 Asynchronous 10 T36: TRST# Pulse Width 40.0 T37: TDI, TMS Setup Time 5.0 ns 9 5 T38: TDI, TMS Hold Time 14.0 ns 9 5 T39: TDO Valid Delay 1.0 10.0

ns 9 6, 7 25.0 ns 9 6, 7, 10 25.0 ns 9 6, 8, 9 25.0 ns 9 6, 8, 9, 10 T40: TDO Float Delay T41: All Non-Test Outputs Valid Delay 2.0 T42: All Non-Test Inputs Setup Time T43: All Non-Test Inputs Setup Time 5.0 ns 9 5, 8, 9 T44: All Non-Test Inputs Hold Time 13.0 ns 9 5, 8, 9 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. For the SEP and PPGA packages: All AC timings for the TAP signals are referenced to the TCK rising edge at 1.25 V at the processor core pins All TAP signal timings (TMS, TDI, etc) are referenced at 125 V at the processor core pins. For the FC-PGA package: All AC timings for the TAP signals are referenced to the TCK rising edge at 0.75 V at the processor pins. All TAP signal timings (TMS, TDI, etc) are referenced at 075 V at the processor pins 3. These specifications are tested during manufacturing, unless otherwise noted 4. 1 ns can be added to the maximum TCK rise and

fall times for every 1 MHz below 16667 MHz 5. Referenced to TCK rising edge 6. Referenced to TCK falling edge 7. For the SEP and PPGA packages: Valid delay timing for this signal is specified to 25 V +5% For the FC-PGA package: Valid delay timing for this signal is specified to 1.5 V +3% 8. Non-Test Outputs and Inputs are the normal output or input signals (besides TCK, TRST#, TDI, TDO, and TMS). These timings correspond to the response of these signals due to TAP operations 9. During Debug Port operation, use the normal specified timings rather than the TAP signal timings 10.Not 100% tested Specified by design characterization Datasheet 39 Intel® Celeron™ Processor up to 700 MHz Note: For Figure 3 through Figure 10, the following apply: 1. Figure 3 through Figure 10 are to be used in conjunction with Table 9 through Table 23 2. All AC timings for the AGTL+ signals at the processor edge fingers are referenced to the BCLK rising edge at 0.50 V This reference is to account for

trace length and capacitance on the processor substrate, allowing the processor core to receive the signal with a reference at 1.25 V All AGTL+ signal timings (address bus, data bus, etc) are referenced at 100 V at the processor edge fingers. 3. All AC timings for the AGTL+ signals at the processor core pins are referenced to the BCLK rising edge at 1.25 V All AGTL+ signal timings (address bus, data bus, etc) are referenced at 1.00 V at the processor core pins 4. All AC timings for the CMOS signals at the processor edge fingers are referenced to the BCLK rising edge at 0.50 V This reference is to account for trace length and capacitance on the processor substrate, allowing the processor core to receive the signal with a reference at 1.25 V All CMOS signal timings (compatibility signals, etc) are referenced at 125 V at the processor edge fingers. 5. All AC timings for the APIC I/O signals at the processor edge fingers are referenced to the PICCLK rising edge at: 0.7 V for SEP and PPGA

packages and 075 V for the FC-PGA package. All APIC I/O signal timings are referenced at 125 V for SEP and PPGA packages and 0.75 V for the FC-PGA package at the processor edge fingers 6. All AC timings for the TAP signals at the processor edge fingers are referenced to the TCK rising edge at 0.70 V for SEP and PPGA packages and 075 V for the FC-PGA package All TAP signal timings (TMS, TDI, etc.) are referenced at 125 V for SEP and PPGA packages and 0.75 V for the FC-PGA package at the processor edge fingers Figure 2. BCLK to Core Logic Offset BCLK at Edge Fingers 0.5V T1B’ BCLK at Core Logic 1.25V Figure 3. BCLK*, PICCLK, and TCK Generic Clock Waveform th tr 1.7V (20V*) 1.25V CLK 0.7V (05V*) tf tl tp Tr Tf Th Tl Tp = T5, pT25, T34 (Rise Time) = T6, T26, T35 (Fall Time) = T3, T23, T32 (High Time) = T4, T24, T33 (Low Time) = T1, T22, T31 (BLCK, TCK, PICCLK Period) Note: BCLK is referenced to 0.5 V and 20 V PICCLK is referenced to 07 V and 17 V For S.EP and PPGA packages, TCK

is referenced to 07 V and 17 V For the FC-PGA package, TCK is referenced to V REF ±200mV. 40 Datasheet Intel® Celeron™ Processor up to 700 MHz Figure 4. System Bus Valid Delay Timings CLK Tx Tx Valid V Signal Valid Tpw Tx = T7, T11, T29a, T29b (Valid Delay) Tpw = T14, T14B, T15 (Pulse Width) V = 1.0V for AGTL+ signal group; For S.EP and PPGA packages, 125V for CMOS, APIC and JTAG signal groups For FC-PGA package, 0.75V for CMOS, APIC and TAP signal groups Figure 5. System Bus Setup and Hold Timings CLK Signal Ts Th V Valid Ts = T8, T12, T27 (Setup Time) Th = T9, T13, T28 (Hold Time) V = 1.0V for AGTL+ signal group; For S.EP and PPGA packages, 125V for APIC and JTAG signal groups For the FC-PGA package, 0.75V for APIC and TAP signal groups Figure 6. System Bus Reset and Configuration Timings (For the SEP and PPGA Packages) BCLK Tu Tt RESET# Tv Tw Configuration (A[14:5]#, BR0#, FLUSH#, INT#) Valid Tt Tu Tv Tw Tx Datasheet Tx = T9 (AGTL+ Input Hold Time) = T8

(AGTL+ Input Setup Time) = T10 (RESET# Pulse Width) = T16 (Reset Configuration Signals (A[14:5]#, BR0#, FLUSH#, INIT#) Setup Time) = T17 (Reset Configuration Signals (A[14:5]#, BR0#, FLUSH#, INIT#) Hold Time) 41 Intel® Celeron™ Processor up to 700 MHz Figure 7. System Bus Reset and Configuration Timings (For the FC-PGA Package) BCLK Tu Tt RESET# Tv Ty Configuration (A20M#, IGNNE#, LINT[1:0]) Tx Tz Safe Valid Tw Configuration (A[14:5]#, BR0#, FLUSH#, INT#) Valid Tt Tu Tv Tw Tx = T9 (AGTL+ Input Hold Time) = T8 (AGTL+ Input Setup Time) = T10 (RESET# Pulse Width) = T16 (Reset Configuration Signals (A[14:5]#, BR0#, FLUSH#, INIT#) Setup Time) = T17 (Reset Configuration Signals (A[14:5]#, BR0#, FLUSH#, INIT#) Hold Time) T20 (Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Hold Time) Ty = T19 (Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Delay Time) Tz = T18 (Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Setup Time) Figure 8. Power-On Reset and

Configuration Timings BCLK VccCORE, VTT, VREF PWRGOOD VIL, max Ta VIH, min Tb RESET# TC Configuration (A20M#, IGNNE#, INTR, NMI) Valid Ratio Ta Tb Tc 42 = T15 (PWRGOOD Inactive Pulse) = T10 (RESET# Pulse Width) = T20 (Reset Configuration Signals (A20M#, IGNNE#, LINT[1:0]) Hold Time) (FC-PGA) Datasheet Intel® Celeron™ Processor up to 700 MHz Figure 9. Test Timings (TAP Connection) 1.25V TCK Tv Tw Tr Ts 1.25V TDI, TMS Input Signals Tx Tu Ty Tz TDO Output Signals Tr = T43 (All Non-Test Inputs Setup Time) Ts = T44 (All Non-Test Inputs Hold Time) Tu = T40 (TDO Float Delay) Tv = T37 (TDI, TMS Setup Time) Tw = T38 (TDI, TMS Hold Time) Tx = T39 (TDO Valid Delay) Ty = T41 (All Non-Test Outputs Valid Delay) Tz = T42 (All Non-Test Outputs Float Delay) Figure 10. Test Reset Timings TRST# 1.25V Tq Tq = T37 (TRST# Pulse Width) C Datasheet 43 Intel® Celeron™ Processor up to 700 MHz 3.0 System Bus Signal Simulations Signals driven on the Intel® Celeron™

processor system bus should meet signal quality specifications to ensure that the components read data properly and to ensure that incoming signals do not affect the long term reliability of the component. Specifications are provided for simulation at the processor core; guidelines are provided for correlation to the processor edge fingers. These edge finger guidelines are intended for use during testing and measurement of system signal integrity. Violations of these guidelines are permitted, but if they occur, simulation of signal quality at the processor core should be performed to ensure that no violations of signal quality specifications occur. Meeting the specifications at the processor core in Table 24, Table 27, and Table 30 ensures that signal quality effects will not adversely affect processor operation, but does not necessarily guarantee that the guidelines in Table 26, Table 29, and Table 31 will be met. 3.1 System Bus Clock (BCLK) Signal Quality Specifications and

Measurement Guidelines Table 24 describes the BCLK signal quality specifications at the processor core for both S.EP and PPGA Packages. Table 25 shows the BCLK and PICCLK signal quality specifications at the processor core for the FC-PGA package. Table 26 describes guidelines for signal quality measurement at the processor edge fingers. Figure 11 describes the signal quality waveform for the system bus clock at the processor core pins; Figure 12 describes the signal quality waveform for the system bus clock at the processor edge fingers. Table 24. BCLK Signal Quality Specifications for Simulation at the Processor Core (for Both S.EP and PPGA Packages)1 T# Parameter Min V1: BCLK VIL V2: BCLK VIH 2.0 V3: VIN Absolute Voltage Range –0.7 V4: Rising Edge Ringback 1.7 V5: Falling Edge Ringback Nom Max Unit Figure 0.5 V 11 V 11 2 V 11 2 V 11 3 V 11 3 3.5 0.7 Notes NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel®

Celeron™ processor frequencies 2. This is the Intel Celeron processor system bus clock overshoot and undershoot specification for 66 MHz system bus operation. 3. The rising and falling edge ringback voltage specified is the minimum (rising) or maximum (falling) absolute voltage the BCLK signal can dip back to after passing the VIH (rising) or VIL (falling) voltage limits. This specification is an absolute value. 44 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 25. BCLK/PICCLK Signal Quality Specifications for Simulation at the Processor Pins (for the FC-PGA Package) 1 T# Parameter Min Nom Max Unit Figure V1: BCLK VIL 0.50 V 11 V1: PICCLK VIL 0.70 V 11 V 11 2.00 V2: BCLK VIH V2: PICCLK VIH 2.00 V3: VIN Absolute Voltage Range –0.58 V4: BCLK Rising Edge Ringback V4: PICCLK Rising Edge Ringback Notes V 11 V 11 2.00 V 11 2 2.00 V 11 2 3.18 V5: BCLK Falling Edge Ringback 0.50 V 11 2 V5: PICCLK Falling Edge Ringback 0.70 V 11

2 NOTES: 1. Unless otherwise noted, all specifications in this table apply to FC-PGA processors frequencies and cache sizes. 2. The rising and falling edge ringback voltage specified is the minimum (rising) or maximum (falling) absolute voltage the BCLK/PICCLK signal can dip back to after passing the VIH (rising) or VIL (falling) voltage limits. This specification is an absolute value. Figure 11. BCLK, TCK, PICCLK Generic Clock Waveform at the Processor Core Pins T3 V3 V4 V2 V1 V5 T6 Datasheet V3 T4 T5 45 Intel® Celeron™ Processor up to 700 MHz Table 26. BCLK Signal Quality Guidelines for Edge Finger Measurement (for the S.EP Package) 1 T# Parameter Min Nom V1’: BCLK VIL V2’: BCLK VIH 2.0 V3’: VIN Absolute Voltage Range –0.5 V4’: Rising Edge Ringback 2.0 Unit Figure 0.5 V 12 V 12 V 12 2 3.3 V5’: Falling Edge Ringback V6’: Tline Ledge Voltage Max 1.0 V7’: Tline Ledge Oscillation Notes V 12 3 0.5 V 12 3 1.7 V 12 At

Ledge Midpoint 4 0.2 V 12 Peak-to-Peak 5 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. This is the Intel Celeron processor system bus clock overshoot and undershoot measurement guideline 3. The rising and falling edge ringback voltage guideline is the minimum (rising) or maximum (falling) absolute voltage the BCLK signal may dip back to after passing the VIH (rising) or VIL (falling) voltage limits. This guideline is an absolute value. 4. The BCLK at the processor edge fingers may have a dip or ledge midway on the rising or falling edge The midpoint voltage level of this ledge should be within the range of the guideline. 5. The ledge (V7) is allowed to have peak-to-peak oscillation as given in the guideline Figure 12. BCLK, TCK, PICCLK Generic Clock Waveform at the Processor Edge Fingers T3 V3 V4 V2 V7 V6 V1 V5 V3 T6 46 T4 T5 Datasheet Intel® Celeron™ Processor up to 700 MHz 3.2 AGTL+

Signal Quality Specifications and Measurement Guidelines Many scenarios have been simulated to generate a set of AGTL+ layout guidelines which are available in AP-585, Pentium® II Processor AGTL+ Guidelines (Order Number 243330). Refer to the Pentium® II Processor Developer’s Manual (Order Number 243502) for the AGTL+ buffer specification. Table 27 provides the AGTL+ signal quality specifications (for both the S.EP and PPGA Packages) for use in simulating signal quality at the processor core. Table 28 provides the AGTL+ signal quality specifications (for the FC-PGA Packages) for use in simulating signal quality at the processor core. Table 29 provides AGTL+ signal quality guidelines for measuring and testing signal quality at the processor edge fingers. Figure 13 describes the signal quality waveform for AGTL+ signals at the processor core and edge fingers. For more information on the AGTL+ interface, see the Pentium® II Processor Developer’s Manual (Order Number 243502). Table

27. AGTL+ Signal Groups Ringback Tolerance Specifications at the Processor Core (For Both the S.EP and PPGA Packages) 1, 2, 3 T# Parameter α: Overshoot Min Unit Figure Notes 100 mV 13 4 τ: Minimum Time at High 1.00 ns 13 4 ρ: Amplitude of Ringback –100 mV 13 4, 5 φ: Final Settling Voltage 100 mV 13 4 δ: Duration of Squarewave Ringback N/A ns 13 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. Specifications are for the edge rate of 03 - 08 V/ns See Figure 13 for the generic waveform 3. All values specified by design characterization 4. This specification applies to Intel Celeron processors operating with a 66 MHz Intel Celeron processor system bus only. 5. Ringback below VREF + 20 mV is not supported Table 28. AGTL+ Signal Groups Ringback Tolerance Specifications at the Processor Pins (For FC-PGA Packages) 1, 2, 3 T# Parameter α: Overshoot Min Unit Figure 100 mV 13

Notes 4, 8, 9, 10 τ: Minimum Time at High 0.50 ns 13 9 ρ: Amplitude of Ringback –200 mV 13 5, 6, 7, 8 φ: Final Settling Voltage 200 mV 13 8 δ: Duration of Squarewave Ringback N/A ns 13 NOTES: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies 2. Specifications are for the edge rate of 03 - 08V/ns See Figure 13 for the generic waveform 3. All values specified by design characterization 4. See Table 32 for maximum allowable overshoot 5. Ringback between VREF + 100 mV and VREF + 200 mV or VREF - 200 mV and VREF - 100 mVs requires the flight time measurements to be adjusted as described in the Intel AGTL+ Specifications (Intel®Pentium®II Developers Manual). Ringback below VREF + 100 mV or above VREF - 100 mV is not supported 6. Intel recommends simulations not exceed a ringback value of VREF ±200 mV to allow margin for other sources of system noise. 7. A negative value for ρ indicates that the

amplitude of ringback is above VREF (ie, φ = -100 mV specifies the signal cannot ringback below VREF + 100 mV). 8. φ and ρ: are measured relative to VREF α: is measured relative to VREF + 200 mV 9. All Ringback entering the Overdrive Region must have flight time correction 10.Overshoot specifications for Ringback do not correspond to Overshoot specifications in Section 34 Datasheet 47 Intel® Celeron™ Processor up to 700 MHz Table 29. AGTL+ Signal Groups Ringback Tolerance Guidelines for Edge Finger Measurement on the S.EP Package 1, 2, 3 T# Parameter Min Unit Figure Notes α’: Overshoot 100 mV 13 τ’: Minimum Time at High 1.5 ns 13 4 ρ’: Amplitude of Ringback –250 mV 13 4, 5 φ’: Final Settling Voltage 250 mV 13 4 δ’: Duration of Squarewave Ringback N/A ns 13 NOTES: 1. Unless otherwise noted, all guidelines in this table apply to all Intel® Celeron™ processor frequencies 2. Guidelines are for the edge rate of 03 - 08 V/ns See

Figure 13 for the generic waveform 3. All values specified by design characterization 4. This guideline applies to Intel Celeron processors operating with a 66 MHz system bus only 5. Ringback below VREF + 250 mV is not supported Figure 13. Low to High AGTL+ Receiver Ringback Tolerance τ α VREF +0.2 φ VREF ρ VREF –0.2 δ 0.7V Clk Ref Vstart Clock Time Note: High to Low case is analogous. 48 Datasheet Intel® Celeron™ Processor up to 700 MHz 3.3 Non-AGTL+ Signal Quality Specifications and Measurement Guidelines There are three signal quality parameters defined for non-AGTL+ signals: overshoot/undershoot, ringback, and settling limit. All three signal quality parameters are shown in Figure 14 for the nonAGTL+ signal group Figure 14. Non-AGTL+ Overshoot/Undershoot, Settling Limit, and Ringback Settling Limit Overshoot V HI Rising-Edge Ringback Falling-Edge Ringback Settling Limit VLO VSS Time Undershoot NOTES: 1. For the FC-PGA package, VHI = 15V for all

non-AGTL+ signals except for BCLK, PICCLK, and PWRGOOD VHI = 2.5 V for BCLK, PICCLK, and PWRGOOD BCLK and PICCLK signal quality is detailed in Section 31 3.31 Overshoot/Undershoot Guidelines Overshoot (or undershoot) is the absolute value of the maximum voltage above the nominal high voltage or below VSS. The overshoot/undershoot guideline limits transitions beyond VCC or VSS due to the fast signal edge rates. (See Figure 14 for non-AGTL+ signals) The processor can be damaged by repeated overshoot events on the voltage tolerant buffers if the charge is large enough (i.e, if the overshoot is great enough) The PPGA and SEP packages have 25V tolerant buffers and the FC-PGA package has 1.5V or 25V tolerant buffers However, excessive ringback is the dominant detrimental system timing effect resulting from overshoot/undershoot (i.e, violating the overshoot/undershoot guideline will make satisfying the ringback specification difficult). The overshoot/undershoot guideline is 07 V for the

PPGA and S.EP packages and 03 V for the FC-PGA package and assumes the absence of diodes on the input. These guidelines should be verified in simulations without the on-chip ESD protection diodes present because the diodes will begin clamping the signals (2.5 V tolerant signals for the S.EP and PPGA packages, and 25 V or 15 V tolerant signals for the FC-PGA package) beginning at approximately 0.7 V above the appropriate supply and 07 V below VSS If signals are not reaching the clamping voltage, this will not be an issue. A system should not rely on the diodes for overshoot/undershoot protection as this will negatively affect the life of the components and make meeting the ringback specification very difficult. Datasheet 49 Intel® Celeron™ Processor up to 700 MHz 3.32 Ringback Specification Ringback refers to the amount of reflection seen after a signal has switched. The ringback specification is the voltage that the signal rings back to after achieving its maximum absolute

value. (See Figure 14 for an illustration of ringback) Excessive ringback can cause false signal detection or extend the propagation delay. The ringback specification applies to the input pin of each receiving agent. Violations of the signal ringback specification are not allowed under any circumstances for non-AGTL+ signals. Ringback can be simulated with or without the input protection diodes that can be added to the input buffer model. However, signals that reach the clamping voltage should be evaluated further See Table 30 for the signal ringback specifications for non-AGTL+ signals for simulations at the processor core, and Table 31 for guidelines on measuring ringback at the edge fingers. Table 32 lists the ringback specifications for the FC-PGA package. Table 30. Signal Ringback Specifications for Non-AGTL+ Signal Simulation at the Processor Core (S.EP and PPGA Packages) 1 Input Signal Group Transition Maximum Ringback (with Input Diodes Present) Unit Non-AGTL+ Signals 01

1.7 V 14 Non-AGTL+ Signals 10 0.7 V 14 Figure Notes NOTE: 1. Unless otherwise noted, all specifications in this table apply to all Intel® Celeron™ processor frequencies Table 31. Signal Ringback Guidelines for Non-AGTL+ Signal Edge Finger Measurement (S.EP Package) 1 Input Signal Group Transition Maximum Ringback (with Input Diodes Present) Unit Non-AGTL+ Signals 01 2.0 V 14 Non-AGTL+ Signals 10 0.7 V 14 Figure Notes NOTE: ® 1. Unless otherwise noted, all specifications in this table apply to all Intel Celeron™ processor frequencies Table 32. Signal Ringback Specifications for Non-AGTL+ Signal Simulation at the Processor Pins (FC-PGA Package) 1 Transition Maximum Ringback (with Input Diodes Present) Unit Figure Non-AGTL+ Signals 01 VREF + 0.200 V 16 PWRGOOD 01 2.0 V 16 Non-AGTL+ Signals 10 VREF - 0.200 V 16 Input Signal Group NOTES: 1. Unless otherwise noted, all specifications in this table apply to all FC-PGA processor frequencies

and cache sizes 50 Datasheet Intel® Celeron™ Processor up to 700 MHz 3.33 Settling Limit Guideline Settling limit defines the maximum amount of ringing at the receiving pin that a signal must reach before its next transition. The amount allowed is 10 percent of the total signal swing (VHI – VLO) above and below its final value. A signal should be within the settling limits of its final value, when either in its high state or low state, before it transitions again. Signals that are not within their settling limit before transitioning are at risk of unwanted oscillations which could jeopardize signal integrity. Simulations to verify settling limit may be done either with or without the input protection diodes present. Violation of the settling limit guideline is acceptable if simulations of 5 to 10 successive transitions do not show the amplitude of the ringing increasing in the subsequent transitions. 3.4 AGTL+ Signal Quality Specifications and Measurement Guidelines

(FC-PGA Package) 3.41 Overshoot/Undershoot Guidelines (FC-PGA Package) Overshoot (or undershoot) is the absolute value of the maximum voltage above the nominal high voltage or below VSS. The overshoot guideline limits transitions beyond VCC or VSS due to the fast signal edge rates. The processor can be damaged by repeated overshoot events on 15 V or 25 V tolerant buffers if the charge is large enough (i.e, if the overshoot is great enough) Determining the impact of an overshoot/undershoot condition requires knowledge of the magnitude, the pulse direction and the activity factor (AF). Permanent damage to the processor is the likely result of excessive overshoot/undershoot. Violating the overshoot/undershoot guideline will also make satisfying the ringback specification difficult. When performing simulations to determine impact of overshoot and overshoot, ESD diodes must be properly characterized. ESD protection diodes do not act as voltage clamps and will not provide overshoot or

undershoot protection. ESD diodes modeled within Intel I/O Buffer models do not clamp undershoot or overshoot and will yield correct simulation results. If other I/O buffer models are being used to characterize the FC-PGA processor performance, care must be taken to ensure that ESD models do not clamp extreme voltage levels. Intel I/O Buffer models also contain I/O capacitance characterization. Therefore, removing the ESD diodes from an I/O Buffer model will impact results and may yield excessive overshoot/undershoot. 3.42 Overshoot/Undershoot Magnitude (FC-PGA Package) Magnitude describes the maximum potential difference between a signal and its voltage reference level, VSS (overshoot) and VTT (undershoot). While overshoot can be measured relative to VSS using one probe (probe to signal and GND lead to VSS), undershoot must be measured relative to VTT. This can be accomplished by simultaneously measuring the VTT plane while measuring the signal undershoot. Today’s oscilloscopes

can easily calculate the true undershoot waveform using a Math function where the Signal waveform is subtracted from the VTT waveform. The true undershoot waveform can also be obtained with the following oscilloscope data file analysis: Converted Undershoot Waveform = VTT- Signal measured Note: The converted undershoot waveform appears as a positive (overshoot) signal. Note: Overshoot (rising edge) and undershoot (falling edge) conditions are separate and their impact must be determined independently. Datasheet 51 Intel® Celeron™ Processor up to 700 MHz After the true waveform conversion, the undershoot/overshoot specifications shown in Table 34 and Table 35 can be applied to the converted undershoot waveform using the same magnitude and pulse duration specifications used with an overshoot waveform. Overshoot/undershoot magnitude levels must observe the Absolute Maximum Specifications listed in Table 34 and Table 35. These specifications must not be violated at any time

regardless of bus activity or system state. Within these specifications are threshold levels that define different allowed pulse durations. Provided that the magnitude of the overshoot/undershoot is within the Absolute Maximum Specifications (2.18V), the pulse magnitude, duration and activity factor must all be used to determine if the overshoot/undershoot pulse is within specifications. 3.43 Overshoot/Undershoot Pulse Duration (FC-PGA Package) Pulse duration describes the total time an overshoot/undershoot event exceeds the overshoot/ undershoot reference voltage (Vos ref = 1.635V) The total time could encompass several oscillations above the reference voltage. Multiple overshoot/undershoot pulses within a single overshoot/undershoot event may need to be measured to determine the total pulse duration. Note: Oscillations below the reference voltage can not be subtracted from the total overshoot/undershoot pulse duration. Note: Multiple Overshoot/Undershoot events occurring within

the same clock cycle must be considered together as one event. Using the worst case Overshoot/Undershoot Magnitude, sum together the individual Pulse Durations to determine the total Overshoot/Undershoot Pulse Duration for that total event. 3.44 Activity Factor (FC-PGA Package) Activity Factor (AF) describes the frequency of overshoot (or undershoot) occurrence relative to a clock. Since the highest frequency of assertion of an AGTL+ or a CMOS signal is every other clock, an AF = 1 indicates that the specific overshoot (or undershoot) waveform occurs EVERY OTHER clock cycle. Thus, an AF = 001 indicates that the specific overshoot (or undershoot) waveform occurs one time in every 200 clock cycles. The specifications provided in Table 34 and Table 35 show the Maximum Pulse Duration allowed for a given Overshoot/Undershoot Magnitude at a specific Activity Factor. Each Table entry is independent of all others, meaning that the Pulse Duration reflects the existence of overshoot/

undershoot events of that magnitude ONLY. A platform with an overshoot/undershoot that just meets the pulse duration for a specific magnitude where the AF < 1, means that there can be NO other overshoot/undershoot events, even of lesser magnitude (note that if AF = 1, then the event occurs at all times and no other events can occur). 52 Note: Activity factor for AGTL+ signals is referenced to BCLK frequency. Note: Activity factor for CMOS signals is referenced to PICCLK frequency. Datasheet Intel® Celeron™ Processor up to 700 MHz 3.45 Reading Overshoot/Undershoot Specification Tables (FC-PGA Package) The overshoot/undershoot specification for the FC-PGA package processor is not a simple single value. Instead, many factors are needed to determine the over/undershoot specification In addition to the magnitude of the overshoot, the following parameters must also be known: the junction temperature the processor will be operating, the width of the overshoot (as measured

above 1.635 V) and the Activity Factor (AF) To determine the allowed overshoot for a particular overshoot event, the following must be done: 1. Determine the signal group that particular signal falls into If the signal is an AGTL+ signal operating with a 66 MHz system bus, use Table 34 (66 MHz AGTL+ signal group). If the signal is a CMOS signal, use Table 35 (33 MHz CMOS signal group). 2. Determine the maximum junction temperature (Tj) for the range of processors that the system will support (80oC or 90oC). 3. Determine the Magnitude of the overshoot (relative to Vss) 4. Determine the Activity Factor (how often does this overshoot occur?) 5. From the appropriate Specification table, read off the Maximum Pulse Duration (in ns) allowed. 6. Compare the specified Maximum Pulse Duration to the signal being measured If the Pulse Duration measured is less than the Pulse Duration shown in the table, then the signal meets the specifications. The above procedure is similar for undershoots after

the undershoot waveform has been converted to look like an overshoot. Undershoot events must be analyzed separately from Overshoot events as they are mutually exclusive. Table 33 shows an example of how the maximum pulse duration is determined for a given waveform. Table 33. Example Platform Information Required Information Maximum Platform Support Notes FSB Signal Group 66 MHz AGTL+ Max Tj 90 °C Overshoot Magnitude 2.13V Measured Value Activity Factor (AF) 0.1 Measured overshoot occurs on average every 20 clocks NOTES: 1. Corresponding Maximum Pulse Duration Specification - 32 ns 2. Pulse Duration (measured) - 20 ns Given the above parameters, and using Table 34 (90oC/AF=0.1 column) the maximum allowed pulse duration is 3.2 ns Since the measured pulse duration is 20ns, this particular overshoot event passes the overshoot specifications, although this doesn’t guarantee that the combined overshoot/ undershoot events meet the specifications. Datasheet 53 Intel®

Celeron™ Processor up to 700 MHz 3.46 Determining if a System meets the Overshoot/Undershoot Specifications (FC-PGA Package) The overshoot/undershoot specifications listed in the following tables specify the allowable overshoot/undershoot for a single overshoot/undershoot event. However most systems will have multiple overshoot and/or undershoot events that each have their own set of parameters (duration, AF and magnitude). While each overshoot on its own may meet the overshoot specification, when the total impact of all overshoot events is accounted for, the system may fail. A guideline to ensure a system passes the overshoot and undershoot specifications is shown below. It is important to meet these guidelines; otherwise, contact your Intel field representative. 1. Insure no signal (CMOS or AGTL+) ever exceed the 1635V; OR 2. If only one overshoot/undershoot event magnitude occurs, ensure it meets the over/undershoot specifications in the following tables; OR 3. If multiple

overshoots and/or multiple undershoots occur, measure the worst case pulse duration for each magnitude and compare the results against the AF = 1 specifications. If all of these worst case overshoot or undershoot events meet the specifications (measured time < specifications) in the table (where AF=1), then the system passes. The following notes apply to Table 34 and Table 35. NOTES: 1. Overshoot/Undershoot Magnitude = 218V is an Absolute value and should never be exceeded 2. Overshoot is measured relative to VSS 3. Undershoot is measured relative to VTT 4. Overshoot/Undershoot Pulse Duration is measured relative to 1635V 5. Ringbacks below VTT can not be subtracted from Overshoots/Undershoots 6. Lesser Undershoot does not allocate longer or larger Overshoot 7. Consult the appropriate layout guidelines provided in the specific platform design guide 8. All values specified by design characterization Table 34. 66 MHz AGTL+ Signal Group Overshoot/Undershoot Tolerance at Processor Pins

(FC-PGA Package) 1, 2 Maximum Pulse Duration at Tj = 80 °C (ns) Maximum Pulse Duration at Tj = 90 °C (ns) AF = 0.01 AF = 0.1 AF = 1 AF = 0.01 AF = 0.1 AF = 1 2.18 V 30 3.8 0.38 18 1.8 0.18 2.13 V 30 7.4 0.74 30 3.2 0.32 2.08 V 30 13.6 1.36 30 6.4 0.64 2.03 V 30 25 2.5 30 12 1.1 1.98 V 30 30 4.56 30 22 2 Overshoot/ Undershoot Magnitude 1.93 V 30 30 8.2 30 30 3.8 1.88 V 30 30 15 30 30 6.8 NOTES: 1. BCLK period is 300 ns 2. Measurements taken at the processor socket pins on the solder-side of the motherboard 54 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 35. 33 MHz CMOS Signal Group Overshoot/Undershoot Tolerance at Processor Pins (FC-PGA Package) 1, 2 Overshoot/ Undershoot Magnitude Maximum Pulse Duration at Tj = 80 °C (ns) Maximum Pulse Duration at Tj = 90 °C (ns) AF = 0.01 AF = 0.01 AF = 0.1 AF = 1 AF = 0.1 AF = 1 2.18 V 60 7.6 0.76 36 3.6 0.36 2.13 V 60 14.8 1.48 60 6.4 0.64 2.08

V 60 27.2 2.7 60 12.8 1.2 2.03 V 60 50 5 60 24 2.2 1.98 V 60 60 9.1 60 44 4 1.93 V 60 60 16.4 60 60 7.6 1.88 V 60 60 30 60 60 13.6 NOTES: 1. PICCLK period is 30 ns 2. Measurements taken at the processor socket pins on the solder-side of the motherboard Figure 15. Maximum Acceptable AGTL+ Overshoot/Undershoot Waveform (FC-PGA Package) Time Dependent Overshoot 2.18V 2.08V 1.98V 1.88V 1.635V VTT Converted Undershoot Waveform Max Overshoot Magnitude Undershoot Magnitude Vss Overshoot = Signal - Vss Magnitude Undershoot = VTT - Signal Magnitude Datasheet Time Dependent Undershoot 55 Intel® Celeron™ Processor up to 700 MHz 4.0 Thermal Specifications and Design Considerations This section provides needed data for designing a thermal solution. However, for the correct thermal measuring processes, refer to AP-905, Intel® Pentium® III Processor Thermal Design Guidelines (Order Number 245087). For the FC-PGA using flip chip pin grid array

packaging technology, Intel specifies the junction temperature (Tjunction). For the SEP package and PPGA package, Intel specifies the case temperature (Tcase). 4.1 Thermal Specifications Table 36 and Table 37 provide both the Processor Power and Heat Sink Design Target for Intel® Celeron™ processors. Processor Power is defined as the total power dissipated by the processor core and its package. Therefore, the SEP Package’s Processor Power would also include power dissipated by the AGTL+ termination resistors. The overall system chassis thermal design must comprehend the entire Processor Power. The Heat Sink Design Target consists of only the processor core, which dissipates the majority of the thermal power. Systems should design for the highest possible thermal power, even if a processor with a lower thermal dissipation is planned. The processor’s heatslug is the attach location for all thermal solutions. The maximum and minimum case temperatures are also specified in Table

36 and Table 37. A thermal solution should be designed to ensure the temperature of the case never exceeds these specifications. Refer to the “developerintelcom” site for more information Table 36. Processor Power for the SEP Package 1 Processor Core Frequency (MHz) L2 Cache Size (KB) Processor Power 2 (W) Heat Sink Design Target 3 (W) Minimum TCASE (°C) Maximum TCASE (°C) 266 0 16.6 16.0 5 85 300 0 18.4 17.8 5 85 300A 128 18.4 17.8 5 85 333 128 20.2 19.7 5 85 366 128 22.2 21.7 5 85 400 128 24.2 23.7 5 85 433 128 24.6 24.1 5 85 NOTES: 1. These values are specified at nominal VCCCORE for the processor core 2. Processor Power is power generated from the SEP Package’s substrate, which includes the processor core and the AGTL+ termination resistors. 3. Heat Sink Design Target refers to the power consumption of the processor core 56 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 37. Processor Power for the PPGA and

FC-PGA Packages 1 Processor Core Frequency (MHz) L2 Cache Size (KB) Thermal Design Power (TDP)2 (W) Power Density 5 (W/cm2) Up to CPUID 0683h Power Density 5 (W/cm2) For CPUID 0686h Heat Sink Design Target (W) Min TCASE (°C) Max TCASE (°C) Max TJUNCTION (°C) TJUNCTION Offset 6 (°C) 300A 128 17.8 NA NA 17.8 5 85 NA NA 333 128 19.7 NA NA 19.7 5 85 NA NA 366 128 21.7 NA NA 21.7 5 85 NA NA 400 128 23.7 NA NA 23.7 5 85 NA NA 433 128 24.1 NA NA 24.1 5 85 NA NA 466 128 25.6 NA NA 25.6 5 70 NA NA 500 128 27.0 NA NA 27.0 5 70 NA NA 533 128 28.3 NA NA 28.3 5 70 NA NA 533A3 128 11.24 15.44 17.54 11.24 NA NA 90 2.5 5663 128 11.94 16.44 18.54 11.94 NA NA 90 2.6 3 128 12.6 4 17.4 4 19.7 4 12.6 4 NA NA 90 2.6 633 128 16.54 22.74 25.84 16.54 NA NA 82 2.6 667 128 17.5 4 24.1 4 27.3 4 17.5 4 NA NA 82 2.6 700 128 18.34 25.24 28.64 18.34 NA NA 80

2.6 600 NOTES: 1. These values are specified at nominal VCCCORE for the processor core 2. Thermal Design Power (TDP) represents the maximum amount of power the thermal solution is required to dissipate. The thermal solution should be designed to dissipate the TDP power without exceeding the maximum Tjunction specification. 3. FC-PGA package only 4. The Thermal Design Power (TDP) Celeron™ processors in production has been redefined The updated TDP values are based on device characterization and do not reflect any silicon design changes to lower processor power consumption. The TDP values represent the thermal design point required to cool Celeron™ processors in the platform environment while executing thermal validation type software. 5. Power density is the maximum power the processor die can dissipate (ie, processor power) divided by the die area over which the power is generated. Power for these processors is generated from the core area shown in Figure 16. 6. Tjunctionoffset

is the worst-case difference between the thermal reading from the on-die thermal diode and the hottest location on the processor’s core. Tjunctionoffset values do not include any thermal diode kit measurement error. Diode kit measurement error must be added to the Tjunctionoffset value from the table Intel has characterized the use of the Analog Devices AD1021 diode measurement kit and found its measurement error to be ±1 oC Figure 16 is a block diagram of the Intel Celeron FC-PGA processor die layout. The layout differentiates the processor core from the cache die area. In effect, the thermal design power identified in Table 37 is dissipated entirely from the processor core area. Thermal solution designs should compensate for this smaller heat flux area and not assume that the power is uniformly distributed across the entire die area. Datasheet 57 Intel® Celeron™ Processor up to 700 MHz Figure 16. Processor Functional Die Layout (CPUID 0686h) 0.337” 0.275” Die Area

= 0.90 cm2 Cache Area = 0.26 cm2 Core Area = 0.64 cm2 0.146” 0.414” Cache Area 0.04 in2 Die Area 0.14 in2 Core Area 0.10 in2 Figure 17. Processor Functional Die Layout (up to CPUID 0683h) 0.362” 0.292” Die Area = 1.05 cm2 Cache Area = 0.32 cm2 Core Area = 0.73 cm2 0.170” 0.448” 4.11 Cache Area 0.05 in2 Die Area 0.16 in2 Core Area 0.11 in2 Thermal Diode The Intel® Celeron™ Processor incorporates an on-die diode that can be used to monitor the die temperature. A thermal sensor located on the motherboard or a standalone measurement kit may monitor the die temperature of the Intel Celeron processor for thermal management purposes. Table 38 to Table 40 provide the diode parameter and interface specifications. Note: 58 The reading of the thermal sensor connected to the thermal diode will not necessarily reflect the temperature of the hottest location on the die. This is due to inaccuracies in the thermal sensor, ondie temperature gradients between the location of

the thermal diode and the hottest location on the die at a given point in time, and time based variations in the die temperature measurement. Time based variations can occur when the sampling rate of the thermal diode (by the thermal sensor) is slower than the rate at which the Tjunction temperature can change. Datasheet Intel® Celeron™ Processor up to 700 MHz Table 38. Thermal Diode Parameters (SEP and PPGA Packages) 4 Symbol Min Iforward bias 5 n ideality 1.0000 Typ 1.0065 Max Unit 500 uA 1.0173 Notes 1 2,3 NOTES: 1. Intel does not support or recommend operation of the thermal diode under reverse bias 2. At room temperature with a forward bias of 630 mV 3. n ideality is the diode ideality factor parameter, as represented by the diode equation: I-Io(e (Vd*q)/(nkT) - 1). 4. Not 100% tested Specified by design characterization Table 39. Thermal Diode Parameters (FC-PGA Package) 1 Symbol Min Iforward bias 5 n ideality 1.0057 Typ 1.0080 Max Unit 300 uA

1.0125 Notes 1 2, 3 NOTES: 1. Intel does not support or recommend operation of the thermal diode under reverse bias 2. Characterized at 100° C with a forward bias current of 5–300 µA 3. The ideality factor, n, represents the deviation from ideal diode behavior as exemplified by the diode equation: Ifw=Is(e^ ((Vd*q)/(nkT)) - 1), where Is = saturation current, q = electronic charge, Vd = voltage across the diode, k = Boltzmann Constant, and T = absolute temperature (Kelvin). 4. Not 100% tested Specified by design characterization Table 40. Thermal Diode Interface Datasheet Pin Name SC242 Connector Signal # 370-Pin Socket Pin # THERMDP B14 AL31 diode anode (p junction) THERMDN B15 AL29 diode cathode (n junction) Pin Description 59 Intel® Celeron™ Processor up to 700 MHz 5.0 Mechanical Specifications There are three package technologies which Intel® Celeron™ processors use. They are the SEP Package, the PPGA package, and the FC-PGA package. The SEP Package

and FC-PGA package contain the processor core and passive components, while the PPGA package does not have passive components. The processor edge connector defined in this document is referred to as the “SC242 connector.” See the SC242 Design Guidelines (Order Number 243397) for further details on the edge connector. The processor socket connector is defined in this document is referred to as the “370-pin socket.” See the 370-Pin Socket (PGA370) Design Guidelines (Order Number 244410) for further details on the socket. 5.1 S.EP Package This section defines the mechanical specifications and signal definitions for the Intel® Celeron™ processor in the S.EP Package 5.11 Materials Information The Intel® Celeron™ processor requires a retention mechanism. This retention mechanism may require motherboard holes to be 0.159" diameter if low cost plastic fasteners are used to secure the retention mechanisms. The larger diameter holes are necessary to provide a robust

structural design that can shock and vibe testing. If captive nuts are used in place of the plastic fasteners, then either the 0.159" or the 0140" diameter holes will suffice as long as the attach mount is used Figure 18 with substrate dimensions is provided to aid in the design of a heat sink and clip. In Figure 19 all area on the secondary side of the substrate is zoned “keep out”, except for 25 mils around the tooling holes and the top and side edges of the substrate. 60 Datasheet Intel® Celeron™ Processor up to 700 MHz Figure 18. Processor Substrate Dimensions (SEP Package) +.007 .062 -005 -Y- -Z- 2.608 27.4 mm SR Opening Square 25.4 mm Copper Slug Square 1.660 1.370 -Y.615 .323 .814 1.196 3.804 -Y- Figure 19. Processor Substrate Primary/Secondary Side Dimensions (SEP Package) .025 Typ Max Non-Keepout Area .025 Typ Max. Non-Keepout Area Secondary Side There Will be No Components on Secodonary Side -D- -G-E- -H- .025 Typ Max. Non-Keepout

Area .025 Typ Max Non-Keepout Area Primary Side -D-G-H- 5.12 -E- Signal Listing (S.EP Package) Table 41 and Table 42 provide the processor edge finger and SC242 connector signal definitions for Intel® Celeron™ processor. The signal locations on the SC242 edge connector are to be used for signal routing, simulation, and component placement on the motherboard. Datasheet 61 Intel® Celeron™ Processor up to 700 MHz Table 41. SEP Package Signal Listing by Pin Number Pin No. Signal Buffer Type Pin No. Pin Name Signal Buffer Type A37 D57# AGTL+ I/O Power/Other A38 VSS Power/Other A39 D46# AGTL+ I/O A40 D49# AGTL+ I/O D51# AGTL+ I/O A1 VTT Power/Other A2 VSS A3 VTT Power/Other A4 IERR# CMOS Output A5 A20M# CMOS Input A41 A6 VSS Power/Other A42 VSS Power/Other A43 D42# AGTL+ I/O A44 D45# AGTL+ I/O A45 D39# AGTL+ I/O A46 VSS Power/Other A47 Reserved Reserved for Future Use A48 D43# AGTL+ I/O A49 D37# AGTL+ I/O A50

VSS Power/Other A51 D33# AGTL+ I/O A52 D35# AGTL+ I/O A53 D31# AGTL+ I/O A54 VSS Power/Other A55 D30# AGTL+ I/O A7 FERR# CMOS Output A8 IGNNE# CMOS Input A9 TDI TAP Input A10 VSS Power/Other A11 TDO TAP Output A12 PWRGOOD CMOS Input A13 TESTHI CMOS Test Input A14 VSS Power/Other A15 THERMTRIP# CMOS Output A16 Reserved Reserved for Future Use A17 LINT0/INTR CMOS Input A18 VSS Power/Other A19 PICD0 APIC I/O A20 PREQ# CMOS Input A56 D27# AGTL+ I/O A57 D24# AGTL+ I/O A58 VSS Power/Other A59 D23# AGTL+ I/O A60 D21# AGTL+ I/O A61 D16# AGTL+ I/O A62 VSS Power/Other A63 D13# AGTL+ I/O A64 D11# AGTL+ I/O A65 D10# AGTL+ I/O A21 BP3# AGTL+ I/O A22 VSS Power/Other A23 BPM0# AGTL+ I/O A24 Reserved Reserved for Pentium II processor Reserved Reserved for Pentium II processor A25 A26 VSS Power/Other A27 Reserved Reserved for Pentium II processor VSS Power/Other Reserved Reserved for Pentium

II processor A66 A28 A67 D14# AGTL+ I/O Reserved Reserved for Pentium II processor A68 D9# AGTL+ I/O A69 D8# AGTL+ I/O A70 VSS Power/Other A71 D5# AGTL+ I/O A29 62 Pin Name Table 41. SEP Package Signal Listing by Pin Number A30 VSS Power/Other A31 Reserved Reserved for Pentium II processor A32 D61# AGTL+ I/O A72 D3# AGTL+ I/O D1# AGTL+ I/O A33 D55# AGTL+ I/O A73 A34 VSS Power/Other A74 VSS Power/Other BCLK System Bus Clock Input Reserved Reserved for Pentium II processor A35 D60# AGTL+ I/O A75 A36 D53# AGTL+ I/O A76 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 41. SEP Package Signal Listing by Pin Number Pin No. Signal Buffer Type Pin No. Pin Name Signal Buffer Type A77 Reserved Reserved for Pentium II processor A78 VSS Power/Other A79 Reserved Reserved for Pentium II processor A118 VSS Power/Other A80 Reserved Reserved for Pentium II processor A119 VID2 Power/Other A81 A30# AGTL+

I/O A120 VID1 Power/Other A121 VID4 Power/Other A115 ADS# AGTL+ I/O A116 Reserved Reserved for Future Use A117 Reserved Reserved for Pentium II processor A82 VSS Power/Other A83 A31# AGTL+ I/O B1 EMI Power/Other B2 FLUSH# CMOS Input B3 SMI# CMOS Input INIT# CMOS Input A84 A27# AGTL+ I/O A85 A22# AGTL+ I/O A86 VSS Power/Other B4 A87 A23# AGTL+ I/O B5 VTT Power/Other B6 STPCLK# CMOS Input B7 TCK TAP Input B8 SLP# CMOS Input B9 VTT Power/Other B10 TMS TAP Input B13 VCCCORE Power/Other B14 THERMDP Power/Other A88 Reserved Reserved for Future Use A89 A19# AGTL+ I/O A90 VSS Power/Other A91 A18# AGTL+ I/O A92 A16# AGTL+ I/O A93 A13# AGTL+ I/O A94 VSS Power/Other A95 A14# AGTL+ I/O B15 THERMDN Power/Other B16 LINT1/NMI CMOS Input A96 A10# AGTL+ I/O A97 A5# AGTL+ I/O B17 VCCCORE Power/Other PICCLK APIC Clock Input A98 VSS Power/Other B18 A99 A9# AGTL+ I/O B19 BP2# AGTL+ I/O

B20 Reserved Reserved for Future Use A100 A4# AGTL+ I/O A101 BNR# AGTL+ I/O B21 BSEL Power/Other B22 PICD1 APIC I/O A102 VSS Power/Other A103 BPRI# AGTL+ Input B23 PRDY# AGTL+ Output BPM1# AGTL+ I/O A104 TRDY# AGTL+ Input B24 A105 DEFER# AGTL+ Input B25 VCCCORE Power/Other A106 VSS Power/Other B26 Reserved Reserved for Pentium II processor A107 REQ2# AGTL+ I/O A108 REQ3# AGTL+ I/O B27 Reserved Reserved for Pentium II processor B28 Reserved Reserved for Pentium II processor B29 VCCCORE Power/Other B30 D62# AGTL+ I/O B31 D58# AGTL+ I/O B32 D63# AGTL+ I/O B33 VCCCORE Power/Other A109 HITM# AGTL+ I/O A110 VSS Power/Other A111 DBSY# AGTL+ I/O A112 RS1# AGTL+ Input A113 Reserved Reserved for Future Use A114 Datasheet Pin Name Table 41. SEP Package Signal Listing by Pin Number VSS Power/Other 63 Intel® Celeron™ Processor up to 700 MHz Table 41. SEP Package Signal Listing by Pin Number Pin No. 64

Pin Name Signal Buffer Type Table 41. SEP Package Signal Listing by Pin Number Pin No. Pin Name Signal Buffer Type B34 D56# AGTL+ I/O B74 RESET# AGTL+ Input B35 D50# AGTL+ I/O B75 Reserved Reserved for Future Use B36 D54# AGTL+ I/O B76 Reserved Reserved for Future Use B77 VCCCORE Power/Other B78 Reserved Reserved for Pentium II processor B37 VCCCORE Power/Other B38 D59# AGTL+ I/O B39 D48# AGTL+ I/O B40 D52# AGTL+ I/O B79 Reserved Reserved for Pentium II processor B41 EMI Power/Other B80 A29# AGTL+ I/O B42 D41# AGTL+ I/O B81 EMI Power/Other B43 D47# AGTL+ I/O B82 A26# AGTL+ I/O B44 D44# AGTL+ I/O B83 A24# AGTL+ I/O B45 VCCCORE Power/Other B84 A28# AGTL+ I/O B46 D36# AGTL+ I/O B85 VCCCORE Power/Other B47 D40# AGTL+ I/O B86 A20# AGTL+ I/O B48 D34# AGTL+ I/O B87 A21# AGTL+ I/O B49 VCCCORE Power/Other B88 A25# AGTL+ I/O B50 D38# AGTL+ I/O B89 VCCCORE Power/Other B51 D32# AGTL+ I/O B90

A15# AGTL+ I/O B52 D28# AGTL+ I/O B91 A17# AGTL+ I/O B53 VCCCORE Power/Other B92 A11# AGTL+ I/O B54 D29# AGTL+ I/O B93 VCCCORE Power/Other B55 D26# AGTL+ I/O B56 D25# AGTL+ I/O B57 VCCCORE Power/Other B58 D22# AGTL+ I/O B59 D19# B60 D18# B94 A12# AGTL+ I/O B95 A8# AGTL+ I/O B96 A7# AGTL+ I/O B97 VCCCORE Power/Other AGTL+ I/O B98 A3# AGTL+ I/O AGTL+ I/O B99 A6# AGTL+ I/O B61 EMI Power/Other B100 EMI Power/Other B62 D20# AGTL+ I/O B101 SLOTOCC# Power/Other B63 D17# AGTL+ I/O B102 REQ0# AGTL+ I/O B64 D15# AGTL+ I/O B103 REQ1# AGTL+ I/O B65 VCCCORE Power/Other B66 D12# AGTL+ I/O B67 D7# AGTL+ I/O B68 D6# AGTL+ I/O B69 VCCCORE Power/Other B70 D4# AGTL+ I/O B71 D2# AGTL+ I/O B72 D0# AGTL+ I/O B73 VCCCORE Power/Other B104 REQ4# AGTL+ I/O B105 VCCCORE Power/Other B106 LOCK# AGTL+ I/O B107 DRDY# AGTL+ I/O B108 RS0# AGTL+ Input B109 VCC5 Power/Other B11 TRST# TAP Input

B110 HIT# AGTL+ I/O B111 RS2# AGTL+ Input Datasheet Intel® Celeron™ Processor up to 700 MHz Table 41. SEP Package Signal Listing by Pin Number Pin No. Signal Buffer Type B112 Reserved Reserved for Future Use B113 VCCL2 Power/Other. Reserved for Pentium II processor Reserved Reserved for Pentium II processor B115 Reserved Reserved for Pentium II processor B116 Reserved Reserved for Pentium II processor B114 Datasheet Pin Name Table 41. SEP Package Signal Listing by Pin Number Pin No. Pin Name Signal Buffer Type B117 VCCL2 Power/Other. Reserved for Pentium II processor B118 Reserved Reserved for Pentium II processor B119 VID3 Power/Other B12 Reserved Reserved for Future Use B120 VID0 Power/Other B121 VCCL2 Power/Other. Reserved for Pentium II processor 65 Intel® Celeron™ Processor up to 700 MHz Table 42. SEP Package Signal Listing by Signal Name Pin Name A3# 66 Pin No. B98 Signal Buffer Type Table 42. SEP Package Signal

Listing by Signal Name Pin Name Pin No. Signal Buffer Type AGTL+ I/O BPRI# A103 AGTL+ Input B21 Power/Other A4# A100 AGTL+ I/O BSEL A5# A97 AGTL+ I/O D00# B72 AGTL+ I/O A6# B99 AGTL+ I/O D1# A73 AGTL+ I/O A7# B96 AGTL+ I/O D2# B71 AGTL+ I/O A72 AGTL+ I/O A8# B95 AGTL+ I/O D3# A9# A99 AGTL+ I/O D5# A71 AGTL+ I/O A10# A96 AGTL+ I/O D6# B68 AGTL+ I/O A11# B92 AGTL+ I/O D7# B67 AGTL+ I/O A69 AGTL+ I/O A12# B94 AGTL+ I/O D8# A13# A93 AGTL+ I/O D9# A68 AGTL+ I/O A14# A95 AGTL+ I/O D10# A65 AGTL+ I/O A15# B90 AGTL+ I/O D11# A64 AGTL+ I/O B66 AGTL+ I/O A16# A92 AGTL+ I/O D12# A17# B91 AGTL+ I/O D13# A63 AGTL+ I/O A18# A91 AGTL+ I/O D14# A67 AGTL+ I/O A19# A89 AGTL+ I/O D15# B64 AGTL+ I/O A61 AGTL+ I/O A20# B86 AGTL+ I/O D16# A20M# A5 CMOS Input D17# B63 AGTL+ I/O A21# B87 AGTL+ I/O D18# B60 AGTL+ I/O A22# A85 AGTL+ I/O D19# B59 AGTL+ I/O B62 AGTL+ I/O A23# A87

AGTL+ I/O D20# A24# B83 AGTL+ I/O D21# A60 AGTL+ I/O A25# B88 AGTL+ I/O D22# B58 AGTL+ I/O A26# B82 AGTL+ I/O D23# A59 AGTL+ I/O A57 AGTL+ I/O A27# A84 AGTL+ I/O D24# A28# B84 AGTL+ I/O D25# B56 AGTL+ I/O A29# B80 AGTL+ I/O D26# B55 AGTL+ I/O A30# A81 AGTL+ I/O D27# A56 AGTL+ I/O D28# B52 AGTL+ I/O D29# B54 AGTL+ I/O D30# A55 AGTL+ I/O D31# A53 AGTL+ I/O D32# B51 AGTL+ I/O D33# A51 AGTL+ I/O D34# B48 AGTL+ I/O D35# A52 AGTL+ I/O A31# A83 AGTL+ I/O ADS# A115 AGTL+ I/O BCLK A75 System Bus Clock Input BNR# A101 AGTL+ I/O BP2# B19 AGTL+ I/O BP3# A21 AGTL+ I/O BPM0# A23 AGTL+ I/O BPM1# B24 AGTL+ I/O Datasheet Intel® Celeron™ Processor up to 700 MHz Table 42. SEP Package Signal Listing by Signal Name Pin Name Datasheet Pin No. Signal Buffer Type Table 42. SEP Package Signal Listing by Signal Name Pin Name Pin No. Signal Buffer Type D36# B46 AGTL+ I/O FERR# A7 CMOS Output D37# A49

AGTL+ I/O FLUSH# B2 CMOS Input D38# B50 AGTL+ I/O HIT# B110 AGTL+ I/O D39# A45 AGTL+ I/O HITM# A109 AGTL+ I/O D4# B70 AGTL+ I/O IERR# A4 CMOS Output D40# B47 AGTL+ I/O IGNNE# A8 CMOS Input D41# B42 AGTL+ I/O INIT# B4 CMOS Input D42# A43 AGTL+ I/O LINT0/INTR A17 CMOS Input D43# A48 AGTL+ I/O LINT1/NMI B16 CMOS Input D44# B44 AGTL+ I/O LOCK# B106 AGTL+ I/O D45# A44 AGTL+ I/O PICCLK B18 APIC Clock Input D46# A39 AGTL+ I/O PICD0 A19 APIC I/O D47# B43 AGTL+ I/O PICD1 B22 APIC I/O D48# B39 AGTL+ I/O PRDY# B23 AGTL+ Output D49# A40 AGTL+ I/O PREQ# A20 CMOS Input D50# B35 AGTL+ I/O PWRGOOD A12 CMOS Input D51# A41 AGTL+ I/O REQ0# B102 AGTL+ I/O D52# B40 AGTL+ I/O REQ1# B103 AGTL+ I/O D53# A36 AGTL+ I/O REQ2# A107 AGTL+ I/O D54# B36 AGTL+ I/O REQ3# A108 AGTL+ I/O D55# A33 AGTL+ I/O REQ4# B104 AGTL+ I/O D56# B34 AGTL+ I/O Reserved A16 Reserved for Future Use D57# A37

AGTL+ I/O Reserved A47 Reserved for Future Use D58# B31 AGTL+ I/O Reserved A77 D59# B38 AGTL+ I/O Reserved for Pentium II processor D60# A35 AGTL+ I/O Reserved A88 Reserved for Future Use D61# A32 AGTL+ I/O Reserved A116 Reserved for Future Use Reserved B12 Reserved for Future Use Reserved A113 Reserved for Future Use Reserved B20 Reserved for Future Use Reserved B76 Reserved for Future Use Reserved B112 Reserved for Future Use Reserved B79 Reserved for Pentium II processor Reserved B114 Reserved for Pentium II processor Reserved B115 Reserved for Pentium II processor D62# B30 AGTL+ I/O D63# B32 AGTL+ I/O DBSY# A111 AGTL+ I/O DEFER# A105 AGTL+ Input DRDY# B107 AGTL+ I/O EMI B1 Power/Other EMI B41 Power/Other EMI B61 Power/Other EMI B81 Power/Other EMI B100 Power/Other 67 Intel® Celeron™ Processor up to 700 MHz Table 42. SEP Package Signal Listing by Signal Name Pin Name Reserved 68 Pin No. A117

Signal Buffer Type Reserved for Pentium II processor Table 42. SEP Package Signal Listing by Signal Name Pin Name Pin No. Signal Buffer Type TESTHI A13 CMOS Test Input THERMDN B15 Power/Other THERMDP B14 Power/Other Reserved B116 Reserved for Pentium II processor A15 CMOS Output A24 Reserved for Pentium II processor THERMTRIP# Reserved TMS B10 TAP Input Reserved A76 Reserved for Pentium II processor TRDY# A104 AGTL+ Input Reserved B75 Reserved for Future Use TRST# B11 TAP Input B109 Power/Other A79 Reserved for Pentium II processor VCC5 Reserved VCCCORE B13 Power/Other Reserved A80 Reserved for Pentium II processor VCCCORE B17 Power/Other B25 Power/Other B78 Reserved for Pentium II processor VCCCORE Reserved VCCCORE B29 Power/Other VCCCORE Power/Other B118 Reserved for Pentium II processor B33 Reserved VCCCORE B37 Power/Other VCCCORE B45 Power/Other VCCCORE B49 Power/Other Reserved A25 Reserved for Pentium II

processor Reserved A27 Reserved for Pentium II processor VCCCORE B53 Power/Other Reserved B26 Reserved for Pentium II processor VCCCORE B57 Power/Other B65 Power/Other A28 Reserved for Pentium II processor VCCCORE Reserved VCCCORE B69 Power/Other VCCCORE Power/Other B27 Reserved for Pentium II processor B73 Reserved VCCCORE B77 Power/Other VCCCORE B85 Power/Other VCCCORE B89 Power/Other VCCCORE B93 Power/Other VCCCORE B97 Power/Other VCCCORE B105 Power/Other VCCL2 B113 Power/Other. Reserved for Pentium II processor VCCL2 B117 Power/Other. Reserved for Pentium II processor Reserved A29 Reserved for Pentium II processor Reserved A31 Reserved for Pentium II processor Reserved B28 Reserved for Pentium II processor RESET# B74 AGTL+ Input RS0# B108 AGTL+ Input RS1# A112 AGTL+ Input RS2# B111 AGTL+ Input SLOTOCC# B101 Power/Other VCCL2 B121 Power/Other. Reserved for Pentium II processor SLP# B8 CMOS Input VID0

B120 Power/Other SMI# B3 CMOS Input VID1 A120 Power/Other STPCLK# B6 CMOS Input VID2 A119 Power/Other TCK B7 TAP Input VID3 B119 Power/Other TDI A9 TAP Input VID4 A121 Power/Other TDO A11 TAP Output VSS A114 Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 42. SEP Package Signal Listing by Signal Name Pin Name Datasheet Pin No. Signal Buffer Type Table 42. SEP Package Signal Listing by Signal Name Pin Name Pin No. Signal Buffer Type VSS A118 Power/Other VSS A10 Power/Other VSS A46 Power/Other VSS A14 Power/Other VSS A38 Power/Other VSS A18 Power/Other VSS A42 Power/Other VSS A22 Power/Other VSS A50 Power/Other VSS A26 Power/Other VSS A54 Power/Other VSS A30 Power/Other VSS A58 Power/Other VSS A34 Power/Other VSS A62 Power/Other VSS A98 Power/Other VSS A66 Power/Other VSS A102 Power/Other VSS A70 Power/Other VSS A106 Power/Other VSS A74 Power/Other VSS A110

Power/Other VSS A78 Power/Other VTT A1 Power/Other VSS A82 Power/Other VTT A3 Power/Other VSS A86 Power/Other VTT B5 Power/Other VSS A2 Power/Other VTT B9 Power/Other VSS A6 Power/Other 69 Intel® Celeron™ Processor up to 700 MHz 5.2 PPGA Package This section defines the mechanical specifications and signal definitions for the Intel® Celeron™ processor in the PPGA packages. 5.21 PPGA Package Materials Information Figure 20 and Table 43 are provided to aid in the design of a heat sink and clip. Figure 20. Package Dimensions (PPGA Package) Top View Bottom View Heat Slug D Solder Resist D1 S1 D B1 45° x 0.085 B2 Side View Seating Plane D2 A1 A A2 L e1 70 φB Datasheet Intel® Celeron™ Processor up to 700 MHz Table 43. Package Dimensions (PPGA Package) Millimeters Symbol Min Max A 1.83 2.23 A1 A2 Inches Notes Min Max 0.072 0.088 1.00 2.72 Notes 0.039 3.33 0.107 0.131 B 0.40 0.51 0.016 0.020 D 49.43

49.63 1.946 1.954 D1 45.59 45.85 1.795 1.805 D2 25.15 25.65 0.099 1.010 e1 2.29 2.79 0.090 0.110 L 3.05 3.30 0.120 0.130 N S1 370 1.52 Lead Count 2.54 370 0.060 Lead Count 0.100 Table 44. Information Summary (PPGA Package) Datasheet Package Type Total Pins Pin Array Package Size Plastic Staggered Pin Grid Array (PPGA) 370 37 x 37 1.95" x 195" 4.95 cm x 495 cm 71 Intel® Celeron™ Processor up to 700 MHz 5.22 PPGA Package Signal Listing Figure 21. PPGA Package (Pin Side View) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 AN AN VSS AM VSS AL AK VCC AJ AH EDGCTRL VCC AD A17# AB Rsvd Rsvd V T R P VCC VSS Rsvd VCC RS0# THERMTRIP# SLP# VCC VSS D13# VCC PLL1 VCC D6# VSS D7# D9# VSS VSS G F D B VCC D33# 1 72 2 VCC 3 4 5 VCC D34# VSS 6 7 8 9 D49# VSS D44# 11 12 VSS D41# D42# D45# 10 D63# VCC VSS

VCC D37# VCC D27# D39# D36# D43# D28# Rsvd D38# VCC VSS D29# D22# VSS D31# VCC D35# A D32# VCC 13 VCC D59# 14 15 D55# 16 17 18 VSS 19 VCC 21 22 VCC D62# VCC D58# D46# 20 VSS Rsvd VSS D54# D57# D48# VCC VCOREDET VCC VCC VSS D47# VSS VSS VSS D52# D40# D51# VREF1 D56# VCC D53# D60# 23 24 25 VSS VSS 27 VCC 29 VCC Rsvd Rsvd 28 VREF0 30 VSS Rsvd VSS VCC Rsvd 31 32 33 VSS VCC H F D C Rsvd B A VSS PRDY# 34 35 K E BP3# BPM0# CPUPRES# VCC Rsvd M G Rsvd BPM1# P J PREQ# Rsvd VCC VSS Rsvd Rsvd D61# 26 VCC Rsvd VCC VSS D50# VSS VSS Rsvd VSS VSS R L LINT1 PICD0 BP2# VCC VSS VSS C VCC D19# LINT0 VCC T N Rsvd Rsvd PICCLK VSS D25# D26# VCC D24# Rsvd PICD1 V Q VSS VSS X S Rsvd Rsvd Rsvd VCC D16# VCC E VSS D23# D21# VCC Rsvd VCC VCC Rsvd D3# VREF2 VSS Z U VSS Rsvd Rsvd VCC D30# Rsvd AA W BCLK VCC VCC Rsvd D11# VCC J H VSS PLL2 VCC VSS

VSS Rsvd AB Y VCC VCC VREF4 VCC V2.5 VSS VREF3 VCMOS VSS AD AC Rsvd Rsvd VSS Rsvd VSS D20# V1.5 VCC AF AE FLUSH# FERR# VSS M K VSS AH AG VSS IERR# Rsvd D18# L VCC VCC AK AJ VID3 STPCLK# IGNNE# VSS A18# VSS VSS VCC AM AL VID2 SMI# BSEL# VCC D14# VID1 VID0 VCC TMS VSS VSS D10# D2# RS1# PWRGD RS2# VCC TDO VSS VCC A23# D17# VCC Rsvd Rsvd VSS TDI DBSY# THRMDN THRMDP TCK VSS D1# D5# D12# N REQ1# REQ2# VREF7 VCC VSS TRST# VCC D15# Rsvd BNR# VSS VCC ADS# VSS VCC Q A4# REQ0# LOCK# VCC HIT# BR0# VREF5 Rsvd D8# Rsvd VSS VSS VCC HITM# DRDY# A20M# RESET# Rsvd D4# S A8# A5# A14# VCC VSS Rsvd REQ3# TRDY# VCC A26# VSS U VREF6 VSS VCC VSS REQ4# Rsvd A25# A29# D0# A11# VCC VCC A7# Rsvd Rsvd INIT# A24# Rsvd W VSS Rsvd BPRI# DEFER# VSS A30# VSS Y X A20# A27# VCC Rsvd VCC A31# VCC AA Z Rsvd VSS A3# Rsvd VSS A22# AC VSS A9# VSS A10# A19# Rsvd VCC

VCC Rsvd A6# A13# A28# VSS VSS AE VSS A15# VSS A21# AG AF VCC VSS VSS A16# A12# 36 37 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 45. PPGA Package Signal Listing by Pin Number Pin No. Datasheet Pin Name Signal Buffer Type A3 D29# AGTL+ I/O A5 D28# AGTL+ I/O A7 D43# AGTL+ I/O A9 D37# AGTL+ I/O A11 D44# AGTL+ I/O A13 D51# AGTL+ I/O A15 D47# AGTL+ I/O A17 D48# AGTL+ I/O A19 D57# AGTL+ I/O A21 D46# AGTL+ I/O A23 D53# AGTL+ I/O A25 D60# AGTL+ I/O A27 D61# AGTL+ I/O A29 Reserved Reserved for Future Use A31 Reserved Reserved for Future Use A33 Reserved Reserved for Future Use A35 PRDY# AGTL+ Output A37 VSS Power/Other AA1 A27# AGTL+ I/O AA3 A30# AGTL+ I/O AA5 VCCCORE Power/Other AA33 Reserved Reserved for Future Use AA35 Reserved Reserved for Future Use AA37 VCCCORE Power/Other AB2 VCCCORE Power/Other AB4 A24# AGTL+ I/O AB6 A23# AGTL+ I/O Table 45. PPGA Package Signal

Listing by Pin Number Pin No. Pin Name Signal Buffer Type AD4 A31# AGTL+ I/O AD6 VREF5 Power/Other AD32 VCCCORE Power/Other AD34 VSS Power/Other AD36 VCC1.5 Power/Other AE1 A17# AGTL+ I/O AE3 A22# AGTL+ I/O AE5 VCCCORE Power/Other AE33 A20M# CMOS Input AE35 IERR# CMOS Output AE37 FLUSH# CMOS Input AF2 VCCCORE Power/Other AF4 Reserved Reserved for Future Use AF6 A25# AGTL+ I/O AF32 VSS Power/Other AF34 VCCCORE Power/Other AF36 VSS Power/Other AG1 EDGCTRL Power/Other AG3 A19# AGTL+ I/O AG5 VSS Power/Other AG33 INIT# CMOS Input AG35 STPCLK# CMOS Input AG37 IGNNE# CMOS Input AH2 VSS Power/Other AH4 Reserved Reserved for Future Use AH6 A10# AGTL+ I/O AH8 A5# AGTL+ I/O AH10 A8# AGTL+ I/O AH12 A4# AGTL+ I/O AH14 BNR# AGTL+ I/O AB32 VSS Power/Other AB34 VCCCORE Power/Other AB36 VCCCMOS Power/Other AC1 Reserved Reserved for Future Use AH16 REQ1# AGTL+ I/O REQ2# AGTL+ I/O AC3 A20#

AGTL+ I/O AH18 AC5 VSS Power/Other AH20 Reserved Reserved for Future Use AC33 VSS Power/Other AH22 RS1# AGTL+ Input AC35 FERR# CMOS Output AH24 VCCCORE Power/Other AH26 RS0# AGTL+ Input AH28 THERMTRIP# CMOS Output AH30 SLP# CMOS Input AC37 Reserved Reserved for Future Use AD2 VSS Power/Other 73 Intel® Celeron™ Processor up to 700 MHz Table 45. PPGA Package Signal Listing by Pin Number Pin No. 74 Pin Name Signal Buffer Type Table 45. PPGA Package Signal Listing by Pin Number Pin No. Pin Name Signal Buffer Type AH32 VCCCORE Power/Other AK34 VCCCORE Power/Other AH34 VSS Power/Other AK36 VSS Power/Other AH36 VCCCORE Power/Other AL01 VSS Power/Other AJ01 A21# AGTL+ I/O AL03 VSS Power/Other AJ03 VSS Power/Other AL05 A15# AGTL+ I/O AJ05 VCCCORE Power/Other AL07 A13# AGTL+ I/O AJ07 VSS Power/Other AL09 A9# AGTL+ I/O AJ09 VCCCORE Power/Other AL11 Reserved Reserved for Future Use AJ11 VSS

Power/Other AL13 Reserved Reserved for Future Use AJ13 VCCCORE Power/Other AL15 A7# AGTL+ I/O AJ15 VSS Power/Other AL17 REQ4# AGTL+ I/O AJ17 VCCCORE Power/Other AL19 REQ3# AGTL+ I/O AJ19 VSS Power/Other AL21 Reserved Reserved for Future Use AJ21 VCCCORE Power/Other AL23 HITM# AGTL+ I/O AJ23 VSS Power/Other AL25 HIT# AGTL+ I/O AJ25 VCCCORE Power/Other AL27 DBSY# AGTL+ I/O AJ27 VSS Power/Other AL29 THERMDN Power/Other AJ29 VCCCORE Power/Other AL31 THERMDP Power/Other AJ31 VSS Power/Other AL33 TCK TAP Input AJ33 BSEL Power/Other AL35 VID0 Voltage Identification AJ35 SMI# CMOS Input AL37 VID2 Voltage Identification AJ37 VID3 Power/Other AM04 VCCCORE Power/Other AK02 VCCCORE Power/Other AM06 VSS Power/Other AK04 VSS Power/Other AM08 VCCCORE Power/Other AK06 A28# AGTL+ I/O AM10 VSS Power/Other AK08 A3# AGTL+ I/O AM12 VCCCORE Power/Other AK10 A11# AGTL+ I/O AM14 VSS Power/Other AK12

VREF6 Power/Other AM16 VCCCORE Power/Other AK14 A14# AGTL+ I/O AM18 VSS Power/Other AK16 Reserved Reserved for Future Use AM2 VSS Power/Other AK18 REQ0# AGTL+ I/O AM20 VCCCORE Power/Other AK20 LOCK# AGTL+ I/O AM22 VSS Power/Other AK22 VREF7 Power/Other AM24 VCCCORE Power/Other AK24 Reserved Reserved for Future Use AM26 VSS Power/Other AK26 PWRGOOD CMOS Input AM28 VCCCORE Power/Other AK28 RS2# AGTL+ Input AM30 VSS Power/Other AK30 Reserved Reserved for Future Use AM32 VCCCORE Power/Other AK32 TMS TAP Input AM34 VSS Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 45. PPGA Package Signal Listing by Pin Number Pin No. Datasheet Pin Name Signal Buffer Type Table 45. PPGA Package Signal Listing by Pin Number Pin No. Pin Name Signal Buffer Type AM36 VID1 Voltage Identification C3 VCCCORE Power/Other AN3 VSS Power/Other C5 D31# AGTL+ I/O AN5 A12# AGTL+ I/O C7 D34# AGTL+ I/O

AN7 A16# AGTL+ I/O C9 D36# AGTL+ I/O AN9 A6# AGTL+ I/O C11 D45# AGTL+ I/O AN11 Reserved Reserved for Future Use C13 D49# AGTL+ I/O AN13 Reserved Reserved for Future Use C15 D40# AGTL+ I/O AN15 Reserved Reserved for Future Use C17 D59# AGTL+ I/O AN17 BPRI# AGTL+ Input C19 D55# AGTL+ I/O AN19 DEFER# AGTL+ Input C21 D54# AGTL+ I/O AN21 Reserved Reserved for Future Use C23 D58# AGTL+ I/O AN23 Reserved Reserved for Future Use C25 D50# AGTL+ I/O AN25 TRDY# AGTL+ Input C27 D56# AGTL+ I/O AN27 DRDY# AGTL+ I/O C29 Reserved Reserved for Future Use AN29 BR0# AGTL+ I/O C31 Reserved Reserved for Future Use AN31 ADS# AGTL+ I/O C33 Reserved Reserved for Future Use AN33 TRST# TAP Input C35 BPM0# AGTL+ I/O AN35 TDI TAP Input C37 CPUPRES# Power/Other AN37 TDO TAP Output D2 VSS Power/Other B2 D35# AGTL+ I/O D4 VSS Power/Other B4 VSS Power/Other D6 VCCCORE Power/Other B6 VCCCORE Power/Other D8

D38# AGTL+ I/O B8 VSS Power/Other D10 D39# AGTL+ I/O B10 VCCCORE Power/Other D12 D42# AGTL+ I/O B12 VSS Power/Other D14 D41# AGTL+ I/O B14 VCCCORE Power/Other D16 D52# AGTL+ I/O B16 VSS Power/Other D18 VSS Power/Other B18 VCCCORE Power/Other D20 VCCCORE Power/Other B20 VSS Power/Other D22 VSS Power/Other B22 VCCCORE Power/Other D24 VCCCORE Power/Other B24 VSS Power/Other D26 VSS Power/Other B26 VCCCORE Power/Other D28 VCCCORE Power/Other B28 VSS Power/Other D30 VSS Power/Other B30 VCCCORE Power/Other D32 VCCCORE Power/Other B32 VSS Power/Other D34 VSS Power/Other B34 VCCCORE Power/Other D36 VCCCORE Power/Other B36 Reserved Reserved for Future Use E1 D26# AGTL+ I/O C1 D33# AGTL+ I/O E3 D25# AGTL+ I/O 75 Intel® Celeron™ Processor up to 700 MHz Table 45. PPGA Package Signal Listing by Pin Number Pin No. 76 Pin Name Signal Buffer Type Table 45. PPGA Package Signal Listing by Pin

Number Pin No. Pin Name Signal Buffer Type E5 VCCCORE Power/Other G33 BP2# AGTL+ I/O E7 VSS Power/Other G35 Reserved Reserved for Future Use E9 VCCCORE Power/Other G37 Reserved Reserved for Future Use E11 VSS Power/Other H2 VSS Power/Other E13 VCCCORE Power/Other H4 D16# AGTL+ I/O E15 VSS Power/Other H6 D19# AGTL+ I/O E17 VCCCORE Power/Other H32 VCCCORE Power/Other E19 VSS Power/Other H34 VSS Power/Other E21 VCOREDET Power/Other H36 VCCCORE Power/Other E23 Reserved Reserved for Future Use J1 D7# AGTL+ I/O E25 D62# Power/Other J3 D30# AGTL+ I/O E27 Reserved Reserved for Future Use J5 VCCCORE Power/Other E29 Reserved Reserved for Future Use J33 PICCLK APIC Clock Input E31 Reserved Reserved for Future Use J35 PICD0 APIC I/O E33 VREF0 Power/Other J37 PREQ# CMOS Input E35 BPM1# AGTL+ I/O K2 VCCCORE Power/Other E37 BP3# AGTL+ I/O K4 VREF2 Power/Other F2 VCCCORE Power/Other K6 D24#

AGTL+ I/O F4 VCCCORE Power/Other K32 VCCCORE Power/Other F6 D32# AGTL+ I/O K34 VCCCORE Power/Other F8 D22# AGTL+ I/O K36 VSS Power/Other F10 Reserved Reserved for Future Use L1 D13# AGTL+ I/O F12 D27# AGTL+ I/O L3 D20# AGTL+ I/O F14 VCCCORE Power/Other L5 VSS Power/Other F16 D63# AGTL+ I/O L33 Reserved Reserved for Future Use F18 VREF1 Power/Other L35 PICD1 APIC I/O F20 VSS Power/Other L37 LINT1/NMI CMOS Input F22 VCCCORE Power/Other M2 VSS Power/Other F24 VSS Power/Other M4 D11# AGTL+ I/O F26 VCCCORE Power/Other M6 D3# AGTL+ I/O F28 VSS Power/Other M32 VCCCORE Power/Other F30 VCCCORE Power/Other M34 VSS Power/Other F32 VSS Power/Other M36 LINT0/INTR CMOS Input F34 VCCCORE Power/Other N1 D2# AGTL+ I/O F36 VSS Power/Other N3 D14# AGTL+ I/O G1 D21# AGTL+ I/O N5 VCCCORE Power/Other G3 D23# AGTL+ I/O N33 Reserved Reserved for Future Use G5 VSS Power/Other N35 Reserved

Reserved for Future Use Datasheet Intel® Celeron™ Processor up to 700 MHz Table 45. PPGA Package Signal Listing by Pin Number Pin No. Datasheet Pin Name Signal Buffer Type Table 45. PPGA Package Signal Listing by Pin Number Pin No. Pin Name Signal Buffer Type N37 Reserved Reserved for Future Use U5 VSS Power/Other P2 VCCCORE Power/Other U33 PLL2 Power/Other P4 D18# AGTL+ I/O U35 Reserved Reserved for Future Use P6 D9# AGTL+ I/O U37 Reserved Reserved for Future Use P32 VSS Power/Other V2 VSS Power/Other P34 VCCCORE Power/Other V4 Reserved Reserved for Future Use P36 VSS Power/Other V6 VREF4 Power/Other Q1 D12# AGTL+ I/O V32 VCCCORE Power/Other Q3 D10# AGTL+ I/O V34 VSS Power/Other Q5 VSS Power/Other V36 VCCCORE Power/Other Q33 Reserved Reserved for Future Use W1 D0# AGTL+ I/O Q35 Reserved Reserved for Future Use W3 Reserved Reserved for Future Use Q37 Reserved Reserved for Future Use W5 VCCCORE

Power/Other R2 Reserved Reserved for Future Use W33 PLL1 Power/Other R4 D17# AGTL+ I/O W35 Reserved Reserved for Future Use R6 VREF3 Power/Other W37 BCLK System Bus Clock Input R32 VCCCORE Power/Other X2 Reserved Reserved for Future Use R34 VSS Power/Other X4 RESET# AGTL+ Input R36 VCCCORE Power/Other X6 Reserved Reserved for Future Use S1 D8# AGTL+ I/O X32 VSS Power/Other S3 D5# AGTL+ I/O X34 VCCCORE Power/Other S5 VCCCORE Power/Other X36 VSS Power/Other S33 Reserved Reserved for Future Use Y1 Reserved Reserved for Future Use S35 Reserved Reserved for Future Use Y3 A26# AGTL+ I/O S37 Reserved Reserved for Future Use Y5 VSS Power/Other T2 VCCCORE Power/Other Y33 VSS Power/Other T4 D1# AGTL+ I/O Y35 VCCCORE Power/Other T6 D6# AGTL+ I/O Y37 VSS Power/Other T32 VSS Power/Other Z2 VSS Power/Other T34 VCCCORE Power/Other Z4 A29# AGTL+ I/O T36 VSS Power/Other Z6 A18# AGTL+ I/O U1 D4#

AGTL+ I/O Z32 VCCCORE Power/Other U3 D15# AGTL+ I/O Z34 VSS Power/Other Z36 VCC2.5 Power/Other 77 Intel® Celeron™ Processor up to 700 MHz Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name 78 Pin No. Signal Buffer Type Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Pin No. Signal Buffer Type A3# AK8 AGTL+ I/O CPUPRES# C37 Power/Other A4# AH12 AGTL+ I/O D0# W1 AGTL+ I/O T4 AGTL+ I/O A5# AH8 AGTL+ I/O D1# A6# AN9 AGTL+ I/O D2# N1 AGTL+ I/O M6 AGTL+ I/O A7# AL15 AGTL+ I/O D3# A8# AH10 AGTL+ I/O D4# U1 AGTL+ I/O S3 AGTL+ I/O A9# AL9 AGTL+ I/O D5# A10# AH6 AGTL+ I/O D6# T6 AGTL+ I/O J1 AGTL+ I/O A11# AK10 AGTL+ I/O D7# A12# AN5 AGTL+ I/O D8# S1 AGTL+ I/O P6 AGTL+ I/O A13# AL7 AGTL+ I/O D9# A14# AK14 AGTL+ I/O D10# Q3 AGTL+ I/O M4 AGTL+ I/O A15# AL5 AGTL+ I/O D11# A16# AN7 AGTL+ I/O D12# Q1 AGTL+ I/O L1 AGTL+ I/O A17# AE1 AGTL+ I/O

D13# A18# Z6 AGTL+ I/O D14# N3 AGTL+ I/O U3 AGTL+ I/O A19# AG3 AGTL+ I/O D15# A20# AC3 AGTL+ I/O D16# H4 AGTL+ I/O R4 AGTL+ I/O A21# AJ1 AGTL+ I/O D17# A22# AE3 AGTL+ I/O D18# P4 AGTL+ I/O H6 AGTL+ I/O A23# AB6 AGTL+ I/O D19# A24# AB4 AGTL+ I/O D20# L3 AGTL+ I/O G1 AGTL+ I/O A25# AF6 AGTL+ I/O D21# A26# Y3 AGTL+ I/O D22# F8 AGTL+ I/O G3 AGTL+ I/O A27# AA1 AGTL+ I/O D23# A28# AK6 AGTL+ I/O D24# K6 AGTL+ I/O E3 AGTL+ I/O A29# Z4 AGTL+ I/O D25# A30# AA3 AGTL+ I/O D26# E1 AGTL+ I/O F12 AGTL+ I/O A31# AD4 AGTL+ I/O D27# A20M# AE33 CMOS Input D28# A5 AGTL+ I/O A3 AGTL+ I/O ADS# AN31 AGTL+ I/O D29# BCLK W37 System Bus Clock Input D30# J3 AGTL+ I/O C5 AGTL+ I/O BNR# AH14 AGTL+ I/O D31# BP2# G33 AGTL+ I/O D32# F6 AGTL+ I/O C1 AGTL+ I/O BP3# E37 AGTL+ I/O D33# BPM0# C35 AGTL+ I/O D34# C7 AGTL+ I/O B2 AGTL+ I/O BPM1# E35 AGTL+ I/O D35# BPRI# AN17 AGTL+ Input D36#

C9 AGTL+ I/O A9 AGTL+ I/O D8 AGTL+ I/O BR0# AN29 AGTL+ I/O D37# BSEL AJ33 Power/Other D38# Datasheet Intel® Celeron™ Processor up to 700 MHz Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Datasheet Pin No. Signal Buffer Type Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Pin No. Signal Buffer Type D39# D10 AGTL+ I/O PICD0 J35 APIC I/O D40# C15 AGTL+ I/O PICD1 L35 APIC I/O D41# D14 AGTL+ I/O PLL1 W33 Power/Other D42# D12 AGTL+ I/O PLL2 U33 Power/Other D43# A7 AGTL+ I/O PRDY# A35 AGTL+ Output D44# A11 AGTL+ I/O PREQ# J37 CMOS Input D45# C11 AGTL+ I/O PWRGOOD AK26 CMOS Input D46# A21 AGTL+ I/O REQ0# AK18 AGTL+ I/O D47# A15 AGTL+ I/O REQ1# AH16 AGTL+ I/O D48# A17 AGTL+ I/O REQ2# AH18 AGTL+ I/O D49# C13 AGTL+ I/O REQ3# AL19 AGTL+ I/O D50# C25 AGTL+ I/O REQ4# AL17 AGTL+ I/O D51# A13 AGTL+ I/O Reserved AC1 Reserved for Future Use D52# D16

AGTL+ I/O Reserved AC37 Reserved for Future Use D53# A23 AGTL+ I/O Reserved AF4 Reserved for Future Use D54# C21 AGTL+ I/O Reserved AK16 Reserved for Future Use D55# C19 AGTL+ I/O Reserved AK24 Reserved for Future Use D56# C27 AGTL+ I/O Reserved AK30 Reserved for Future Use D57# A19 AGTL+ I/O Reserved AL11 Reserved for Future Use D58# C23 AGTL+ I/O Reserved AL13 Reserved for Future Use D59# C17 AGTL+ I/O Reserved AL21 Reserved for Future Use D60# A25 AGTL+ I/O Reserved AN11 Reserved for Future Use D61# A27 AGTL+ I/O Reserved AN13 Reserved for Future Use D62# E25 AGTL+ I/O Reserved AN15 Reserved for Future Use D63# F16 AGTL+ I/O Reserved AN21 Reserved for Future Use DBSY# AL27 AGTL+ I/O Reserved AN23 Reserved for Future Use DEFER# AN19 AGTL+ Input Reserved B36 Reserved for Future Use DRDY# AN27 AGTL+ I/O Reserved C29 Reserved for Future Use EDGCTRL AG1 Power/Other Reserved C31 Reserved for

Future Use FERR# AC35 CMOS Output Reserved C33 Reserved for Future Use FLUSH# AE37 CMOS Input Reserved E23 Reserved for Future Use HIT# AL25 AGTL+ I/O Reserved E29 Reserved for Future Use HITM# AL23 AGTL+ I/O Reserved E31 Reserved for Future Use IERR# AE35 CMOS Output Reserved F10 Reserved for Future Use IGNNE# AG37 CMOS Input Reserved G35 Reserved for Future Use INIT# AG33 CMOS Input Reserved G37 Reserved for Future Use LINT0/INTR M36 CMOS Input Reserved L33 Reserved for Future Use LINT1/NMI L37 CMOS Input Reserved N33 Reserved for Future Use LOCK# AK20 AGTL+ I/O Reserved N35 Reserved for Future Use PICCLK J33 APIC Clock Input Reserved N37 Reserved for Future Use 79 Intel® Celeron™ Processor up to 700 MHz Table 46. PPGA Package Signal Listing in Order by Signal Name Pin No. Signal Buffer Type Reserved Q33 Reserved for Future Use VCC2.5 Z36 Power/Other Reserved Q35 Reserved for Future Use VCCCMOS

AB36 Power/Other Reserved Q37 Reserved for Future Use VCCCORE AJ25 Power/Other Reserved S33 Reserved for Future Use VCCCORE AJ29 Power/Other Reserved S37 Reserved for Future Use VCCCORE AJ5 Power/Other Reserved U35 Reserved for Future Use VCCCORE AJ9 Power/Other Reserved U37 Reserved for Future Use VCCCORE AK2 Power/Other Reserved V4 Reserved for Future Use VCCCORE AK34 Power/Other Reserved W3 Reserved for Future Use VCCCORE AM12 Power/Other Reserved W35 Reserved for Future Use VCCCORE AM16 Power/Other Reserved AH20 Reserved for Future Use VCCCORE AM20 Power/Other Reserved AH4 Reserved for Future Use VCCCORE AM24 Power/Other Reserved A29 Reserved for Future Use VCCCORE AM28 Power/Other Reserved A31 Reserved for Future Use VCCCORE AM32 Power/Other Reserved A33 Reserved for Future Use VCCCORE AM4 Power/Other Reserved AA33 Reserved for Future Use VCCCORE AM8 Power/Other Reserved AA35 Reserved for

Future Use VCCCORE B10 Power/Other Reserved X6 Reserved for Future Use VCCCORE B14 Power/Other Reserved Y1 Reserved for Future Use VCCCORE B18 Power/Other Reserved E27 Reserved for Future Use VCCCORE B22 Power/Other Reserved R2 Reserved for Future Use VCCCORE B26 Power/Other Reserved S35 Reserved for Future Use VCCCORE B30 Power/Other Reserved X2 Reserved for Future Use VCCCORE B34 Power/Other Pin Name 80 Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Pin No. Signal Buffer Type RESET# X4 AGTL+ Input VCCCORE B6 Power/Other RS0# AH26 AGTL+ Input VCCCORE C3 Power/Other RS1# AH22 AGTL+ Input VCCCORE D20 Power/Other RS2# AK28 AGTL+ Input VCCCORE D24 Power/Other SLP# AH30 CMOS Input VCCCORE D28 Power/Other SMI# AJ35 CMOS Input VCCCORE D32 Power/Other STPCLK# AG35 CMOS Input VCCCORE D36 Power/Other TCK AL33 TAP Input VCCCORE D6 Power/Other TDI AN35 TAP Input VCCCORE E13

Power/Other TDO AN37 TAP Output VCCCORE E17 Power/Other THERMDN AL29 Power/Other VCCCORE E5 Power/Other THERMDP AL31 Power/Other VCCCORE E9 Power/Other THERMTRIP# AH28 CMOS Output VCCCORE F14 Power/Other TMS AK32 TAP Input VCCCORE F2 Power/Other TRDY# AN25 AGTL+ Input VCCCORE F22 Power/Other TRST# AN33 TAP Input VCCCORE F26 Power/Other VCC1.5 AD36 Power/Other VCCCORE AA37 Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Datasheet Pin No. VCCCORE AA5 VCCCORE VCCCORE Signal Buffer Type Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Pin No. Signal Buffer Type Power/Other VID2 AL37 Power/Other AB2 Power/Other VID3 AJ37 Power/Other AB34 Power/Other VREF0 E33 Power/Other VCCCORE AD32 Power/Other VREF1 F18 Power/Other VCCCORE AE5 Power/Other VREF2 K4 Power/Other VCCCORE AF2 Power/Other VREF3

R6 Power/Other VCCCORE AF34 Power/Other VREF4 V6 Power/Other VCCCORE AH24 Power/Other VREF5 AD6 Power/Other VCCCORE AH32 Power/Other VREF6 AK12 Power/Other VCCCORE AH36 Power/Other VREF7 AK22 Power/Other VCCCORE AJ13 Power/Other VSS B16 Power/Other VCCCORE AJ17 Power/Other VSS B20 Power/Other VCCCORE AJ21 Power/Other VSS B24 Power/Other VCCCORE F30 Power/Other VSS B28 Power/Other VCCCORE F34 Power/Other VSS B32 Power/Other VCCCORE F4 Power/Other VSS B4 Power/Other VCCCORE H32 Power/Other VSS B8 Power/Other VCCCORE H36 Power/Other VSS D18 Power/Other VCCCORE J5 Power/Other VSS D2 Power/Other VCCCORE K2 Power/Other VSS D22 Power/Other VCCCORE K32 Power/Other VSS D26 Power/Other VCCCORE K34 Power/Other VSS D30 Power/Other VCCCORE M32 Power/Other VSS D34 Power/Other VCCCORE N5 Power/Other VSS D4 Power/Other VCCCORE P2 Power/Other VSS E11 Power/Other VCCCORE P34 Power/Other

VSS E15 Power/Other VCCCORE R32 Power/Other VSS E19 Power/Other VCCCORE R36 Power/Other VSS E7 Power/Other VCCCORE S5 Power/Other VSS F20 Power/Other VCCCORE T2 Power/Other VSS F24 Power/Other VCCCORE T34 Power/Other VSS F28 Power/Other VCCCORE V32 Power/Other VSS F32 Power/Other VCCCORE V36 Power/Other VSS F36 Power/Other VCCCORE W5 Power/Other VSS G5 Power/Other VCCCORE X34 Power/Other VSS H2 Power/Other VCCCORE Y35 Power/Other VSS H34 Power/Other VCCCORE Z32 Power/Other VSS K36 Power/Other VCOREDET E21 Power/Other VSS L5 Power/Other VID0 AL35 Power/Other VSS M2 Power/Other VID1 AM36 Power/Other VSS M34 Power/Other 81 Intel® Celeron™ Processor up to 700 MHz Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name 82 Pin No. VSS P32 VSS VSS VSS VSS Signal Buffer Type Table 46. PPGA Package Signal Listing in Order by Signal Name Pin Name Pin No. Signal Buffer Type

Power/Other VSS AJ7 Power/Other P36 Power/Other VSS AK36 Power/Other Q5 Power/Other VSS AK4 Power/Other R34 Power/Other VSS AL1 Power/Other T32 Power/Other VSS AL3 Power/Other VSS T36 Power/Other VSS AM10 Power/Other VSS U5 Power/Other VSS AM14 Power/Other VSS V2 Power/Other VSS AM18 Power/Other VSS A37 Power/Other VSS AM2 Power/Other VSS AB32 Power/Other VSS AM22 Power/Other VSS AC33 Power/Other VSS AM26 Power/Other VSS AC5 Power/Other VSS AM30 Power/Other VSS AD2 Power/Other VSS AM34 Power/Other VSS AD34 Power/Other VSS AM6 Power/Other VSS AF32 Power/Other VSS AN3 Power/Other VSS AF36 Power/Other VSS B12 Power/Other VSS AG5 Power/Other VSS V34 Power/Other VSS AH2 Power/Other VSS X32 Power/Other VSS AH34 Power/Other VSS X36 Power/Other VSS AJ11 Power/Other VSS Y37 Power/Other VSS AJ15 Power/Other VSS Y5 Power/Other VSS AJ19 Power/Other VSS Z2 Power/Other VSS

AJ23 Power/Other VSS Z34 Power/Other VSS AJ27 Power/Other VSS AJ31 Power/Other VSS AJ3 Power/Other VSS Y33 Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz 5.3 FC-PGA Package This section defines the mechanical specifications and signal definitions for the Intel® Celeron™ processor in the FC-PGA package. 5.31 Materials Information Figure 22 with package dimensions is provided to aid in the design of heatsink and clip solutions as well as demonstrate where pin-side capacitors will be located on the processor. Table 47 includes the measurements for these dimensions in both inches and millimeters. Figure 22. Package Dimensions (FC-PGA Package) NOTES: 1. Unless otherwise specified, the following drawings are dimensioned in inches 2. All dimensions provided with tolerances are guaranteed to be met for all normal production product 3. Figures and drawings labeled as “Reference Dimensions” are provided for informational purposes only Reference

dimensions are extracted from the mechanical design database and are nominal dimensions with no tolerance information applied. Reference dimensions are NOT checked as part of the processor manufacturing. Unless noted as such, dimensions in parentheses without tolerances are reference dimensions. 4. Drawing not to scale Datasheet 83 Intel® Celeron™ Processor up to 700 MHz Table 47. Package Dimensions Millimeters Symbol Min Max A1 0.787 A2 Inches Notes Min Max 0.889 0.031 0.035 1.000 1.200 0.039 0.047 B1 11.183 11.285 0.440 0.445 B2 9.225 9.327 0.363 0.368 C1 23.495 max 0.925 max C2 21.590 max 0.850 max D 49.428 49.632 1.946 1.954 D1 45.466 45.947 1.790 1.810 G1 0.000 17.780 1 0.000 0.700 G2 0.000 17.780 1 0.000 0.700 G3 0.000 0.889 1 0.000 0.035 H 2.540 Nominal 0.100 Nominal L 3.048 3.302 0.120 0.130 ϕP 0.431 0.483 0.017 0.019 Pin TP 0.508 Diametric True Position (Pin-to-Pin) Notes 0.020 Diametric

True Position (Pin-to-Pin) NOTES: 1. Capacitors and resistors may be placed on the pin-side of the FC-PGA package in the area defined by G1, G2, and G3. This area is a keepout zone for motherboard designers The bare processor die has mechanical load limits that should not be exceeded during heat sink assembly, mechanical stress testing, or standard drop and shipping conditions. The heatsink attach solution must not induce permanent stress into the processor substrate with the exception of a uniform load to maintain the heatsink to the processor thermal interface. The package dynamic and static loading parameters are listed in Table 48. For Table 48, the following apply: 1. It is not recommended to use any portion of the processor substrate as a mechanical reference or load bearing surface for thermal solutions. 2. Parameters assume uniformly applied loads Table 48. Processor Die Loading Parameters (FC-PGA Package) Dynamic (max)1 Static (max)2 Unit Silicon Die Surface 200 50 lbf

Silicon Die Edge 100 12 lbf Parameter NOTES: 1. This specification applies to a uniform and a non-uniform load 2. This is the maximum static force that can be applied by the heatsink and clip to maintain the heatsink and processor interface 84 Datasheet Intel® Celeron™ Processor up to 700 MHz 5.32 Processor Markings Figure 23 exemplifies the processor top-side markings and it is provided to aid in the identification of an Pentium III processor for the PGA370 socket. Table 47 lists the measurements for the package dimensions. Figure 23. Top Side Processor Markings (PPGA and FC-PGA Packages) Static Mark ink printed at substrate supplier Country of Origin Celeron logo Product Code intel ® i (m) (c) ’99 Celeron™ MALAY RB80526RX566128 FFFFFFFF-0001 SSSSS FPO # - S/N S-spec# Dynamic Laser Mark Swatch proc markings Datasheet 85 Intel® Celeron™ Processor up to 700 MHz 5.4 FC-PGA Signal List Figure 24. Package Dimensions (FC-PGA Package) 1 2 3 4 5

6 7 8 9 10 11 12 13 14 15 16 RSV RSV 17 18 19 20 21 22 23 24 25 26 RSV TRDY 27 28 29 30 31 32 33 34 35 36 TRST TDI 37 AN AN VSS A16 A12 A6 RSV BPRI DEFER RSV DRDY BR0 ADS TDO AM AM RSV AL VCC VSS VSS VSS VCC A15 A13 VSS VCC A9 VSS VSS VCC RSV RSV A7 REQ4 VCC REQ3 VCC VSS RSV HITM VSS HIT VCC DBSY VCC VSS THRMDN THRMDP RS2 RSV VCC BSEL1 VSS VID1 TCK VID0 AL VID2 AK AK VCC VSS A28 A3 VREF6 A11 A14 RSV REQ0 VREF7 LOCK RSV PWRGD TMS VCC VSS AJ AJ A21 VSS VCC VSS VCC VSS VCC VSS VCC VSS VCC VSS VCC VSS BSEL0 SMI VID3 AH AH VSS RSV A10 A5 A8 A4 BNR REQ1 REQ2 RSV RS1 VCC RS0 AF A19 EDGCTRL SLP THERM AG VCC VSS VCC AG TRIP VSS INIT STPCLK IGNNE AF VCC A25 RSV AE A17 VSS VSS AE VCC A22 VCC A20M IERR FLUSH AD AD VSS A31 VCC VREF5 VSS V 1.5 AC AC RSV A20 VSS VSS FERR RSV AB AB A24 VCC A23 VSS A18 VCC VCC V CMOS AA AA Z

A27 A30 RSV VCC VSS A29 RSV VCC Z V 2.5 VSS Y Y RSV A26 RSV VSS VCC VSS X RSV RESET RSV VSS VCC X VSS W W D0 VCC RSV PLL1 RSV BCLK V V VSS RSV VREF4 D4 D15 VCC PIN SIDE VIEW U VSS VCC U PLL2 VSS RSV RSV T T VCC D1 D6 VSS VCC VSS S S D8 D5 VCC RTT CTRL RSV R RSV VREF3 D17 VCC RSV R VCC VSS Q Q D12 VSS D10 RSV RSV RSV P P VCC D18 D9 VSS VCC VSS N N D2 D14 VCC RSV RSV RSV M M D11 VSS D3 VCC VSS LINT0 L L D13 D20 VSS RSV PICD1 LINT1 K K VCC VREF2 D24 VCC VCC VSS J J D7 D30 PICCLK VCC PREQ PICD0 H H VSS D16 VCC D19 VSS VCC G G D21 D23 VSS BP2 RSV RSV F F VCC VCC D32 D22 RSV D27 VCC D63 VREF1 E D25 D26 VCC VSS VCC VSS VCC VSS VCC VSS VSS VCC RSV VSS RSV VCC VSS VCC D38 D39 D42 D41 D52 VSS VCC VSS VCC VSS VSS VCC SLEW CTRL D62 D VSS VSS RSV VCC VSS E RSV VREF0 BPM1 BP3 D VCC VSS VCC VSS VCC C C D33 D31 VCC D34 D36 D45

D49 D40 D59 D55 D54 D58 D50 D56 RSV RSV RSV BPM0 CPUPRES B D35 VCC VSS VCC VSS VSS VCC VCC VSS VSS VCC VSS VCC VSS VCC VSS VCC B RSV A A 1 2 3 4 5 D37 D43 D28 D29 6 7 8 9 10 D44 D51 11 12 13 D47 14 15 D48 16 17 D57 18 19 D46 20 21 22 D53 D60 23 24 25 D61 26 27 RSV 28 29 30 RSV RSV 31 32 33 PRDY 34 35 VSS 36 37 Table 49 and Table 50 provide the processor pin definitions. The signal locations on the PGA370 socket are to be used for signal routing, simulation, and component placement on the baseboard. Figure 24 provides a pin-side view of the Intel® Celeron™ FC-PGA processor pin-out. . 86 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Signal Group Pin Name Pin No. Signal Group A3# AK8 AGTL+ I/O BPRI# AN17 AGTL+ Input A4# AH12 AGTL+ I/O BR0# AN29 AGTL+ I/O A5# AH8 AGTL+ I/O BSEL0 AJ33 CMOS I/O AGTL+ I/O 5

BSEL1 AJ31 Power/Other A6# Datasheet Pin No. Table 49. FC-PGA Signal Listing in Order by Signal Name AN9 A7# AL15 AGTL+ I/O CPUPRES# C37 Power/Other A8# AH10 AGTL+ I/O D0# W1 AGTL+ I/O A9# AL9 AGTL+ I/O D1# T4 AGTL+ I/O A10# AH6 AGTL+ I/O D2# N1 AGTL+ I/O A11# AK10 AGTL+ I/O D3# M6 AGTL+ I/O A12# AN5 AGTL+ I/O D4# U1 AGTL+ I/O A13# AL7 AGTL+ I/O D5# S3 AGTL+ I/O A14# AK14 AGTL+ I/O D6# T6 AGTL+ I/O A15# AL5 AGTL+ I/O D7# J1 AGTL+ I/O A16# AN7 AGTL+ I/O D8# S1 AGTL+ I/O A17# AE1 AGTL+ I/O D9# P6 AGTL+ I/O A18# Z6 AGTL+ I/O D10# Q3 AGTL+ I/O A19# AG3 AGTL+ I/O D11# M4 AGTL+ I/O A20# AC3 AGTL+ I/O D12# Q1 AGTL+ I/O A21# AJ1 AGTL+ I/O D13# L1 AGTL+ I/O A22# AE3 AGTL+ I/O D14# N3 AGTL+ I/O A23# AB6 AGTL+ I/O D15# U3 AGTL+ I/O A24# AB4 AGTL+ I/O D16# H4 AGTL+ I/O A25# AF6 AGTL+ I/O D17# R4 AGTL+ I/O A26# Y3 AGTL+ I/O D18# P4 AGTL+ I/O A27# AA1 AGTL+ I/O D19# H6

AGTL+ I/O A28# AK6 AGTL+ I/O D20# L3 AGTL+ I/O A29# Z4 AGTL+ I/O D21# G1 AGTL+ I/O A30# AA3 AGTL+ I/O D22# F8 AGTL+ I/O A31# AD4 AGTL+ I/O D23# G3 AGTL+ I/O A20M# AE33 CMOS Input D24# K6 AGTL+ I/O ADS# AN31 AGTL+ I/O D25# E3 AGTL+ I/O BCLK W37 System Bus Clock D26# E1 AGTL+ I/O BNR# AH14 AGTL+ I/O D27# F12 AGTL+ I/O BP2# G33 AGTL+ I/O D28# A5 AGTL+ I/O BP3# E37 AGTL+ I/O D29# A3 AGTL+ I/O BPM0# C35 AGTL+ I/O D30# J3 AGTL+ I/O BPM1# E35 AGTL+ I/O D31# C5 AGTL+ I/O 87 Intel® Celeron™ Processor up to 700 MHz Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name 88 Pin No. Signal Group Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Pin No. Signal Group D32# F6 AGTL+ I/O FLUSH# AE37 CMOS Input D33# C1 AGTL+ I/O GND A37 Power/Other D34# C7 AGTL+ I/O GND AB32 Power/Other D35# B2 AGTL+ I/O GND AC5 Power/Other D36# C9 AGTL+ I/O GND AC33 Power/Other

D37# A9 AGTL+ I/O GND AD2 Power/Other D38# D8 AGTL+ I/O GND AD34 Power/Other D39# D10 AGTL+ I/O GND AF32 Power/Other D40# C15 AGTL+ I/O GND AF36 Power/Other D41# D14 AGTL+ I/O GND AG5 Power/Other D42# D12 AGTL+ I/O GND AH2 Power/Other D43# A7 AGTL+ I/O GND AH34 Power/Other D44# A11 AGTL+ I/O GND AJ3 Power/Other D45# C11 AGTL+ I/O GND AJ7 Power/Other D46# A21 AGTL+ I/O GND AJ11 Power/Other D47# A15 AGTL+ I/O GND AJ15 Power/Other D48# A17 AGTL+ I/O GND AJ19 Power/Other D49# C13 AGTL+ I/O GND AJ23 Power/Other D50# C25 AGTL+ I/O GND AJ27 Power/Other D51# A13 AGTL+ I/O GND AK4 Power/Other D52# D16 AGTL+ I/O GND AK36 Power/Other D53# A23 AGTL+ I/O GND AL1 Power/Other D54# C21 AGTL+ I/O GND AL3 Power/Other D55# C19 AGTL+ I/O GND AM6 Power/Other D56# C27 AGTL+ I/O GND AM10 Power/Other D57# A19 AGTL+ I/O GND AM14 Power/Other D58# C23 AGTL+ I/O GND AM18 Power/Other

D59# C17 AGTL+ I/O GND AM22 Power/Other D60# A25 AGTL+ I/O GND AM26 Power/Other D61# A27 AGTL+ I/O GND AM30 Power/Other D62# E25 AGTL+ I/O GND AM34 Power/Other D63# F16 AGTL+ I/O GND AN3 Power/Other DBSY# AL27 AGTL+ I/O GND B4 Power/Other DEFER# AN19 AGTL+ Input GND B8 Power/Other DRDY# AN27 AGTL+ I/O GND B12 Power/Other EDGCTRL 2 AG1 Power/Other GND B16 Power/Other FERR# AC35 CMOS Output GND B20 Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Datasheet Pin No. Signal Group Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Pin No. Signal Group GND B24 Power/Other GND Y5 Power/Other GND B28 Power/Other GND Y37 Power/Other GND B32 Power/Other GND Z2 Power/Other GND D2 Power/Other GND Z34 Power/Other GND D4 Power/Other HIT# AL25 AGTL+ I/O GND D18 Power/Other HITM# AL23 AGTL+ I/O GND D22

Power/Other IERR# AE35 CMOS Output GND D26 Power/Other IGNNE# AG37 CMOS Input GND D30 Power/Other INIT# AG33 CMOS Input GND D34 Power/Other LINT0/INTR M36 CMOS Input GND E7 Power/Other LINT1/NMI L37 CMOS Input GND E11 Power/Other LOCK# AK20 AGTL+ I/O GND E15 Power/Other PICCLK J33 APIC Clock Input GND E19 Power/Other PICD0 J35 APIC I/O GND F20 Power/Other PICD1 L35 APIC I/O GND F24 Power/Other PLL1 W33 Power/Other GND F28 Power/Other PLL2 U33 Power/Other GND F32 Power/Other PRDY# A35 AGTL+ Output GND F36 Power/Other PREQ# J37 CMOS Input GND G5 Power/Other PWRGOOD AK26 CMOS Input GND H2 Power/Other REQ0# AK18 AGTL+ I/O GND H34 Power/Other REQ1# AH16 AGTL+ I/O GND K36 Power/Other REQ2# AH18 AGTL+ I/O GND L5 Power/Other REQ3# AL19 AGTL+ I/O GND M2 Power/Other REQ4# AL17 AGTL+ I/O GND M34 Power/Other Reserved A29 Reserved for future use GND P32 Power/Other Reserved A31

Reserved for future use GND P36 Power/Other Reserved A33 Reserved for future use GND Q5 Power/Other Reserved AC1 Reserved for future use GND R34 Power/Other Reserved AC37 Reserved for future use GND T32 Power/Other Reserved AF4 Reserved for future use GND T36 Power/Other Reserved AH4 Reserved for future use GND U5 Power/Other Reserved AH20 Reserved for future use GND V2 Power/Other Reserved AK16 Reserved for future use GND V34 Power/Other Reserved AK24 Reserved for future use GND X32 Power/Other Reserved AK30 Reserved for future use GND X36 Power/Other Reserved AL11 Reserved for future use 89 Intel® Celeron™ Processor up to 700 MHz Table 49. FC-PGA Signal Listing in Order by Signal Name Pin No. Signal Group Reserved AL13 Reserved for future use Reserved AL21 Reserved Pin No. Signal Group Reserved3 AM2 Reserved for future use Reserved for future use Reserved4 Y33 Reserved for future use AN11 Reserved

for future use RESET# X4 Power/Other Reserved AN13 Reserved for future use RS0# AH26 AGTL+ Input Reserved AN15 Reserved for future use RS1# AH22 AGTL+ Input Reserved AN21 Reserved for future use RS2# AK28 AGTL+ Input Reserved AN23 Reserved for future use RTTCTRL S35 Power/Other Reserved B36 Reserved for future use SLEWCTRL E27 Power/Other Reserved C29 Reserved for future use SLP# AH30 CMOS Input Reserved C31 Reserved for future use SMI# AJ35 CMOS Input Reserved C33 Reserved for future use STPCLK# AG35 CMOS Input Reserved E23 Reserved for future use TCK AL33 TAP Input Reserved E29 Reserved for future use TDI AN35 TAP Input Reserved E31 Reserved for future use TDO AN37 TAP Output Reserved F10 Reserved for future use THERMDN AL29 Power/Other Reserved G35 Reserved for future use THERMDP AL31 Power/Other Reserved G37 Reserved for future use THERMTRIP# AH28 CMOS Output Reserved L33 Reserved for future

use TMS AK32 TAP Input Reserved N33 Reserved for future use TRDY# AN25 AGTL+ Input Reserved N35 Reserved for future use TRST# AN33 TAP Input 1 Pin Name 90 Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Reserved N37 Reserved for future use VCC1.5 AD36 Power/Other Reserved Q33 Reserved for future use Vcc2.5 Z36 Power/Other Reserved Q35 Reserved for future use VCCCMOS AB36 Power/Other Reserved Q37 Reserved for future use VCCCORE AA5 Power/Other Reserved R2 Reserved for future use VCCCORE AA37 Power/Other Reserved S33 Reserved for future use VCCCORE AB2 Power/Other Reserved S37 Reserved for future use VCCCORE AB34 Power/Other Reserved U35 Reserved for future use VCCCORE AD32 Power/Other Reserved U37 Reserved for future use VCCCORE AE5 Power/Other Reserved V4 Reserved for future use VCCCORE AF2 Power/Other Reserved W3 Reserved for future use VCCCORE AF34 Power/Other Reserved W35

Reserved for future use VCCCORE AH24 Power/Other Reserved X6 Reserved for future use VCCCORE AH32 Power/Other Reserved X20 Reserved for future use VCCCORE AH36 Power/Other Reserved Y1 Reserved for future use VCCCORE AJ5 Power/Other Reserved AA33 Reserved for future use VCCCORE AJ9 Power/Other Reserved AA35 Reserved for future use VCCCORE AJ13 Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Datasheet Pin No. Signal Group Table 49. FC-PGA Signal Listing in Order by Signal Name Pin Name Pin No. Signal Group VCCCORE AJ17 Power/Other VCCCORE F26 Power/Other VCCCORE AJ21 Power/Other VCCCORE F30 Power/Other VCCCORE AJ25 Power/Other VCCCORE F34 Power/Other VCCCORE AJ29 Power/Other VCCCORE H32 Power/Other VCCCORE AK2 Power/Other VCCCORE H36 Power/Other VCCCORE AK34 Power/Other VCCCORE J5 Power/Other VCCCORE AM4 Power/Other VCCCORE

K2 Power/Other VCCCORE AM8 Power/Other VCCCORE K32 Power/Other VCCCORE AM12 Power/Other VCCCORE K34 Power/Other VCCCORE AM16 Power/Other VCCCORE M32 Power/Other VCCCORE AM20 Power/Other VCCCORE N5 Power/Other VCCCORE AM24 Power/Other VCCCORE P2 Power/Other VCCCORE AM28 Power/Other VCCCORE P34 Power/Other VCCCORE AM32 Power/Other VCCCORE R32 Power/Other VCCCORE B6 Power/Other VCCCORE R36 Power/Other VCCCORE B10 Power/Other VCCCORE S5 Power/Other VCCCORE B14 Power/Other VCCCORE T2 Power/Other VCCCORE B18 Power/Other VCCCORE T34 Power/Other VCCCORE B22 Power/Other VCCCORE V32 Power/Other VCCCORE B26 Power/Other VCCCORE V36 Power/Other VCCCORE B30 Power/Other VCCCORE W5 Power/Other VCCCORE B34 Power/Other VCCCORE X34 Power/Other VCCCORE C3 Power/Other VCCCORE Y35 Power/Other VCCCORE D6 Power/Other VCCCORE Z32 Power/Other VCCCORE D20 Power/Other VCORE DET E21 Power/Other VCCCORE

D24 Power/Other VID0 AL35 Power/Other VCCCORE D28 Power/Other VID1 AM36 Power/Other VCCCORE D32 Power/Other VID2 AL37 Power/Other VCCCORE D36 Power/Other VID3 AJ37 Power/Other VCCCORE E5 Power/Other VREF0 E33 Power/Other VCCCORE E9 Power/Other VREF1 F18 Power/Other VCCCORE E13 Power/Other VREF2 K4 Power/Other VCCCORE E17 Power/Other VREF3 R6 Power/Other VCCCORE F2 Power/Other VREF4 V6 Power/Other VCCCORE F4 Power/Other VREF5 AD6 Power/Other VCCCORE F14 Power/Other VREF6 AK12 Power/Other VCCCORE F22 Power/Other VREF7 AK22 Power/Other 91 Intel® Celeron™ Processor up to 700 MHz NOTES: 1. VCC15 must be supplied by the same voltage source supplying VTT on the motherboard 2. Previously this pin functioned as the EDGCTRL signal 3. Previously, PGA370 designs defined this pin as a GND For flexible PGA370 designs, it must be left unconnected (N/C). 4. Previously, PGA370 designs defined this pin as a GND 5. Intel®

Celeron™ processor in the FC-PGA package does not make use of this pin 92 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Datasheet Pin Name Signal Group Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Pin Name Signal Group A3 D29# AGTL+ I/O AD4 A31# AGTL+ I/O A5 D28# AGTL+ I/O AD6 VREF5 Power/Other A7 D43# AGTL+ I/O AD32 VCCCORE Power/Other A9 D37# AGTL+ I/O AD34 GND Power/Other 1 A11 D44# AGTL+ I/O AD36 VCC1.5 A13 D51# AGTL+ I/O AE1 A17# AGTL+ I/O A15 D47# AGTL+ I/O AE3 A22# AGTL+ I/O A17 D48# AGTL+ I/O AE5 VCCCORE Power/Other A19 D57# AGTL+ I/O AE33 A20M# CMOS Input A21 D46# AGTL+ I/O AE35 IERR# CMOS Output A23 D53# AGTL+ I/O AE37 FLUSH# CMOS Input A25 D60# AGTL+ I/O AF2 VCCCORE Power/Other A27 D61# AGTL+ I/O AF4 Reserved Reserved for future use A29 Reserved Reserved for future use AF6 A25# AGTL+ I/O A31

Reserved Reserved for future use AF32 GND Power/Other A33 Reserved Reserved for future use AF34 VCCCORE Power/Other Power/Other A35 PRDY# AGTL+ Output AF36 GND Power/Other A37 GND Power/Other AG1 EDGCTRL 2 Power/Other AA1 A27# AGTL+ I/O AG3 A19# AGTL+ I/O AA3 A30# AGTL+ I/O AG5 GND Power/Other AA5 VCCCORE Power/Other AG33 INIT# CMOS Input AA33 Reserved Reserved for future use AG35 STPCLK# CMOS Input AA35 Reserved Reserved for future use AG37 IGNNE# CMOS Input AA37 VCCCORE Power/Other AH2 GND Power/Other AB2 VCCCORE Power/Other AH4 Reserved Reserved for future use AB4 A24# AGTL+ I/O AH6 A10# AGTL+ I/O AB6 A23# AGTL+ I/O AH8 A5# AGTL+ I/O AB32 GND Power/Other AH10 A8# AGTL+ I/O AB34 VCCCORE Power/Other AH12 A4# AGTL+ I/O AB36 VCCCMOS Power/Other AH14 BNR# AGTL+ I/O AC1 Reserved Reserved for future use AH16 REQ1# AGTL+ I/O AC3 A20# AGTL+ I/O AH18 REQ2# AGTL+ I/O AC5 GND

Power/Other AH20 Reserved Reserved for future use AC33 GND Power/Other AH22 RS1# AGTL+ Input AC35 FERR# CMOS Output AH24 VCCCORE Power/Other AC37 Reserved Reserved for future use AH26 RS0# AGTL+ Input AD2 GND Power/Other AH28 THERMTRIP# CMOS Output 93 Intel® Celeron™ Processor up to 700 MHz Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. 94 Pin Name Signal Group Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Pin Name Signal Group AH30 SLP# CMOS Input AK30 Reserved Reserved for future use AH32 VCCCORE Power/Other AK32 TMS TAP Input AH34 GND Power/Other AK34 VCCCORE Power/Other AH36 VCCCORE Power/Other AK36 GND Power/Other AJ1 A21# AGTL+ I/O AL1 GND Power/Other AJ3 GND Power/Other AL3 GND Power/Other AJ5 VCCCORE Power/Other AL5 A15# AGTL+ I/O AJ7 GND Power/Other AL7 A13# AGTL+ I/O AJ9 VCCCORE Power/Other AL9 A9# AGTL+ I/O AJ11 GND Power/Other AL11 Reserved

Reserved for future use AJ13 VCCCORE Power/Other AL13 Reserved Reserved for future use AJ15 GND Power/Other AL15 A7# AGTL+ I/O AJ17 VCCCORE Power/Other AL17 REQ4# AGTL+ I/O AJ19 GND Power/Other AL19 REQ3# AGTL+ I/O AJ21 VCCCORE Power/Other AL21 Reserved Reserved for future use AJ23 GND Power/Other AL23 HITM# AGTL+ I/O AJ25 VCCCORE Power/Other AL25 HIT# AGTL+ I/O AJ27 GND Power/Other AL27 DBSY# AGTL+ I/O AJ29 VCCCORE Power/Other AL29 THERMDN Power/Other Power/Other AL31 THERMDP Power/Other 5 AJ31 BSEL1 AJ33 BSEL0 CMOS I/O AL33 TCK TAP Input AJ35 SMI# CMOS Input AL35 VID0 Power/Other AJ37 VID3 Power/Other AL37 VID2 Power/Other 3 AK2 VCCCORE Power/Other AM2 Reserved Reserved for future use AK4 GND Power/Other AM4 VCCCORE Power/Other AK6 A28# AGTL+ I/O AM6 GND Power/Other AK8 A3# AGTL+ I/O AM8 VCCCORE Power/Other AK10 A11# AGTL+ I/O AM10 GND Power/Other AK12 VREF6 Power/Other

AM12 VCCCORE Power/Other AK14 A14# AGTL+ I/O AM14 GND Power/Other AK16 Reserved Reserved for future use AM16 VCCCORE Power/Other AK18 REQ0# AGTL+ I/O AM18 GND Power/Other AK20 LOCK# AGTL+ I/O AM20 VCCCORE Power/Other AK22 VREF7 Power/Other AM22 GND Power/Other AK24 Reserved Reserved for future use AM24 VCCCORE Power/Other AK26 PWRGOOD CMOS Input AM26 GND Power/Other AK28 RS2# AGTL+ Input AM28 VCCCORE Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Datasheet Pin Name Signal Group Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Pin Name Signal Group AM30 GND Power/Other B32 GND Power/Other AM32 VCCCORE Power/Other B34 VCCCORE Power/Other AM34 GND Power/Other B36 Reserved Reserved for future use AM36 VID1 Power/Other C1 D33# AGTL+ I/O AN3 GND Power/Other C3 VCCCORE Power/Other AN5 A12# AGTL+ I/O C5

D31# AGTL+ I/O AN7 A16# AGTL+ I/O C7 D34# AGTL+ I/O AN9 A6# AGTL+ I/O C9 D36# AGTL+ I/O AN11 Reserved Reserved for future use C11 D45# AGTL+ I/O AN13 Reserved Reserved for future use C13 D49# AGTL+ I/O AN15 Reserved Reserved for future use C15 D40# AGTL+ I/O AN17 BPRI# AGTL+ Input C17 D59# AGTL+ I/O AN19 DEFER# AGTL+ Input C19 D55# AGTL+ I/O AN21 Reserved Reserved for future use C21 D54# AGTL+ I/O AN23 Reserved Reserved for future use C23 D58# AGTL+ I/O AN25 TRDY# AGTL+ Input C25 D50# AGTL+ I/O AN27 DRDY# AGTL+ I/O C27 D56# AGTL+ I/O AN29 BR0# AGTL+ I/O C29 Reserved Reserved for future use AN31 ADS# AGTL+ I/O C31 Reserved Reserved for future use AN33 TRST# TAP Input C33 Reserved Reserved for future use AN35 TDI TAP Input C35 BPM0# AGTL+ I/O AN37 TDO TAP Output C37 CPUPRES# Power/Other B2 D35# AGTL+ I/O D2 GND Power/Other B4 GND Power/Other D4 GND Power/Other B6 VCCCORE

Power/Other D6 VCCCORE Power/Other B8 GND Power/Other D8 D38# AGTL+ I/O B10 VCCCORE Power/Other D10 D39# AGTL+ I/O B12 GND Power/Other D12 D42# AGTL+ I/O B14 VCCCORE Power/Other D14 D41# AGTL+ I/O B16 GND Power/Other D16 D52# AGTL+ I/O B18 VCCCORE Power/Other D18 GND Power/Other B20 GND Power/Other D20 VCCCORE Power/Other B22 VCCCORE Power/Other D22 GND Power/Other B24 GND Power/Other D24 VCCCORE Power/Other B26 VCCCORE Power/Other D26 GND Power/Other B28 GND Power/Other D28 VCCCORE Power/Other B30 VCCCORE Power/Other D30 GND Power/Other 95 Intel® Celeron™ Processor up to 700 MHz Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. 96 Pin Name Signal Group Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Pin Name Signal Group D32 VCCCORE Power/Other F32 GND Power/Other D34 GND Power/Other F34 VCCCORE Power/Other D36 VCCCORE Power/Other F36 GND Power/Other

E1 D26# AGTL+ I/O G1 D21# AGTL+ I/O E5 VCCCORE Power/Other G3 D23# AGTL+ I/O E7 GND Power/Other G5 GND Power/Other E9 VCCCORE Power/Other G33 BP2# AGTL+ I/O E11 GND Power/Other G35 Reserved Reserved for future use E13 VCCCORE Power/Other G37 Reserved Reserved for future use E15 GND Power/Other H2 GND Power/Other E17 VCCCORE Power/Other H4 D16# AGTL+ I/O E19 GND Power/Other H6 D19# AGTL+ I/O E21 VCORE DET Power/Other H32 VCCCORE Power/Other E23 Reserved Reserved for future use H34 GND Power/Other E25 D62# AGTL+ I/O H36 VCCCORE Power/Other E27 SLEWCTRL Power/Other J1 D7# AGTL+ I/O E29 Reserved Reserved for future use J3 D30# AGTL+ I/O E3 D25# AGTL+ I/O J5 VCCCORE Power/Other E31 Reserved Reserved for future use J33 PICCLK APIC Clock Input E33 VREF0 Power/Other J35 PICD0 APIC I/O E35 BPM1# AGTL+ I/O J37 PREQ# CMOS Input E37 BP3# AGTL+ I/O K2 VCCCORE Power/Other F2 VCCCORE

Power/Other K4 VREF2 Power/Other F4 VCCCORE Power/Other K6 D24# AGTL+ I/O F6 D32# AGTL+ I/O K32 VCCCORE Power/Other F8 D22# AGTL+ I/O K34 VCCCORE Power/Other F10 Reserved Reserved for future use K36 GND Power/Other F12 D27# AGTL+ I/O L1 D13# AGTL+ I/O F14 VCCCORE Power/Other L3 D20# AGTL+ I/O F16 D63# AGTL+ I/O L5 GND Power/Other F18 VREF1 Power/Other L33 Reserved Reserved for future use F20 GND Power/Other L35 PICD1 APIC I/O F22 VCCCORE Power/Other L37 LINT1/NMI CMOS Input F24 GND Power/Other M2 GND Power/Other F26 VCCCORE Power/Other M4 D11# AGTL+ I/O F28 GND Power/Other M6 D3# AGTL+ I/O F30 VCCCORE Power/Other M32 VCCCORE Power/Other Datasheet Intel® Celeron™ Processor up to 700 MHz Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Datasheet Pin Name Signal Group Table 50. FC-PGA Signal Listing in Order by Pin Number Pin No. Pin Name Signal Group M34 GND Power/Other

T36 GND Power/Other M36 LINT0/INTR CMOS Input U1 D4# AGTL+ I/O N1 D2# AGTL+ I/O U3 D15# AGTL+ I/O N3 D14# AGTL+ I/O U5 GND Power/Other N5 VCCCORE Power/Other U33 PLL2 Power/Other N33 Reserved Reserved for future use U35 Reserved Reserved for future use N35 Reserved Reserved for future use U37 Reserved Reserved for future use N37 Reserved Reserved for future use V2 GND Power/Other P2 VCCCORE Power/Other V4 Reserved Reserved for future use P4 D18# AGTL+ I/O V6 VREF4 Power/Other P6 D9# AGTL+ I/O V32 VCCCORE Power/Other P32 GND Power/Other V34 GND Power/Other P34 VCCCORE Power/Other V36 VCCCORE Power/Other P36 GND Power/Other W1 D0# AGTL+ I/O Q1 D12# AGTL+ I/O W3 Reserved Reserved for future use Q3 D10# AGTL+ I/O W5 VCCCORE Power/Other Q5 GND Power/Other W33 PLL1 Power/Other Q33 Reserved Reserved for future use W35 Reserved Reserved for future use Q35 Reserved Reserved for future use

W37 BCLK System Bus Clock Q37 Reserved Reserved for future use X4 RESET# Power/Other R2 Reserved Reserved for future use X6 Reserved Reserved for future use R4 D17# AGTL+ I/O X20 Reserved Reserved for future use R6 VREF3 Power/Other X32 GND Power/Other R32 VCCCORE Power/Other X34 VCCCORE Power/Other R34 GND Power/Other X36 GND Power/Other R36 VCCCORE Power/Other Y1 Reserved Reserved for future use S1 D8# AGTL+ I/O Y3 A26# AGTL+ I/O S3 D5# AGTL+ I/O Y5 GND Power/Other 4 S5 VCCCORE Power/Other Y33 Reserved S33 Reserved Reserved for future use Y35 VCCCORE Reserved for future use Power/Other S35 RTTCTRL Power/Other Y37 GND Power/Other S37 Reserved Reserved for future use Z2 GND Power/Other T2 VCCCORE Power/Other Z4 A29# AGTL+ I/O T4 D1# AGTL+ I/O Z6 A18# AGTL+ I/O T6 D6# AGTL+ I/O Z32 VCCCORE Power/Other T32 GND Power/Other Z34 GND Power/Other T34 VCCCORE Power/Other Z36 Vcc2.5

Power/Other 97 Intel® Celeron™ Processor up to 700 MHz NOTES: 1. VCC15 must be supplied by the same voltage source supplying VTT on the motherboard 2. Previously this pin functioned as the EDGCTRL signal 3. Previously, PGA370 designs defined this pin as a GND For flexible PGA370 designs, it must be left unconnected (N/C). 4. Previously, PGA370 designs defined this pin as a GND 5. Intel® Celeron™ processor in the FC-PGA package does not make use of this pin 5.5 Heat Sink Volumetric Keepout Zone Guidelines When designing a system platform it is necessary to ensure sufficient space is left for a heat sink to be installed without mechanical interference. Due to the large number of proprietary heat sink designs, Intel cannot specify a keepout zone that covers all passive and active-fan heat sinks. It is the system designer’s responsibility to consider their own proprietary solution when designing the desired keepout zone in their system platform. Please refer to the Intel®

Celeron™ processor (PPGA) at 466 MHz Thermal Solutions Guidelines (Order Number 245156) for further guidance. Note: 98 The heat sink keepout zones found in Section 6.0, “Boxed Processor Specifications” on page 99 refer specifically to the Boxed Processor’s active-fan heat sink. This does not reflect the worst-case dimensions that may exist with other third party passive or active-fan heat sinks. Contact your vendor of choice for their passive or active-fan heat sink dimensions to ensure that mechanical interference with system platform components does not occur. Datasheet Intel® Celeron™ Processor up to 700 MHz 6.0 Boxed Processor Specifications The Intel® Celeron™ processor is also offered as an Intel boxed processor in the FC-PGA, PPGA, and S.EP Package Intel boxed processors are intended for system integrators who build systems from motherboards and standard components. The boxed Celeron processor in the SEP Package is supplied with an attached fan heatsink.

The boxed Celeron processors in FC-PGA and PPGA packages are supplied with unattached fan heatsinks. This section documents motherboard and system requirements for the fan heatsink that is supplied with the boxed Intel Celeron processor. This section is particularly important for OEMs that manufacture motherboards for system integrators. Unless otherwise noted, all figures in this section are dimensioned in inches. Note: Drawings in this section reflect only the specifications of the Intel boxed processor product. These dimensions should not be used as a generic keep-out zone for all heatsinks. It is the system designer’s responsibility to consider their proprietary solution when designing to the required keep-out zone on their system platform and chassis. Refer to the package specific Thermal / Mechanical Solution Functional Specifications for further guidance. Contact your local Intel Sales Representative for these documents. 6.1 Mechanical Specifications for the Boxed Intel®

Celeron™ Processor 6.11 Mechanical Specifications for the S.EP Package This section documents the mechanical specifications of the boxed Intel® Celeron™ processor fan heatsink in the S.EP Package The boxed processor in the SEP Package ships with an attached fan heatsink. Figure 25 shows a mechanical representation of the boxed Intel Celeron processor in a S.EP Package in the retention mechanism, which is not shipped with the boxed Intel Celeron processor. The space requirements and dimensions for the boxed processor in the S.EP Package are shown in Figure 26 and Figure 27. Also, a conceptual attachment interface to low profile retention mechanism is shown in Figure 35. Note: Datasheet The heatsink airflow keepout zones found in Table 51 and Figure 35 refer specifically to the boxed processor’s active fan heatsink. This does not reflect the worst-case dimensions that may exist with other third party passive or active fan heatsinks. 99 Intel® Celeron™ Processor up to

700 MHz Figure 25. Retention Mechanism for the Boxed Intel® Celeron™ Processor in the SEP Package Figure 26. Side View Space Requirements for the Boxed Processor in the SEP Package 1.386 (A) S.EPP Fan Heatsink 242-Contact Slot Connector 0.576 (B) 100 Datasheet Intel® Celeron™ Processor up to 700 MHz Figure 27. Front View Space Requirements for the Boxed Processor the SEP Package 5.40 (E) 4.74 (D) 2.02 (C) Table 51. Boxed Processor Fan Heatsink Spatial Dimensions for the SEP Package Fig. Ref Label 6.111 Dimensions (Inches) Min Typ Max A Fan Heatsink Depth (see Figure 24) B Fan Heatsink Height from Motherboard (see Figure 24) 1.40 C Fan Heatsink Height (see Figure 25) 2.00 D Fan Heatsink Width (see Figure 25) 4.80 0.58 E Fan Heatsink Base Width (see Figure 25) F Airflow Keepout Zones from end of Fan Heatsink 0.4 5.4 G Airflow Keepout Zones from face of Fan Heatsink 0.2 Boxed Processor Heatsink Weight The heatsink for the boxed Intel Celeron

processor in the S.EP Package will not weigh more than 225 grams. 6.112 Boxed Processor Retention Mechanism The boxed Intel Celeron processor requires a S.EP Package retention mechanism to secure the processor in the 242-contact slot connector. A SEP Package retention mechanism are provided with the boxed processor. Motherboards designed for use by system integrators should include a retention mechanism and appropriate installation instructions. The boxed Intel Celeron processor does not require additional fan heatsink supports. Fan heatsink supports are not shipped with the boxed Intel Celeron processor. Motherboards designed for flexible use by system integrators must still recognize the boxed Pentium II processor’s fan heatsink clearance requirements, which are described in the Pentium® II Processor at 233, 266, 300, and 333 MHz Datasheet (Order Number 243335). Datasheet 101 Intel® Celeron™ Processor up to 700 MHz 6.12 Mechanical Specifications for the PPGA Package

This section documents the mechanical specifications for the fan heatsink of the boxed Intel® Celeron™ processor in the PPGA package. The boxed processor in the PPGA package ships with an unattached fan heatsink which has an integrated clip. Figure 28 shows a mechanical representation of the boxed Intel Celeron processor in the PPGA package. Note that the airflow of the fan heatsink is into the center and out of the sides of the fan heatsink. Clearance is required around the fan heatsink to ensure unimpeded airflow for proper cooling. The space requirements and dimensions for the boxed processor with an integrated fan heatsink are shown in Figure 29, Figure 30, and Figure 31. All dimensions are in inches Note: The heatsink airflow keepout zones found in Table 52 and Figure 36 refer specifically to the boxed processor’s active fan heatsink. This does not reflect the worst-case dimensions that may exist with other third party passive or active fan heatsinks. Figure 28. Boxed

Intel® Celeron™ Processor in the PPGA Package Figure 29. Side View Space Requirements for the Boxed Processor in the PPGA Package 102 Datasheet Intel® Celeron™ Processor up to 700 MHz Figure 30. Top View Space Requirements for the Boxed Processor in the FC-PGA and PPGA Packages Note 2.52 Note: The Intel ® Celeron™ processor at frequencies of 533 MHz and greater ship with a 3-wire fan. 2.00 Figure 31. Side View Space Requirements for the Boxed Processor in the FC-PGA and PPGA Packages Datasheet 103 Intel® Celeron™ Processor up to 700 MHz 6.121 Boxed Processor Heatsink Dimensions Table 52. Boxed Processor Fan Heatsink Spatial Dimensions for the PPGA and FC-PGA Packages 1 Dimensions (Inches) Min Typ Fan Heatsink Length (see Figure 28) Max Notes 2.52 Fan Heatsink Height from Motherboard (see Figure 27) 0.34 Fan Heatsink Height (see Figure 27) Fan Heatsink Width (see Figure 28) 1.22 2 1.77 3 2.00 Airflow Keepout Zones from end of Fan Heatsink

0.20 Airflow Keepout Zones from face of Fan Heatsink 0.20 NOTES: 1. Drawings reflect only the specifications of the Intel boxed processor product These dimensions should not be used as a universal keepout zone that covers all heatsinks. It is the system designer’s responsibility to consider their own proprietary solution when designing the desired keepout zone in their system platform. 2. Applies to the heatsinks provided with the boxed Intel Celeron processors from 300A MHz to 433 MHz 3. Applies to the heatsink provided with the Intel Celeron processors from 466 MHz to 533 MHz in the PPGA package and the boxed Intel Celeron processors from 533A to 700 MHz in the FC-PGA package. 6.122 Boxed Processor Heatsink Weight The heatsink for the boxed Intel Celeron processor in the PPGA package will not weigh more than 180 grams. 6.13 Mechanical Specifications for the FC-PGA Package This section documents the mechanical specifications of the fan heatsink for the boxed Intel Celeron

processor in the FC-PGA (Flip-Chip Pin Grid Array) package. The boxed processor in the FC-PGA package ships with a fan heatsink which has an integrated clip. Figure 32 shows a mechanical representation of the boxed Intel Celeron processor in the FC-PGA package. The dimensions for the boxed processor with integrated fan heatsink are shown in Figure 30 and Figure 31. General spatial specifications are also outlined in Table 52 The fan heatsink is designed to allow visibility of the FC-PGA processor markings located on the top of the package. The FC-PGA processor markings are visible after installation of the fan heatsink due to notched sides of the heatsink base (See Figure 33). The boxed processor fan heatsink is also asymmetrical in that the mechanical step feature (specified in Figure 34) must sit over the socket’s cam. The step allows the heatsink to securely interface with the processor in order to meet the processors thermal requirements. 104 Datasheet Intel® Celeron™

Processor up to 700 MHz Figure 32. Boxed Intel® Celeron™ processor in the 370-pin socket (FC-PGA Package) Figure 33. Dimensions of Notches in Heatsink Base Datasheet 105 Intel® Celeron™ Processor up to 700 MHz Figure 34. Dimensions of Mechanical Step Feature in Heatsink Base for the FC-PGA Package 6.131 Boxed Processor Heatsink Weight The heatsink for the boxed Intel Celeron processor in the FC-PGA package will not weigh more than 180 grams. 6.2 Thermal Specifications This section describes the cooling requirements of the fan heatsink solution utilized by the boxed processors. 6.21 Thermal Requirements for the Boxed Intel® Celeron™ Processor 6.211 Boxed Processor Cooling Requirements The boxed processor is directly cooled with a fan heatsink. However, meeting the processor’s temperature specification is also a function of the thermal design of the entire system, and ultimately the responsibility of the system integrator. The processor temperature

specification is found in Section 4.0 of this document The boxed processor fan heatsink is able to keep the processor temperature within the specifications (see Section 4.0) in chassis that provide good thermal management. For the boxed processor fan heatsink to operate properly, it is critical that the airflow provided to the fan heatsink is unimpeded. Airflow of the fan heatsink is into the center and out of the sides of the fan heatsink. Airspace is required around the fan to ensure that the airflow through the fan heatsink is not blocked. Blocking the airflow to the fan heatsink reduces the cooling efficiency and decreases fan life. Figure 35 and Figure 36 illustrate an acceptable airspace clearance for the fan heatsink. It is also recommended that the air temperature entering the fan be kept below 45 °C Again, meeting the processor's temperature specification is the responsibility of the system integrator. The processor temperature specification is found in Section 40 of

this document 106 Datasheet Intel® Celeron™ Processor up to 700 MHz Figure 35. Top View Airspace Requirements for the Boxed Processor in the SEP Package Fan Heatsink Processor Airspace 0.20 Min Air Space (G) Measure ambient temperature 0.3" above center of fan inlet 0.40 Min Air Space (F) (both ends) Figure 36. Side View Airspace Requirements for the Boxed Intel® Celeron™ Processor in the FC-PGA and PPGA packages Measure ambient temperature 0.3" above center of fan inlet 0.20 Min Air Space 0.20 Min Air Space Fan Heatsink Processor 6.212 Boxed Processor Thermal Cooling Solution Clip The boxed processor thermal solution requires installation by a system integrator to secure the thermal cooling solution to the processor after it is installed in the 370-pin socket ZIF socket. Motherboards designed for use by system integrators should take care to consider the implications of clip installation and potential scraping of the motherboard PCB underneath the

370-pin socket attach tabs. Motherboard components should not be placed too close to the 370-pin socket attach tabs in a way that interferes with the installation of the boxed processor thermal cooling solution (see Figure 37 for specifications). Datasheet 107 Intel® Celeron™ Processor up to 700 MHz Figure 37. Clip Keepout Requirements for the 370-Pin (Top View) 6.3 Electrical Requirements for the Boxed Intel® Celeron™ Processor 6.31 Electrical Requirements The boxed processor’s fan heatsink requires a +12 V power supply. A fan power cable is shipped with the boxed processor to draw power from a power header on the motherboard. The power cable connector and pin-out are shown in Figure 38. Motherboards must provide a matched power header to support the boxed processor. Table 53 contains specifications for the input and output signals at the fan heatsink connector. The fan heatsink outputs a SENSE signal (an open-collector output) that pulses at a rate of two pulses

per fan revolution. A motherboard pull-up resistor provides VOH to match the motherboard-mounted fan speed monitor requirements, if applicable. Use of the SENSE signal is optional. If the SENSE signal is not used, pin 3 of the connector should be tied to GND. The boxed Intel Celeron processors in the PPGA package at 500 MHz and below are shipped with an unattached fan heatsink with two wire power-supply cables. These two wire fans do NOT support the motherboard-mounted fan speed monitor feature. The Intel Celeron processor at 533 MHz and above ship with unattached fan heatsinks that have three power-supply cables. These three wire fans DO support the motherboard-mounted fan speed monitor feature. The power header on the baseboard must be positioned to allow the fan heatsink power cable to reach it. The power header identification and location should be documented in the motherboard documentation or on the motherboard. Figure 39 shows the recommended location of the fan power connector

relative to the 242-contact slot connector. Figure 40 shows the recommended 108 Datasheet Intel® Celeron™ Processor up to 700 MHz location of the fan power connector relative to the 370-pin socket. For the SEP Package, the motherboard power header should be positioned within 4.75 inches (lateral) of the fan power connector. The motherboard power header should be positioned within 400 inches (lateral) of the fan power connector for the PPGA and FC-PGA packages. Figure 38. Boxed Processor Fan Heatsink Power Cable Connector Description Pin Signal 1 GND Straight square pin, 3-pin terminal housing with polarizing ribs and friction locking ramp. 2 +12V 0.100" pin pitch, 0025" square pin width 3 SENSE Waldom*/Molex P/N 22-01-3037 or equivalent. Match with straight pin, friction lock header on motherboard Waldom/Molex P/N 22-23-2031, AMP* P/N 640456-3, or equivalent. 1 2 3 Table 53. Fan Heatsink Power and Signal Specifications Description +12V: 12 volt fan

power supply Min Typ Max 10.2V 12V 13.8V IC: Fan current draw 100 mA SENSE: SENSE frequency (motherboard should pull this pin up to appropriate Vcc with resistor) 2 pulses per fan revolution Figure 39. Motherboard Power Header Placement for the SEP Package 242-Contact Slot Connector Fan power connector location (1.56 inches above motherboard 1.428" 1.449" r = 4.75" Motherboard fan power header should be positioned within 4.75 inches of the fan power connector (lateral distance). Datasheet 109 Intel® Celeron™ Processor up to 700 MHz Figure 40. Motherboard Power Header Placement Relative to the 370-pin Socket R = 4.00" PGA370 ppga1.vsd 110 Datasheet Intel® Celeron™ Processor up to 700 MHz Intel® Celeron™ Processor Signal Description 7.0 Table 54 provides an alphabetical listing of all Intel® Celeron™ processor signals. The tables at the end of this section summarize the signals by direction: output, input, and I/O. Note:

Unless otherwise noted, the signals apply to S.EP, PPGA, and FC-PGA Packages Table 54. Alphabetical Signal Reference (Sheet 1 of 7) Signal A[31:3]# Type I/O Description The A[31:3]# (Address) signals define a 232-byte physical memory address space. When ADS# is active, these pins transmit the address of a transaction; when ADS# is inactive, these pins transmit transaction type information. These signals must ® connect the appropriate pins of all agents on the Intel Celeron™ processor system bus. The A[31:24]# signals are parity-protected by the AP1# parity signal, and the A[23:3]# signals are parity-protected by the AP0# parity signal. On the active-to-inactive transition of RESET#, the processors sample the A[31:3]# pins to determine their power-on configuration. See the Pentium® II Processor Developer’s Manual (Order Number 243502) for details. A20M# I If the A20M# (Address-20 Mask) input signal is asserted, the Intel Celeron processor masks physical address bit 20

(A20#) before looking up a line in any internal cache and before driving a read/write transaction on the bus. Asserting A20M# emulates the 8086 processor’s address wrap-around at the 1 MB boundary. Assertion of A20M# is only supported in real mode. A20M# is an asynchronous signal. However, to ensure recognition of this signal following an I/O write instruction, it must be valid along with the TRDY# assertion of the corresponding I/O Write bus transaction. ADS# I/O BCLK I The ADS# (Address Strobe) signal is asserted to indicate the validity of the transaction address on the A[31:3]# pins. All bus agents observe the ADS# activation to begin parity checking, protocol checking, address decode, internal snoop, or deferred reply ID match operations associated with the new transaction. This signal must connect the appropriate pins on all Intel Celeron processor system bus agents. The BCLK (Bus Clock) signal determines the bus frequency. All Intel Celeron processor system bus agents

must receive this signal to drive their outputs and latch their inputs on the BCLK rising edge. All external timing parameters are specified with respect to the BCLK signal. The BNR# (Block Next Request) signal is used to assert a bus stall by any bus agent who is unable to accept new bus transactions. During a bus stall, the current bus owner cannot issue any new transactions. I/O BP[3:2]# I/O The BP[3:2]# (Breakpoint) signals are outputs from the processor that indicate the status of breakpoints. I/O The BPM[1:0]# (Breakpoint Monitor) signals are breakpoint and performance monitor signals. They are outputs from the processor which indicate the status of breakpoints and programmable counters used for monitoring processor performance. I The BPRI# (Bus Priority Request) signal is used to arbitrate for ownership of the Intel Celeron processor system bus. It must connect the appropriate pins of all Intel Celeron processor system bus agents. Observing BPRI# active (as asserted by

the priority agent) causes all other agents to stop issuing new requests, unless such requests are part of an ongoing locked operation. The priority agent keeps BPRI# asserted until all of its requests are completed, then releases the bus by deasserting BPRI#. BPM[1:0]# BPRI# Datasheet Since multiple agents might need to request a bus stall at the same time, BNR# is a wire-OR signal which must connect the appropriate pins of all Intel Celeron processor system bus agents. In order to avoid wire-OR glitches associated with simultaneous edge transitions driven by multiple drivers, BNR# is activated on specific clock edges and sampled on specific clock edges. BNR# 111 Intel® Celeron™ Processor up to 700 MHz Table 54. Alphabetical Signal Reference (Sheet 2 of 7) Signal BSEL[1:0] Type I/O Description These signals are used to select the system bus frequency. The frequency is determined by the processor(s), chipset, and frequency synthesizer capabilities. All system bus

agents must operate at the same frequency. Individual processors will only operate at their specified front side bus (FSB) frequency. On motherboards which support operation at either 66 MHz or 100 MHz, a BSEL[1:0] = “x1” will select a 100 MHz system bus frequency and a BSEL[1:0] = “x0” will select a 66 MHz system bus frequency. These signals must be pulled up to 2.5 V or 33 V with 1 KΩ resistor and provided as a frequency selection signal to the clock driver/synthesizer. See Section 272 for implementation examples. note: BSEL1 is not used by the Intel® Celeron™ processor. BR0# I/O The BR0# (Bus Request) pin drives the BREQ[0]# signal in the system. During power-up configuration, the central agent asserts the BREQ0# bus signal in the system to assign the symmetric agent ID to the processor. The processor samples it’s BR0# pin on the active-to-inactive transition of RESET# to obtain it’s symmetric agent ID. The processor asserts BR0# to request the system bus The

CPUPRES# signal provides the ability for a system board to detect the presence of a processor. This pin is a ground on the processor indicating to the system that a processor is installed. The CPUPRES# signal is defined to allow a system design to detect the presence of a terminator device or processor in a PGA370 socket. Combined with the VID combination of VID[3:0]= 1111 (see Section 2.5), a system can determine if a socket is occupied, and whether a processor core is present. See the table below for states and values for determining the presence of a device. CPUPRES# (PPGA and FC-PGA only) PGA370 Socket Occupation Truth Table O Signal Value Status CPUPRES# VID[3:0] 0 Anything other than ‘1111’ Processor core installed in the PGA370 socket. CPUPRES# VID[3:0] 0 1111 Terminator device installed in the PGA370 socket (i.e, no core present) CPUPRES# VID[3:0] 1 Any value PGA370 socket not occupied. D[63:0]# I/O The D[63:0]# (Data) signals are the data signals. These

signals provide a 64-bit data path between the Intel Celeron processor system bus agents, and must connect the appropriate pins on all such agents. The data driver asserts DRDY# to indicate a valid data transfer. DBSY# I/O The DBSY# (Data Bus Busy) signal is asserted by the agent responsible for driving data on the Intel Celeron processor system bus to indicate that the data bus is in use. The data bus is released after DBSY# is deasserted This signal must connect the appropriate pins on all Intel Celeron processor system bus agents. DEFER# I The DEFER# signal is asserted by an agent to indicate that a transaction cannot be guaranteed in-order completion. Assertion of DEFER# is normally the responsibility of the addressed memory or I/O agent. This signal must connect the appropriate pins of all Intel Celeron processor system bus agents. DRDY# I/O The DRDY# (Data Ready) signal is asserted by the data driver on each data transfer, indicating valid data on the data bus. In a

multicycle data transfer, DRDY# may be deasserted to insert idle clocks. This signal must connect the appropriate pins of all Intel Celeron processor system bus agents. EDGCTRL I The EDGCTRL input provides AGTL+ edge control and should be pulled up to VCCCORE with a 51 Ω ± 5% resistor. NOTE: This signal is NOT used on the FC-PGA package. 112 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 54. Alphabetical Signal Reference (Sheet 3 of 7) Signal Type Description EMI (S.EPP only) I EMI pins should be connected to motherboard ground and/or to chassis ground through zero ohm (0Ω) resistors. The zero ohm resistors should be placed in close proximity to the Intel Celeron processor connector. The path to chassis ground should be short in length and have a low impedance. These pins are used for EMI management purposes. FERR# O The FERR# (Floating-point Error) signal is asserted when the processor detects an unmasked floating-point error. FERR# is similar to the

ERROR# signal on the Intel 387 coprocessor, and is included for compatibility with systems using MSDOS*-type floating-point error reporting. When the FLUSH# input signal is asserted, the processor writes back all data in the Modified state from the internal cache and invalidates all internal cache lines. At the completion of this operation, the processor issues a Flush Acknowledge transaction. The processor does not cache any new data while the FLUSH# signal remains asserted. FLUSH# I FLUSH# is an asynchronous signal. However, to ensure recognition of this signal following an I/O write instruction, it must be valid along with the TRDY# assertion of the corresponding I/O Write bus transaction. On the active-to-inactive transition of RESET#, the processor samples FLUSH# to determine its power-on configuration. See Pentium® Pro Family Developer’s Manual, Volume 1: Specifications (Order Number 242690) for details. HIT#, HITM# IERR# IGNNE# I/O The HIT# (Snoop Hit) and HITM# (Hit

Modified) signals convey transaction snoop operation results, and must connect the appropriate pins of all Intel Celeron processor system bus agents. Any such agent may assert both HIT# and HITM# together to indicate that it requires a snoop stall, which can be continued by reasserting HIT# and HITM# together. O The IERR# (Internal Error) signal is asserted by a processor as the result of an internal error. Assertion of IERR# is usually accompanied by a SHUTDOWN transaction on the Intel Celeron processor system bus. This transaction may optionally be converted to an external error signal (e.g, NMI) by system core logic The processor will keep IERR# asserted until the assertion of RESET#, BINIT#, or INIT#. I The IGNNE# (Ignore Numeric Error) signal is asserted to force the processor to ignore a numeric error and continue to execute noncontrol floating-point instructions. If IGNNE# is deasserted, the processor generates an exception on a noncontrol floating-point instruction if a

previous floating-point instruction caused an error. IGNNE# has no effect when the NE bit in control register 0 is set. IGNNE# is an asynchronous signal. However, to ensure recognition of this signal following an I/O write instruction, it must be valid along with the TRDY# assertion of the corresponding I/O Write bus transaction. INIT# I The INIT# (Initialization) signal, when asserted, resets integer registers inside all processors without affecting their internal (L1) caches or floating-point registers. Each processor then begins execution at the power-on Reset vector configured during power-on configuration. The processor continues to handle snoop requests during INIT# assertion. INIT# is an asynchronous signal and must connect the appropriate pins of all bus agents. If INIT# is sampled active on the active to inactive transition of RESET#, then the processor executes its Built-in Self-Test (BIST). LINT[1:0] I The LINT[1:0] (Local APIC Interrupt) signals must connect the

appropriate pins of all APIC Bus agents, including all processors and the core logic or I/O APIC component. When the APIC is disabled, the LINT0 signal becomes INTR, a maskable interrupt request signal, and LINT1 becomes NMI, a nonmaskable interrupt. INTR and NMI are backward compatible with the signals of those names on the Pentium® processor. Both signals are asynchronous Both of these signals must be software configured via BIOS programming of the APIC register space to be used either as NMI/INTR or LINT[1:0]. Because the APIC is enabled by default after Reset, operation of these pins as LINT[1:0] is the default configuration. Datasheet 113 Intel® Celeron™ Processor up to 700 MHz Table 54. Alphabetical Signal Reference (Sheet 4 of 7) Signal Type Description The LOCK# signal indicates to the system that a transaction must occur atomically. This signal must connect the appropriate pins of all system bus agents. For a locked sequence of transactions, LOCK# is asserted from

the beginning of the first transaction end of the last transaction. LOCK# I/O PICCLK I The PICCLK (APIC Clock) signal is an input clock to the processor and core logic or I/O APIC which is required for operation of all processors, core logic, and I/O APIC components on the APIC bus. PICD[1:0] I/O The PICD[1:0] (APIC Data) signals are used for bidirectional serial message passing on the APIC bus, and must connect the appropriate pins of the Intel Celeron processor for proper initialization. PLL1, PLL2 (PGA packages only) I All Intel Celeron processors have internal analog PLL clock generators that require quiet power supplies. PLL1 and PLL2 are inputs to the internal PLL and should be connected to VCCCORE through a low-pass filter that minimizes jitter. See the platform design guide for implementation details. PRDY# O The PRDY (Probe Ready) signal is a processor output used by debug tools to determine processor debug readiness. PREQ# I The PREQ# (Probe Request) signal

is used by debug tools to request debug operation of the processors. When the priority agent asserts BPRI# to arbitrate for ownership of the system bus, it will wait until it observes LOCK# deasserted. This enables symmetric agents to retain ownership of the system bus throughout the bus locked operation and ensure the atomicity of lock. The PWRGOOD (Power Good) signal is a 2.5 V tolerant processor input The processor requires this signal to be a clean indication that the clocks and power supplies (VCCCORE, etc.) are stable and within their specifications Clean implies that the signal will remain low (capable of sinking leakage current), without glitches, from the time that the power supplies are turned on until they come within specification. The signal must then transition monotonically to a high (25 V) state Figure 39 illustrates the relationship of PWRGOOD to other system signals. PWRGOOD can be driven inactive at any time, but clocks and power must again be stable before a

subsequent rising edge of PWRGOOD. It must also meet the minimum pulse width specification in Table 16 and Table 17, and be followed by a 1 ms RESET# pulse. PWRGOOD I The PWRGOOD signal must be supplied to the processor; it is used to protect internal circuits against voltage sequencing issues. It should be driven high throughout boundary scan operation. PWRGOOD Relationship at Power-On BCLK VCCCORE, VREF PWRGOOD 1 ms RESET# REQ[4:0]# 114 I/O The REQ[4:0]# (Request Command) signals must connect the appropriate pins of all processor system bus agents. They are asserted by the current bus owner over two clock cycles to define the currently active transaction type. Datasheet Intel® Celeron™ Processor up to 700 MHz Table 54. Alphabetical Signal Reference (Sheet 5 of 7) Signal Type Description Asserting the RESET# signal resets the processor to a known state and invalidates the L1 cache without writing back any of the contents. RESET# must stay active for at least one

millisecond after VCCCORE and CLK have reached their proper specifications. On observing active RESET#, all system bus agents will deassert their outputs within two clocks. RESET# I A number of bus signals are sampled at the active-to-inactive transition of RESET# for power-on configuration. These configuration options are described in the Pentium® Pro Family Developer’s Manual, Volume 1: Specifications (Order Number 242690). The processor may have its outputs tristated via power-on configuration. Otherwise, if INIT# is sampled active during the active-to-inactive transition of RESET#, the processor will execute its Built-in Self-Test (BIST). Whether or not BIST is executed, the processor will begin program execution at the power on Reset vector (default 0 FFFF FFF0h). RESET# must connect the appropriate pins of all processor system bus agents. RS[2:0]# RTTCTRL SLEWCTRL I The RS[2:0]# (Response Status) signals are driven by the response agent (the agent responsible for

completion of the current transaction), and must connect the appropriate pins of all processor system bus agents. I The RTTCTRL input signal provides AGTL+ termination control. The Intel® Celeron™ FC-PGA processor samples this input to sense the presence of motherboard AGTL+ termination. See the platform design guide for implementation details. I The SLEWCTRL input signal provides AGTL+ slew rate control. The Intel® Celeron™ FC-PGA processor samples this input to determine the slew rate for AGTL+ signals when it is the driving agent. See the platform design guide for implementation details. SLOTOCC# is defined to allow a system design to detect the presence of a terminator card or processor in a SC242 connector. This pin is not a signal; rather, it is a short to VSS. Combined with the VID combination of VID[4:0]= 11111 (see Section 2.5), a system can determine if a SC242 connector is occupied, and whether a processor core is present. The states and values for determining the

type of cartridge in the SC242 connector is shown below. SC242 Occupation Truth Table SLOTOCC# (S.EPP only) SLP# SMI# Datasheet O Signal Value Status SLOTOCC# VID[4:0] 0 Anything other than ‘11111’ Processor with core in SC242 connector. SLOTOCC# VID[4:0] 0 11111 Terminator cartridge in SC242 connector (i.e, no core present) SLOTOCC# VID[4:0] 1 Any value SC242 connector not occupied. I The SLP# (Sleep) signal, when asserted in Stop-Grant state, causes processors to enter the Sleep state. During Sleep state, the processor stops providing internal clock signals to all units, leaving only the Phase-Locked Loop (PLL) still operating. Processors in this state will not recognize snoops or interrupts. The processor will recognize only assertions of the SLP#, STPCLK#, and RESET# signals while in Sleep state. If SLP# is deasserted, the processor exits Sleep state and returns to Stop-Grant state, restarting its internal clock signals to the bus and APIC processor core

units. I The SMI# (System Management Interrupt) signal is asserted asynchronously by system logic. On accepting a System Management Interrupt, processors save the current state and enter System Management Mode (SMM). An SMI Acknowledge transaction is issued, and the processor begins program execution from the SMM handler. 115 Intel® Celeron™ Processor up to 700 MHz Table 54. Alphabetical Signal Reference (Sheet 6 of 7) Signal Type Description STPCLK# I The STPCLK# (Stop Clock) signal, when asserted, causes processors to enter a low power Stop-Grant state. The processor issues a Stop-Grant Acknowledge transaction, and stops providing internal clock signals to all processor core units except the bus and APIC units. The processor continues to snoop bus transactions and may latch interrupts while in Stop-Grant state. When STPCLK# is deasserted, the processor restarts its internal clock to all units, resumes execution, and services any pending interrupt. The assertion of

STPCLK# has no effect on the bus clock; STPCLK# is an asynchronous input. TCK I The TCK (Test Clock) signal provides the clock input for the Intel Celeron processor Test Access Port. TDI I The TDI (Test Data In) signal transfers serial test data into the processor. TDI provides the serial input needed for JTAG specification support. TDO O The TDO (Test Data Out) signal transfers serial test data out of the processor. TDO provides the serial output needed for JTAG specification support. TESTHI (S.EPP only) I Refer to Section 2.6 for implementation details THERMDN O Thermal Diode p-n junction. Used to calculate core temperature See Section 41 THERMDP I Thermal Diode p-n junction. Used to calculate core temperature See Section 41 THERMTRIP# O The processor protects itself from catastrophic overheating by use of an internal thermal sensor. This sensor is set well above the normal operating temperature to ensure that there are no false trips. The processor will stop all

execution when the junction temperature exceeds approximately 135 °C. This is signaled to the system by the THERMTRIP# (Thermal Trip) pin. Once activated, the signal remains latched, and the processor stopped, until RESET# goes active. There is no hysteresis built into the thermal sensor itself; as long as the die temperature drops below the trip level, a RESET# pulse will reset the processor and execution will continue. If the temperature has not dropped below the trip level, the processor will reassert THERMTRIP# and remain stopped. TMS I The TMS (Test Mode Select) signal is a JTAG specification support signal used by debug tools. TRDY# I The TRDY# (Target Ready) signal is asserted by the target to indicate that it is ready to receive a write or implicit writeback data transfer. TRDY# must connect the appropriate pins of all system bus agents. TRST# I The TRST# (Test Reset) signal resets the Test Access Port (TAP) logic. Intel Celeron processors require this signal to be

driven low during power on Reset. A 680 ohm resistor is the suggested value for a pull down resistor on TRST#. I The VCCCMOS pin provides the CMOS voltage for use by the platform. The 25 V must be provided to the VCC2.5 input and 15 V must be provided to the VCC15 input The processor re-routes the 1.5 V input to the VCCCMOS output via the package The supply for VCC1.5 must be the same one used to supply VTT I The VCCCMOS pin provides the CMOS voltage for use by the platform. The 25 V must be provided to the VCC2.5 input and 15 V must be provided to the VCC15 input The processor re-routes the 2.5 V input to the VCCCMOS output via the package O The VCCCMOS pin provides the CMOS voltage for use by the platform. The 25 V must be provided to the VCC2.5 input and 15 V must be provided to the VCC15 input O The VCOREDET signal will float for 2.0 V core processors and will be grounded for Celeron™ FC-PGA processor with a 1.5V core voltage O The VID (Voltage ID) pins can be used to

support automatic selection of power supply voltages. These pins are not signals, but are either an open circuit or a short circuit to VSS on the processor. The combination of opens and shorts defines the voltage required by the processor. The VID pins are needed to cleanly support voltage specification variations on Intel Celeron processors. See Table 2 for definitions of these pins. The power supply must supply the voltage that is requested by these pins, or disable itself. VCC1.5 (PGA packages only) VCC2.5 (PGA packages only) VCCCMOS (PGA packages only) VCOREDET (PGA packages only) VID[4:0] (S.EPP) VID[3:0] (PGA packages only) 116 Datasheet Intel® Celeron™ Processor up to 700 MHz Table 54. Alphabetical Signal Reference (Sheet 7 of 7) Signal Type Description I These input signals are used by the AGTL+ inputs as a reference voltage. AGTL+ inputs are differential receivers and will use this voltage to determine whether the signal is a logic high or logic low. VREF[7:0]

(PGA packages only) 7.1 For the FC-PGA package, VREF is typically 2/3 of VTT Signal Summaries Table 55 through Table 58 list attributes of the Intel® Celeron™ processor output, input, and I/O signals. Table 55. Output Signals Name Active Level Clock Signal Group CPUPRES# (PGA packages only) Low Asynch Power/Other FERR# Low Asynch CMOS Output IERR# Low Asynch CMOS Output PRDY# Low BCLK AGTL+ Output SLOTOCC# (S.EPP only) Low Asynch Power/Other TDO High TCK TAP Output THERMDN N/A Asynch Power/Other THERMTRIP# Low Asynch CMOS Output VCOREDET (PGA packages only) High Asynch Power/Other VID[4:0] (S.EPP) VID[3:0] (PGA packages) High Asynch Power/Other Table 56. Input Signals (Sheet 1 of 2) Name A20M# Datasheet Active Level Clock Low Asynch BPRI# Low BCLK BCLK High Signal Group Qualified CMOS Input Always AGTL+ Input Always System Bus Clock Always 1 DEFER# Low BCLK AGTL+ Input Always FLUSH# Low Asynch CMOS Input

Always 1 IGNNE# Low Asynch CMOS Input Always 1 INIT# Low Asynch CMOS Input Always 1 INTR High Asynch CMOS Input APIC disabled mode LINT[1:0] High Asynch CMOS Input APIC enabled mode NMI High Asynch CMOS Input APIC disabled mode PICCLK High APIC Clock Always PREQ# Low Asynch CMOS Input Always 117 Intel® Celeron™ Processor up to 700 MHz Table 56. Input Signals (Sheet 2 of 2) Name Active Level Clock Signal Group PWRGOOD High Asynch CMOS Input Always RESET# Low BCLK AGTL+ Input Always RS[2:0]# Low BCLK AGTL+ Input Always RTTCTRL N/A Asynch Power/Other SLEWCTRL N/A Asynch Power/Other SLP# Low Asynch CMOS Input SMI# Low Asynch CMOS Input STPCLK# Low Asynch CMOS Input TCK High TAP Input TDI High TCK TAP Input TESTHI (S.EPP only) High Asynch Power/Other THERMDP N/A Asynch Power/Other TMS High TCK TAP Input TRST# Low Asynch TAP Input TRDY# Low BCLK AGTL+ Input Qualified During

Stop-Grant state Always NOTE: 1. Synchronous assertion with active TRDY# ensures synchronization Table 57. Input/Output Signals (Single Driver) Name Active Level Clock BSEL[1:0] Low Asynch Signal Group Power/Other Qualified Always BP[3:2] Low BCLK AGTL+ I/O Always BR0# Low BCLK AGTL+I/O Always A[31:3]# Low BCLK AGTL+ I/O ADS#, ADS#+1 ADS# Low BCLK AGTL+ I/O Always BPM[1:0]# Low BCLK AGTL+ I/O Always D[63:0]# Low BCLK AGTL+ I/O DRDY# DBSY# Low BCLK AGTL+ I/O Always DRDY# Low BCLK AGTL+ I/O Always LOCK# Low BCLK AGTL+ I/O Always REQ[4:0]# Low BCLK AGTL+ I/O ADS#, ADS#+1 Table 58. Input/Output Signals (Multiple Driver) Name 118 Active Level Clock Signal Group Qualified BNR# Low BCLK AGTL+ I/O Always HIT# Low BCLK AGTL+ I/O Always HITM# Low BCLK AGTL+ I/O Always PICD[1:0] High PICCLK APIC I/O Always Datasheet
