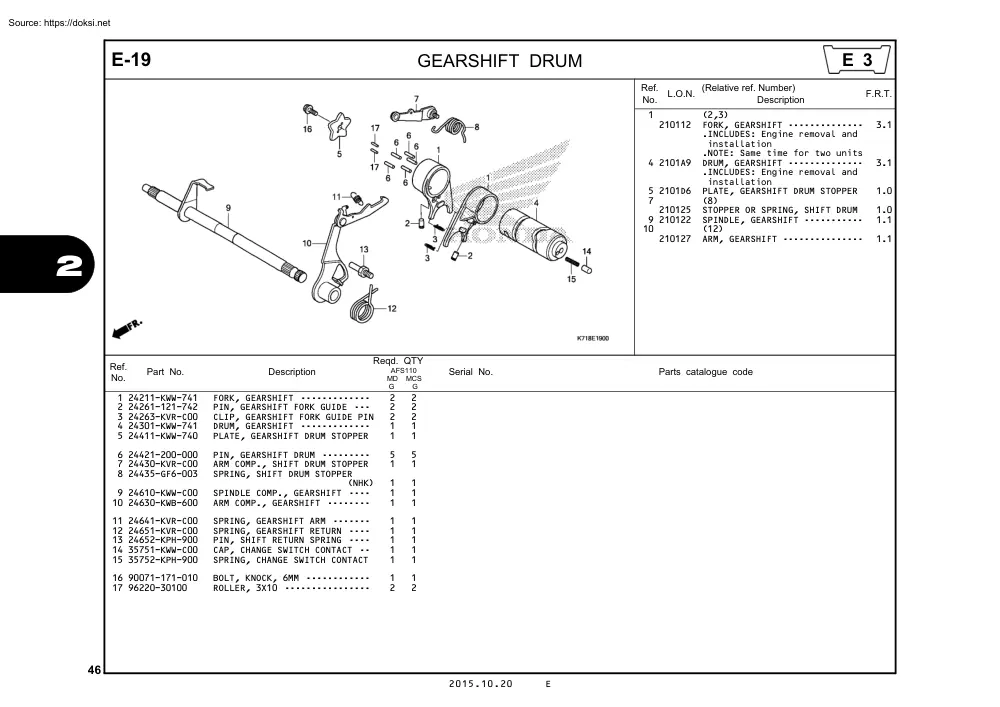

E-19 E 3 GEARSHIFT DRUM Ref. (Relative ref. Number) L.ON No. Description 1 (2,3) 210112 FORK, GEARSHIFT •••••••••••••• .INCLUDES: Engine removal and installation .NOTE: Same time for two units 4 2101A9 DRUM, GEARSHIFT •••••••••••••• .INCLUDES: Engine removal and installation 5 2101D6 PLATE, GEARSHIFT DRUM STOPPER 7 (8) 210125 STOPPER OR SPRING, SHIFT DRUM 9 210122 SPINDLE, GEARSHIFT ••••••••••• 10 (12) 210127 ARM, GEARSHIFT ••••••••••••••• 2 Ref. No. Reqd. QTY Part No. Description AFS110 MD MCS G G 1 24211-KWW-741 2 24261-121-742 3 24263-KVR-C00 4 24301-KWW-741 5 24411-KWW-740 FORK, GEARSHIFT ••••••••••••• PIN, GEARSHIFT FORK GUIDE ••• CLIP, GEARSHIFT FORK GUIDE PIN DRUM, GEARSHIFT ••••••••••••• PLATE, GEARSHIFT DRUM STOPPER 2 2 2 1 1 2 2 2 1 1 6 24421-200-000 7 24430-KVR-C00 8 24435-GF6-003 5 1 5 1 9

24610-KWW-C00 10 24630-KWB-600 PIN, GEARSHIFT DRUM ••••••••• ARM COMP., SHIFT DRUM STOPPER SPRING, SHIFT DRUM STOPPER  (NHK) SPINDLE COMP., GEARSHIFT •••• ARM COMP., GEARSHIFT •••••••• 1 1 1 1 1 1 11 24641-KVR-C00 12 24651-KVR-C00 13 24652-KPH-900 14 35751-KWW-C00 15 35752-KPH-900 SPRING, GEARSHIFT ARM ••••••• SPRING, GEARSHIFT RETURN •••• PIN, SHIFT RETURN SPRING •••• CAP, CHANGE SWITCH CONTACT •• SPRING, CHANGE SWITCH CONTACT 1 1 1 1 1 1 1 1 1 1 16 90071-171-010 17 96220-30100 BOLT, KNOCK, 6MM •••••••••••• ROLLER, 3X10 •••••••••••••••• 1 2 1 2 Serial No. Parts catalogue code 46 2015.1020 E F.RT 3.1 3.1 1.0 1.0 1.1 1.1
